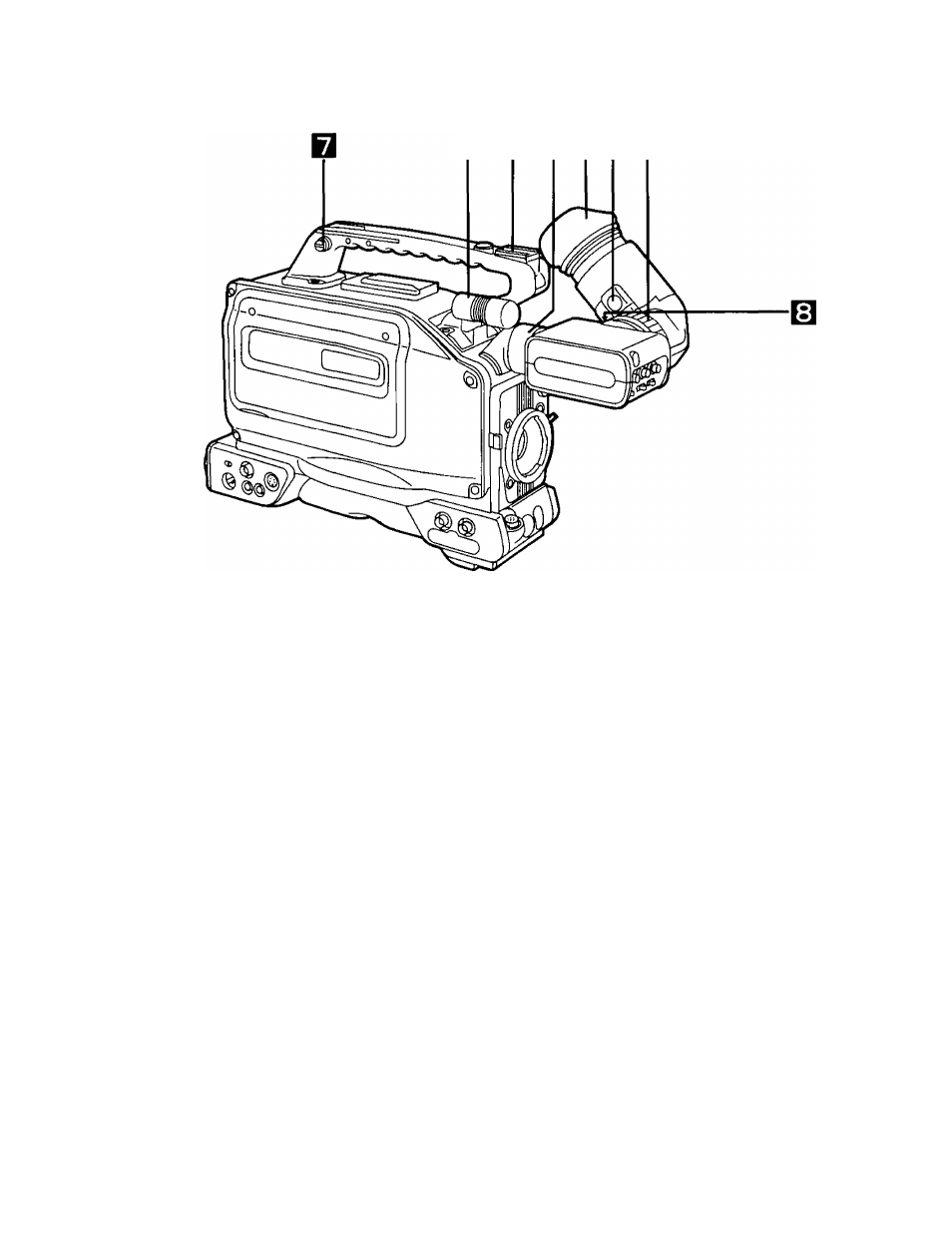

ввшш

Microphone

Accessory Hole

Viewfinder Clamp Ring

Eye Cup (Eyepiece)

Eye Cup Removal Lever

Viewfinder Stopper

Shoulder Strap Mount

Diopter Adjustment Control

Eyepiece front/back

adjustment ring

This is a compact, unidirectional type of microphone. However, by

replacing it with the optional holder, a highly directional microphone

can be attached instead.

This is for mounting video lights or other accessories.

This is used to attach and detach the viewfinder. By loosening the
clamp ring, the viewfinder can be rotated by 90° so that it is pointing

upward.

This is used to remove the eye cup. Move the lever in the direction
shown by the arrow and then simply slide the eye cup to remove it.

This is used to adjust the viewfinder’s position. Loosen the stopper
and move the viewfinder to the left or right to adjust its position.
After the position has been adjusted, tighten the stopper to hold the
viewfinder in place.

This is used to attach the shoulder strap provided with the product.

This is adjusted to the eyesight of the operator so that he or she can

clearly see the images on the viewfinder screen.

At the unlock position, the eyepiece can be moved further toward
the front or back. After moving the eyepiece to the desired position,

lock the ring to secure it there.
