SETUP SCREENS
NAV Mode Setup

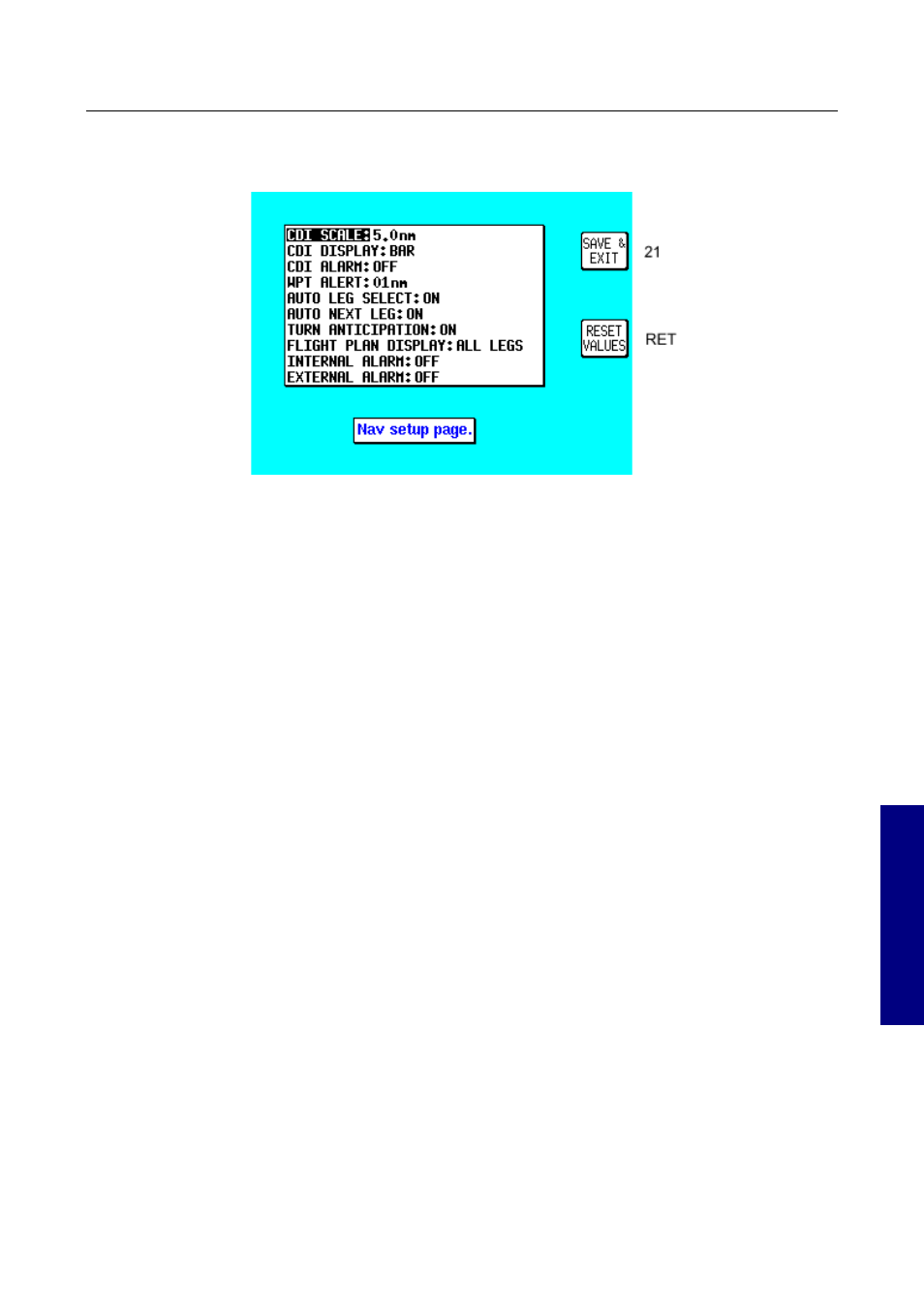

Screen 23: NAV Mode Customisation Screen
When you first enter this Screen the current settings are displayed with a cursor over the
words CDI SCALE. You then have to use the joystick to move the cursor up or down.
Once the cursor is over the heading you wish to alter, moving the joystick to the right will
move the cursor over to the set of options available for that heading.
The various settings available for each heading are listed below. The default settings are
those shown in the illustration above. To reset the values on this screen to their defaults,
press Key 3 RESET VALUES. This will reset the values on the displayed screen only. In
order to reset all user defined data globally, see the Clear Memory screens later in this
section.
CDI SCALE: 0.3 / 1.0 / 2.5 / 5.0 nm.
CDI DISPLAY: bar / numeric / off
CDI ALARM: on / off.
WPT ALERT: 1 / 2 / 3 / 4 / 5 / 6 / 7 / 8 / 9 / 10 / 11 / 12 / 13 / 14 / 15 / 16 / 17 / 18 / 19 / 20 nm.
AUTO LEG SELECT: on / off.
APPE
NDICES
AUTO NEXT LEG: on / off.
TURN ANTICIPATION: on / off
FLIGHT PLAN DISPLAY: all legs / active leg.
INTERNAL ALARM: on / off.
EXTERNAL ALARM: on / off.
CDI SCALE: This enables you to choose which of the given distances you want the unit
to use as the setting for the full-scale deflection of the Course Deviation Indicator (CDI) in
NAV mode
CDI DISPLAY: This allows you to set the CDI display in Map Mode to show either a bar
graph, or a numeric read-out of course deviation or to be switched off. If selected OFF,
the CDI is no longer shown while you are in Map Mode.
CDI ALARM: When selected ON this produces an audible alarm to tell you when full-
scale deflection of the CDI has been reached. If you choose to set this to OFF, you disable
this alarm.
WPT ALERT: You can use this feature to set the distance away from a flight plan turning
point, or final destination, at which you wish the audio and visual arrival alarm to be
Rev 9 Jul 2006 A-7 Skymap/Tracker IIIC Pilot's Guide
