EHSI Displays
selecting co-pilot ’ s navigation
system or co-pilot selecting pilot ’ s
navigation system. The 1-2 push
button will not be active if the
system configuration does not
support two of the same type
NAV sensors.
Green annunciations indicate an
on-side approach NAV system or
an enroute NAV system which
has been approved for approach
use is being displayed. Yellow
indicates the cross-side system
has been selected. Cyan annun-
ciations apply to on-side non-
approach LNAV systems. These
color codes apply to the NAV
source annunciator, CRS pointer,
deviation bar, CRS line in MAP
mode, CRS, distance, ground-
speed, time-to-station, drift angle
pointer and vertical deviation
p o i n t e r .
Software release 06 incorporated
the ability to interface with the
TACAN version of the KNS 8 1
and annunciate TCN when the
K N S 81 is in the TACAN mode
of operation.
If both sides select the same
navigation source, (i.e., pilot and
co-pilot select VOR 2) a yellow
box is placed around the naviga-
tion source annunciator on both
E H S I
‘ s .
If both sides select their respec-
tive cross-side navigation source
(i.e., pilot selects system 2, co-
pilot selects system 1) then both
NAV source annunciators will be
yellow with no yellow box.
N o t e : Same source annuncia -
tion rules also apply to the
heading source.
4.1.3 Issued 8/10 SW 04/05/06/07/08/09/10/11/12/13/14/15/16
SYMBOLIC AIRCRAFT
The orange symbolic aircraft pro-
vides a visual reference of the
aircraft present position in rela-
tionship to the deviation bar.
N o t e : Starting with software 08
a configuration option is avail -
able for the display of Fixed
wing or Rotary Wing symbolic
aircraft.
Figure 4.1.2

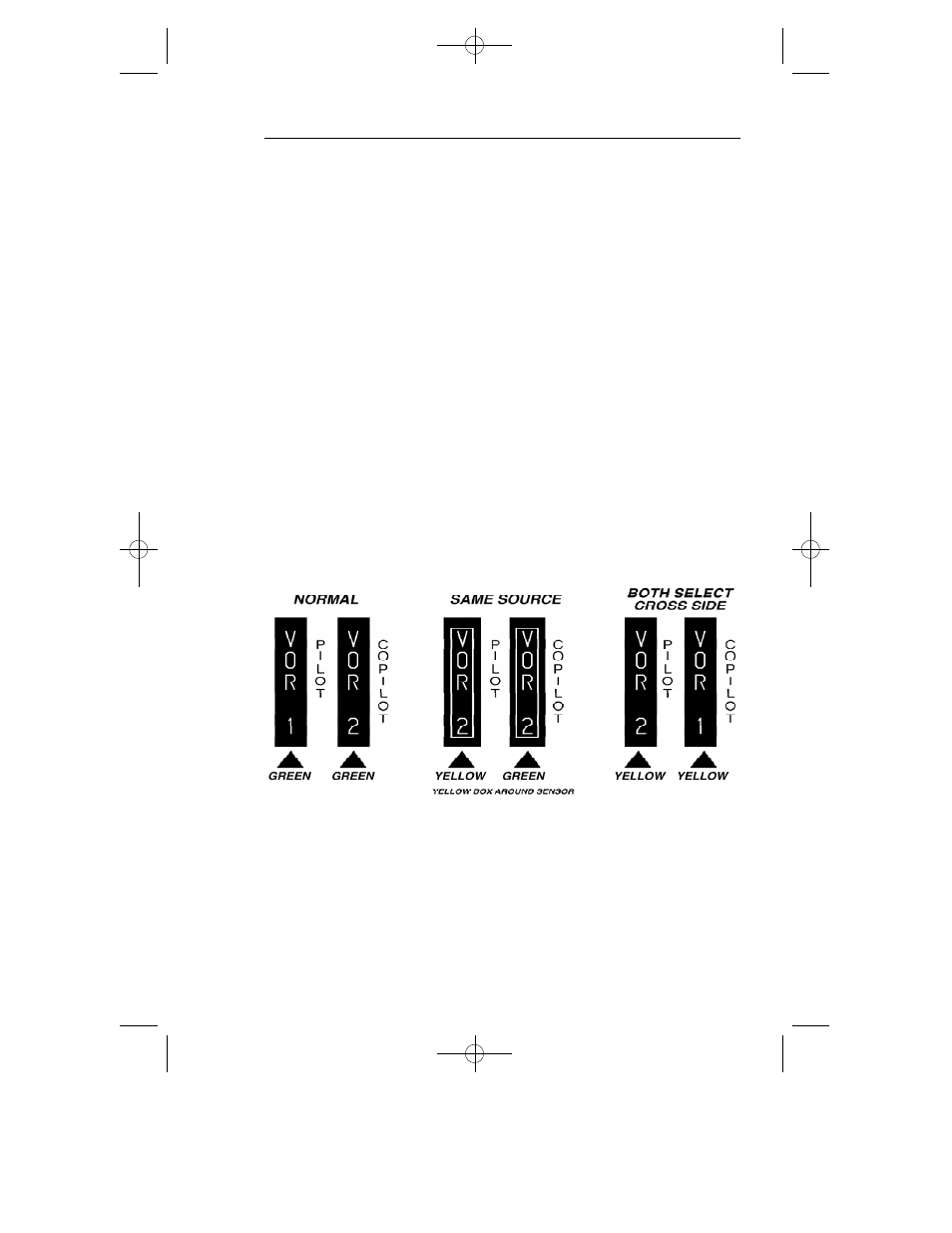

SAME NAVIGATION SOURCE SELECTION ANNUNCIATION
