EADI Operation
2.2.1 Issued 8/10 SW 04/05/06/07/08/09/10/11/12/13/14/15/16
This section, EADI Operation, of
the EHI 40/50 Pilot
’ s Guide
describes the EADI operational
controls of the CP 467 and CP
470 used with an ED 462 or ED
551/A EADI.
EADI controls are limited to three
basic functions: EADI display
brightness adjustment, DH (deci-
sion height) set and Radio Alti-
tude test.
For clarification on a particular
display or operational feature
refer to section IV, EADI DIS-
PLAYS or section V, OPERAT-
ING INSTRUCTIONS.

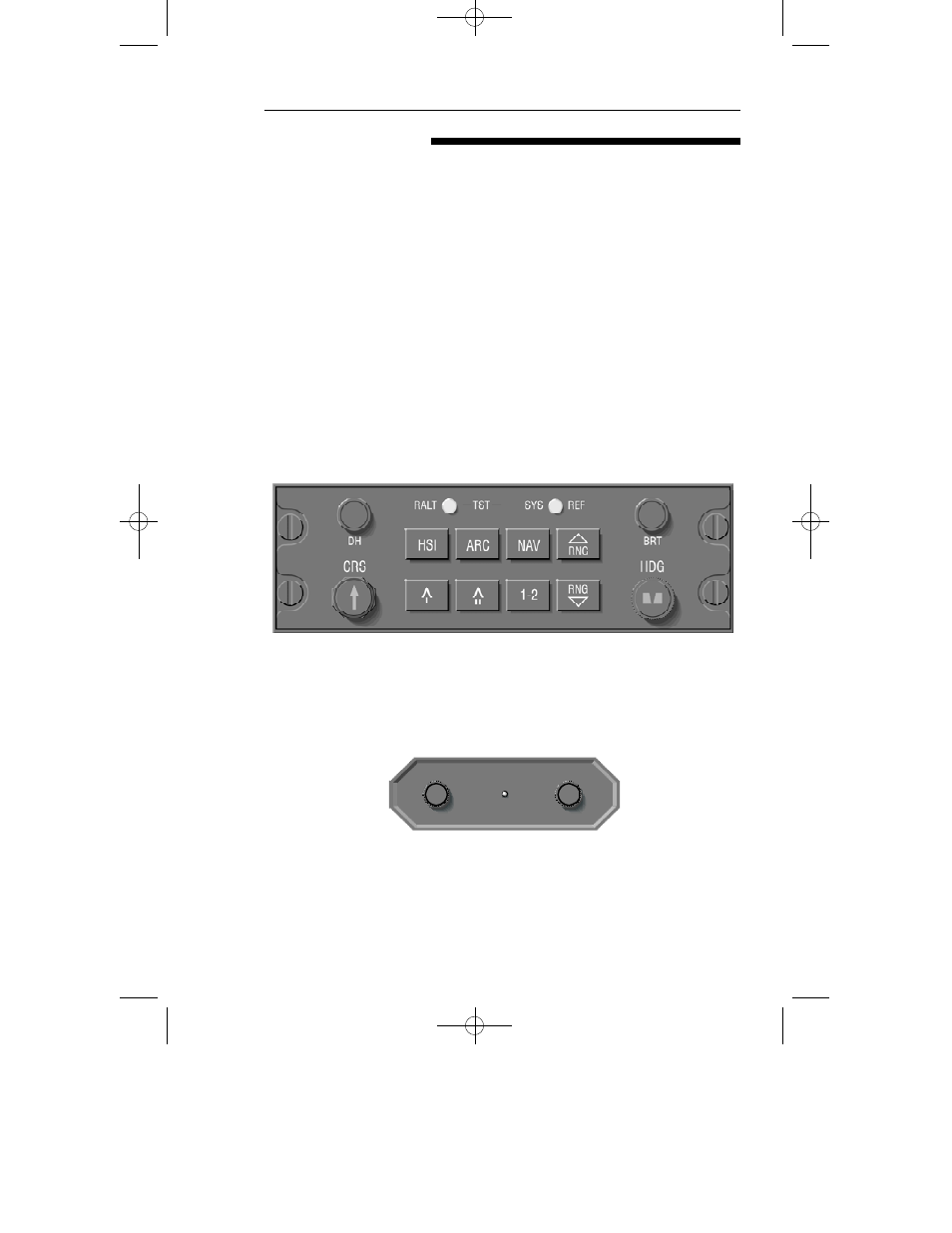

The CP 467 shown in Figure
2.2.1 is used in EFIS installations
utilizing an ED 462 or ED 5 5 1 / A
as the EHSI. The CP 4 7 0
shown in Figure 2.2.2 is used in
EFIS installations utilizing the ED
461 EHSI control display unit
with an ED 462 EADI.
EADI OPERATION
EADI DETAILED OPERATING CONTROLS
Figure 2.2.1
CP 467 EFIS CONTROL PANEL
Figure 2.2.2
CP 470 EADI CONTROL PANEL
DH
BRT
ADI
RALT
TST
SET
