EADI Displays
Configuration options selectable
at the time of installation and cer-
t i f i c a t i o n :
o
Display of no Fast/Slow or Col-
lective scale.
o
Display of a single dot
Fast/Slow scale.
o
Display of a single dot Collec-
tive scale.
o
Display of a two dot Fast/Slow
scale, beginning with software
version 09.
4.2.13 Issued 8/10 SW 04/05/06/07/08/09/10/11/12/13/14/15/16
or

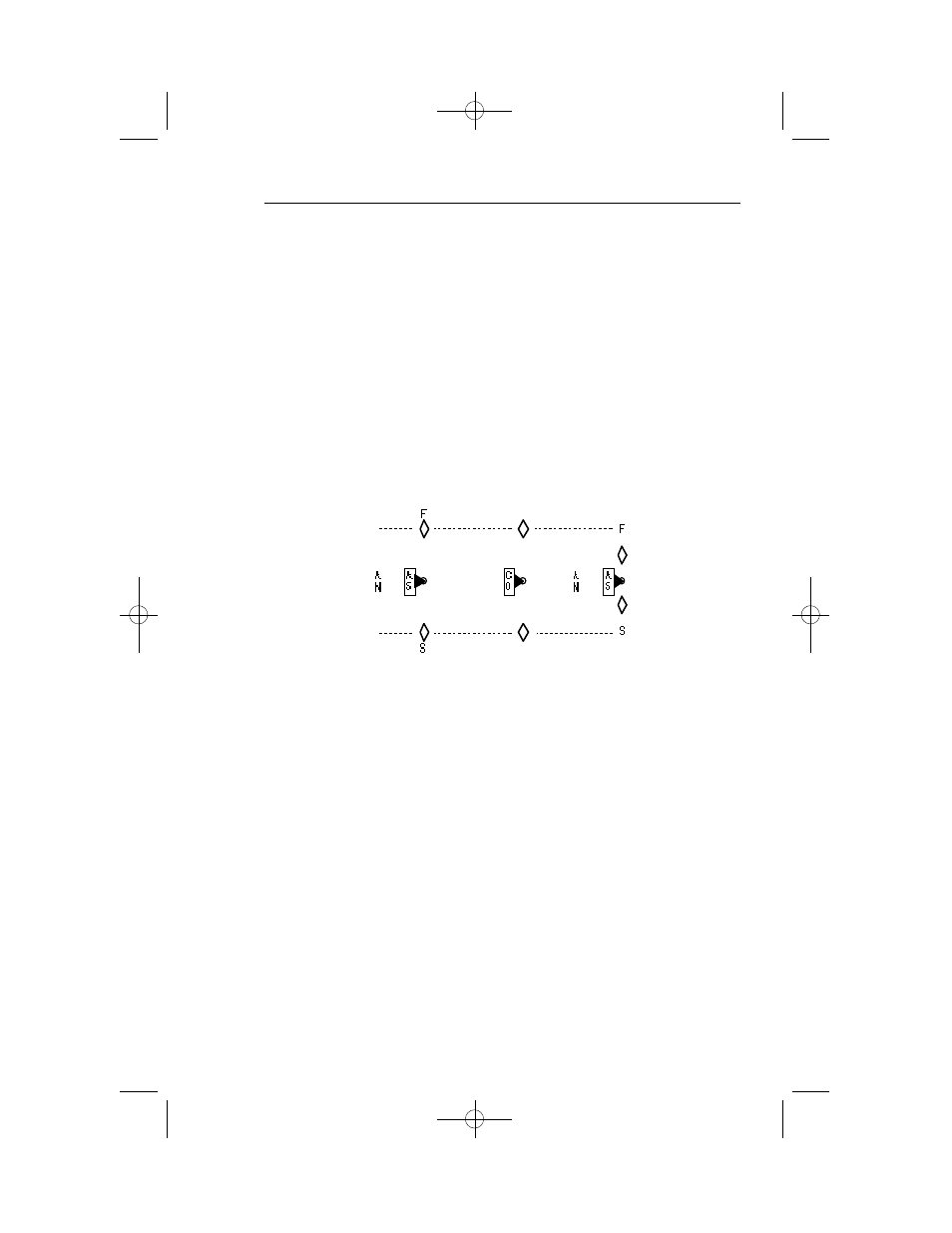

+ Full Scale
- Full Scale
SINGLE DOT
FAST/SLOW
FAST/SLOW AND COLLECTIVE DISPLAYS
or
TWO DOT
FAST/SLOW
(SW 09 and above)
CO LLECTIVE
MACH DISPLAY
o
MACH value may be displayed
on the EADI beginning with soft-
ware version 10. The MAC H
value is displayed in the lower left
corner of the EADI as a white
three digit number followed by
the letter M. For example: 1.23M
Configuring the EFS to display
MACH value will prevent the dis-
play of a fast/slow or collective
scale. Invalid, missing, or No
Computed Data (NCD) for the
MACH value will cause a flag
condition (red dashes).
RATE OF TURN DISPLAY
o
An optional display item,
selectable at the time of installa-
tion and certification, if config-
ured, will be displayed at the bot-
tom center of the EADI. The rate
of turn scale is composed of
three evenly spaced unfilled
white rectangles. The rate of turn
pointer is an equally sized white
filled rectangle balanced atop a
smaller white filled rectangle.
The rate of turn indicator will not
be displayed when the composite
reversionary mode is selected for
d i s p l a y .
The pointer is green unless the
collective option is selected, then
it may be either green or magen-
ta to match the color configured
for the flight director command
bars. Three pointer styles are
also provided to match the con-
figured GS pointer style.
If invalid or failed sensor data is
received the deviation pointer
and scale are removed and a
RED X annunciated.
