EADI Displays
GLIDESLOPE/VERTICAL
NAVIGATION
When the selected primary NAV
sensor is ILS, MLS or LNAV with
VNAV selected, a stationary
white vertical deviation scale will
appear on the right or left side of
the EADI display as configured at
the time of installation and certifi-
cation. This scale provides a ref-
erence for the vertical deviation
pointer. The deviation pointer
moves in relation to the scale to
indicate glide path center with
respect to aircraft position.
When the on-side sensor is
selected for display, the deviation
pointer is green in color. When
the off-side sensor is selected for
display, the deviation pointer
changes to yellow alerting the
pilot that he has selected his off-
side nav sensor.
If the selected sensor is ILS or
MLS, a “GS” (or “GP” for MLS
with software 08 and higher. It
can be either GP or GS after
software 08. The configuration is
selectable.) will be displayed in
the pointer. “VN” will be annunci-
ated if the selected sensor is an
LNAV with VNAV selected. If the
selected sensor is “GPS”, a GP
will be displayed in the vertical
pointer
during a GPS
approach,(with SW15 or higher
and configured for varible
V N A V ) .
Additional configuration options
selectable at the time of installa-
tion and certification:
o
Declutter GS on Back Course,
allows the vertical deviation scale
to be in view at all times or only
when the selected course is within
1 0 5 degrees of the aircraft heading.
o
Vertical Scale Side, allows the
vertical deviation scale to be dis-
played on either the right or left
side of the EADI and EHSI display.

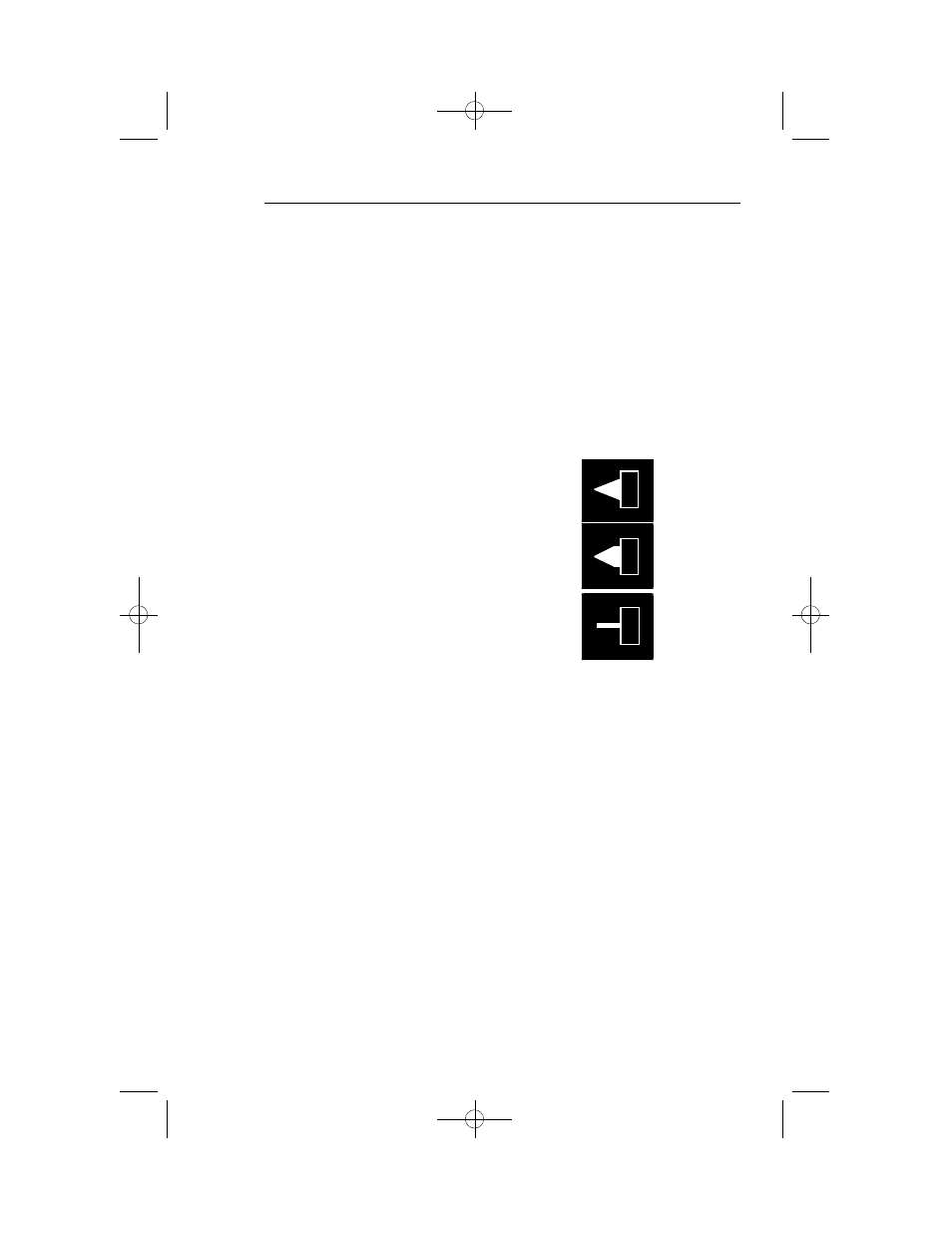

Vertical Pointer Type, allows the
vertical pointer to be displayed as
one of three options:
o
o
o
o
Vertical pointer annunciation
for MLS can be configured as
"GP" beginning with software 08.
EADI OFF-SIDE ILS/MLS/GPS
o
A configuration option
selectable at the time of installa-
tion and certification allows dis-
play of the off-side ILS/MLS/GPS
data on the EADI while the EHSI
is displaying on-side data. All
deviation data and symbology
are displayed as typically defined
by the EFS 40/50 operational
characteristics. On-side informa-
tion displayed on the EHSI will be
displayed in green and the off-
side information displayed on the
EADI will be displayed in yellow.
4.2.11 Issued 8/10 SW 04/05/06/07/08/09/10/11/12/13/14/15/16
