MFD Operation
2.4.1 Issued 8/10 SW 04/05/06/07/08/09/10/11/12/13/14/15/16
The EFS 40/50 Multi Function
Display Control Panel provides
for display of a more meaningful
variety of data than was previ-
ously accessible on EFIS MFD
displays. In fact, the EFS 4 0 / 5 0
MFD may be used as a second
EHSI by the pilot or copilot, pro-
viding them the ability to cross
check their primary EHSI, pre-
view or set up for a potential nav-
igation scenario, and still function
as a primary weather radar or
LNAV map display.
The CP 469, MFD control panel,
provides control of the selection
of Nav source selection, display
format and course selection.
Starting with software release 08,
the CP 469A MFD control panel
replaces the CP 469 and pro-
vides additional control of Check-
list, Joystick and TCAS functions.
Weather radar control functions
and mode selection are per-
formed by the CP 466A/B, an
independent weather radar con-
trol panel.
MFD OPERATION

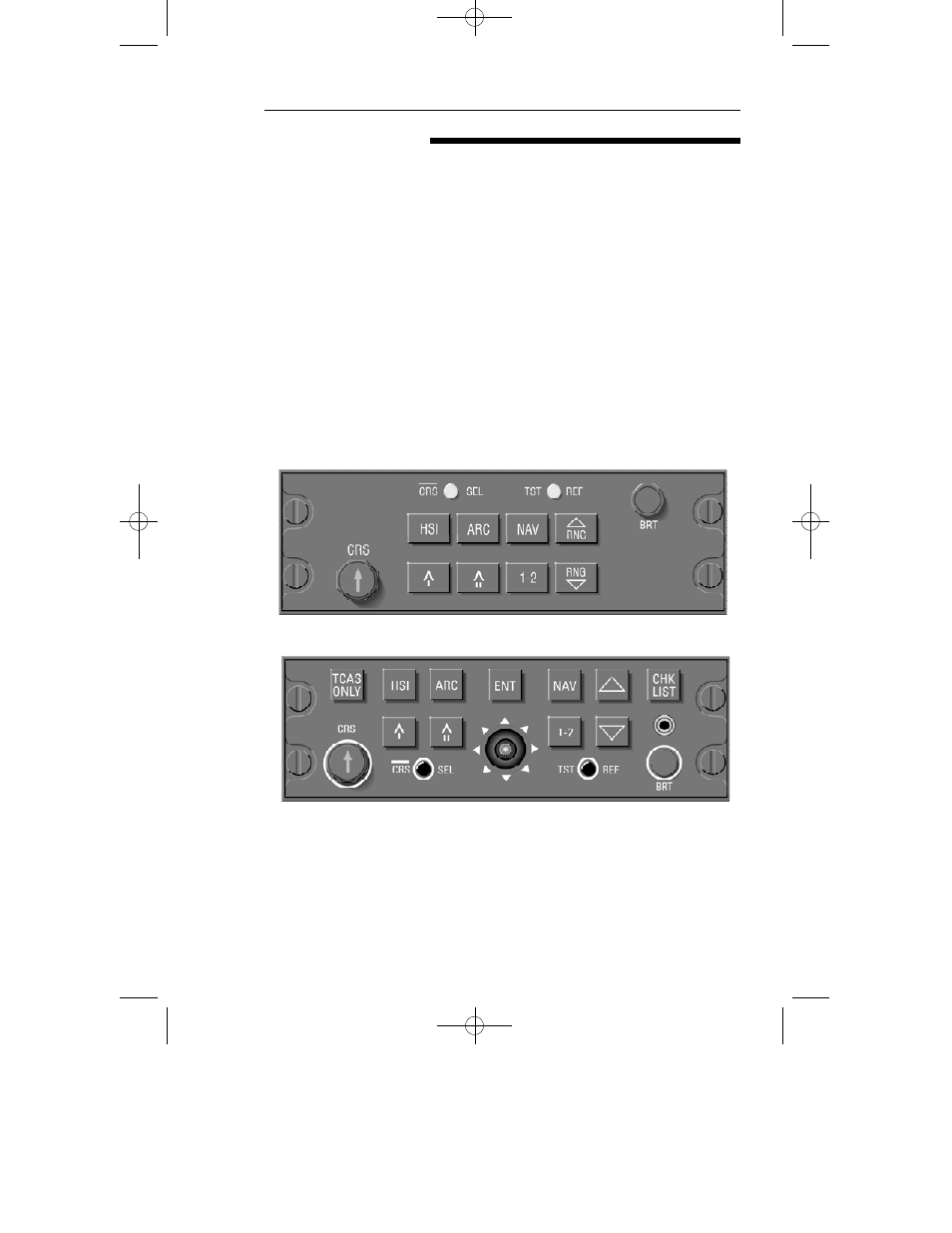

MULTI FUNCTION DISPLAY CONTROL PANEL
CP469
Note: Software levels 04, 05, 06 and 07 do not support Checklist or
TCAS functions.
CP 469A
WITH CHECKLIST & JOYSTICK
