EHSI Operation

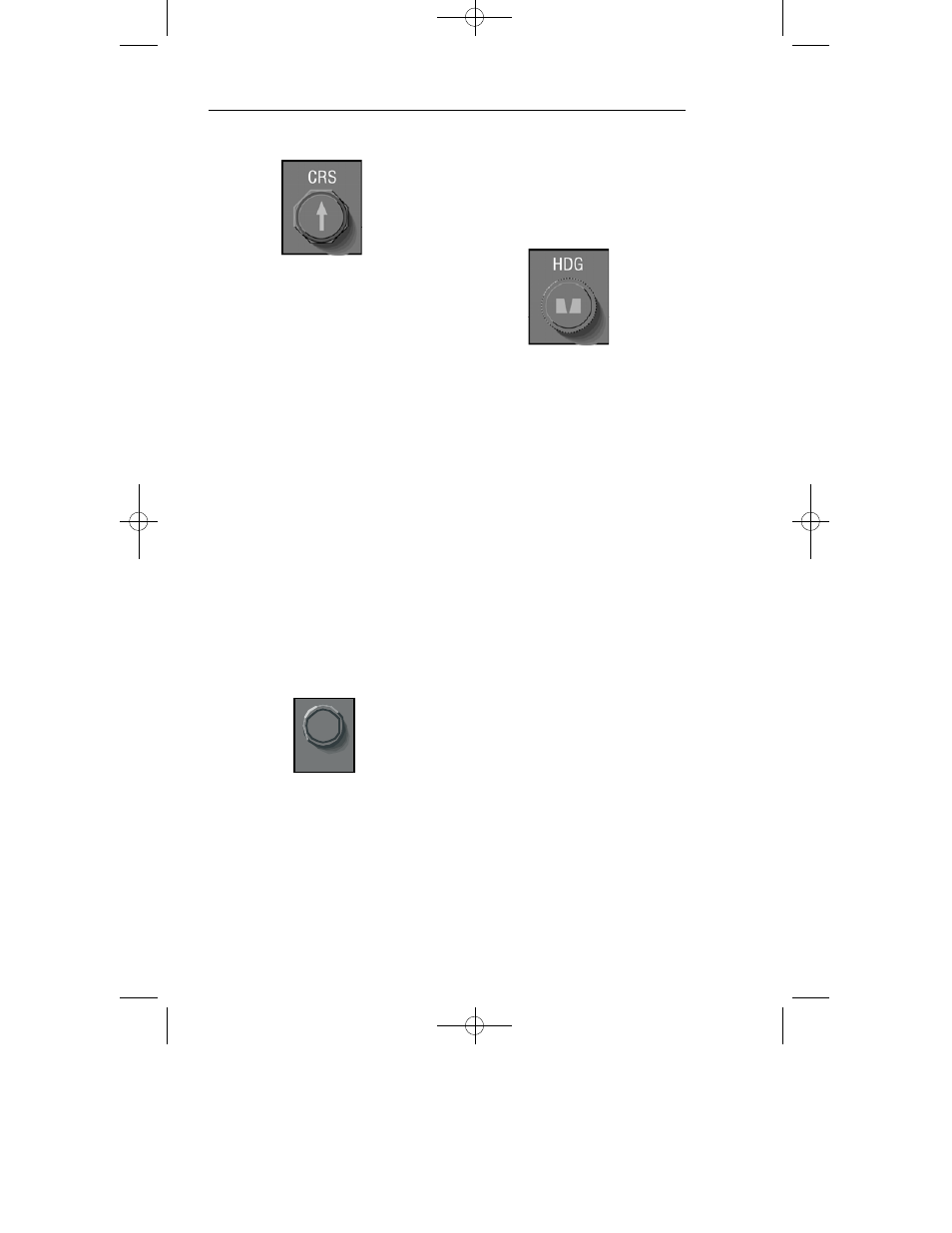

COURSE SELECT KNOB
Rotation of the COURSE
SELECT knob allows the course
pointer and digital course to be
set at the desired course.
The ED 461, CP 467 and CP
468 provide a ”DIRECT TO” fea-
ture. Pushing the center of the
E D 461 Course Select knob or
pulling the CP 467 or CP 4 6 8
COURSE SELECT knob will
cause the course pointer and dig-
ital course readout on the EHSI
to slew to the direct course to the
selected NAVAID or active way-
p o i n t .
If the selected NAV sensor is an
LNAV system, it may have
modes of operation that control
the selected course.
During these LNAV modes of
operation
the EFS 4 0 / 5 0
COURSE SELECT knob will be
inactive.
HEADING SELECT KNOB
Rotation of the HEADING
SELECT knob allows the head-
ing bug on the EHSI to be rotated
to the desired heading.
The ED 461, CP 467 and CP
468 provide a “HEADING
SYNC” feature. Pushing the cen-
ter of the ED 461 heading select
knob or pulling the CP 467 or
C P 468 HEADING SELECT
knob will cause the heading bug
on the EHSI to slew to the pre-
sent aircraft heading (lubber line).
2.1.10 Issued 8/10 SW 04/05/06/07/08/09/10/11/12/13/14/15/16
DISPLAY BRIGHTNESS CONTROL
The BRT knob controls the dis-
play brightness.
Note: The display brightness
control provides full range dim -
ming to allow night operation in
no- or low-light situations. The
lower limit of the display bright -
ness may appear as an inoper -
ative tube during normal day -
light operation. It is therefore
advisable to check the BRT
knob setting during preflight
test.
To ensure maximum display
tube life, it is highly recom -
mended that the display be
operated at the lowest accept -
able brightness level.
BRT
