PRODUCT SUPPORT 800.927.2120 8am - 6pm EST

RW ATLAS

Marquee Three Hole Deck Mounted Lavatory

Faucet

INSTALLATION GUIDELINES

Page 2 of 3


8.7.2012

These guidelines have been prepared for the professional contractor to aid in the installation of:
RW ATLAS MARQUEE DECK MOUNTED LAVATORY FAUCET WITH METAL SIDE MOUNT LEVER
HANDLES (STYLE# RWLS10)
All dimensions are based on original specification and are subject to change and variation.
Please consult your Design Associate for current specifications.
SEE SERVICE PART DOCUMENT FOR PART ORDERING, AVAILABLE ON WATERWORKS.COM


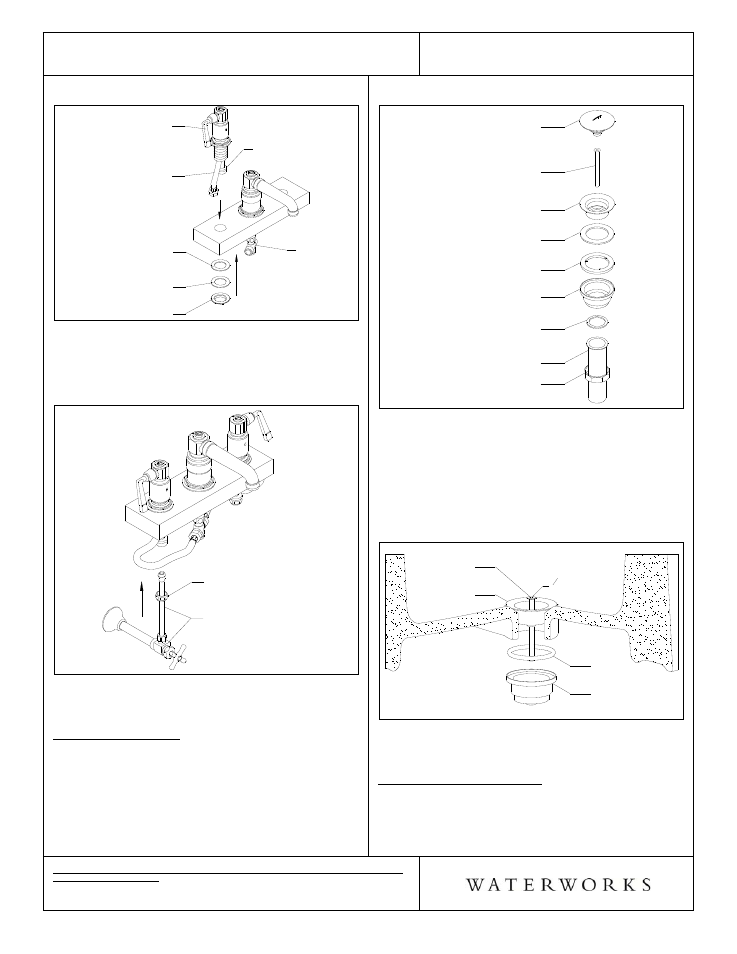

Figure - 02

HANDLE

ASSEMBLY

INLET

TUBE

OUTLET

HOSE

HANDLE RUBBER

WASHER

HANDLE PLASTIC

WASHER

HANDLE NUT

SPOUT
TEE

7. Attach outlet hose to spout tee.

8. Attach supply kit [sold separately] to inlet supply

tube on handle assembly, using the supply nut. See
figure 3.

Figure - 03

SUPPLY KIT
[SOLD SEPARATELY]

SUPPLY NUT

9. Repeat steps 4-8 to install the second handle

assembly.

DRAIN INSTALLATION:

10. Unthread and remove the drain stopper and lower

drain body from the drain flange. The foam washer
can be discarded then remove the tailpiece from the
lower drain body. See Figure - 04.




Figure - 04

DRAIN STOPPER

SCREW

DRAIN FLANGE

FOAM WASHER

RUBBER GASKET

LOWER DRAIN BODY

TAILPIECE

RUBBER WASHER

TAILPIECE

NUT

11. Set the drain flange in the lavatory drain opening

using putty or a clear adhesive silicone depending
on the mounting surface material.* Re-install the
lower drain body with the screw, making sure to use
the rubber gasket provided and tighten until fully
secured. Putty or a clear adhesive silicone may be
used to ensure a water-tight seal between the
gasket and lavatory.* See Figure - 05.

Figure - 05

SCREW

DRAIN

FLANGE

RUBBER
GASKET
LOWER
DRAIN
BODY

5

32

" or 4mm

Hex Key

12. Re-install the tailpiece using the washer and nut

then re-install the drain stopper.

INSPECT THE INSTALLATION:

13. Remove the flow restricting aerator using a flat head

screwdriver or a coin, then carefully open the hot
and cold valves to flush out any debris in the supply
lines. See Figure 1.
