PRODUCT SUPPORT 800.927.2120 8am - 6pm EST

FORMWORK
Low Profile Three Hole Wall Mounted Lavatory Faucet

Installation Guidelines

Page 4 of 4

Rev - 01


4.7.2014

These guidelines have been prepared for the professional contractor to aid in the installation of:
FORMWORK LOW PROFILE THREE HOLE WALL MOUNTED LAVATORY FAUCET WITH METAL KNOB HANDLES
(STYLE No. FMLS60) & METAL LEVER HANDLES (STYLE No. FMLS70)
All dimensions are based on original specification and are subject to change and variation.
Please consult your Design Associate for current specifications.

DRAIN INSTALLATION:

¾ See Figure - 11 for Steps 15 & 18

15. Remove the DRAIN FLANGE from LOWER DRAIN

BODY and remove the RUBBER GASKET.

16. Set the DRAIN FLANGE in the drain hole using putty

or a clear adhesive silicone depending on the
mounting surface material.*

17. Making sure the RUBBER GASKET and PLASTIC

WASHER are on the LOWER DRAIN BODY, thread the
LOWER DRAIN BODY onto the DRAIN FLANGE.
Securely tighten the LOWER DRAIN BODY, making
sure the RUBBER GASKET makes a full seal on the
underside of the lavatory. Putty or a clear adhesive
silicone may be used to ensure a water tight seal
between the RUBBER GASKET and lavatory.*

18. Attach the TAILPIECE to the LOWER DRAIN BODY

using the DRAIN NUT, making sure the RUBBER
WASHER is in between the LOWER DRAIN BODY and
TAILPIECE.

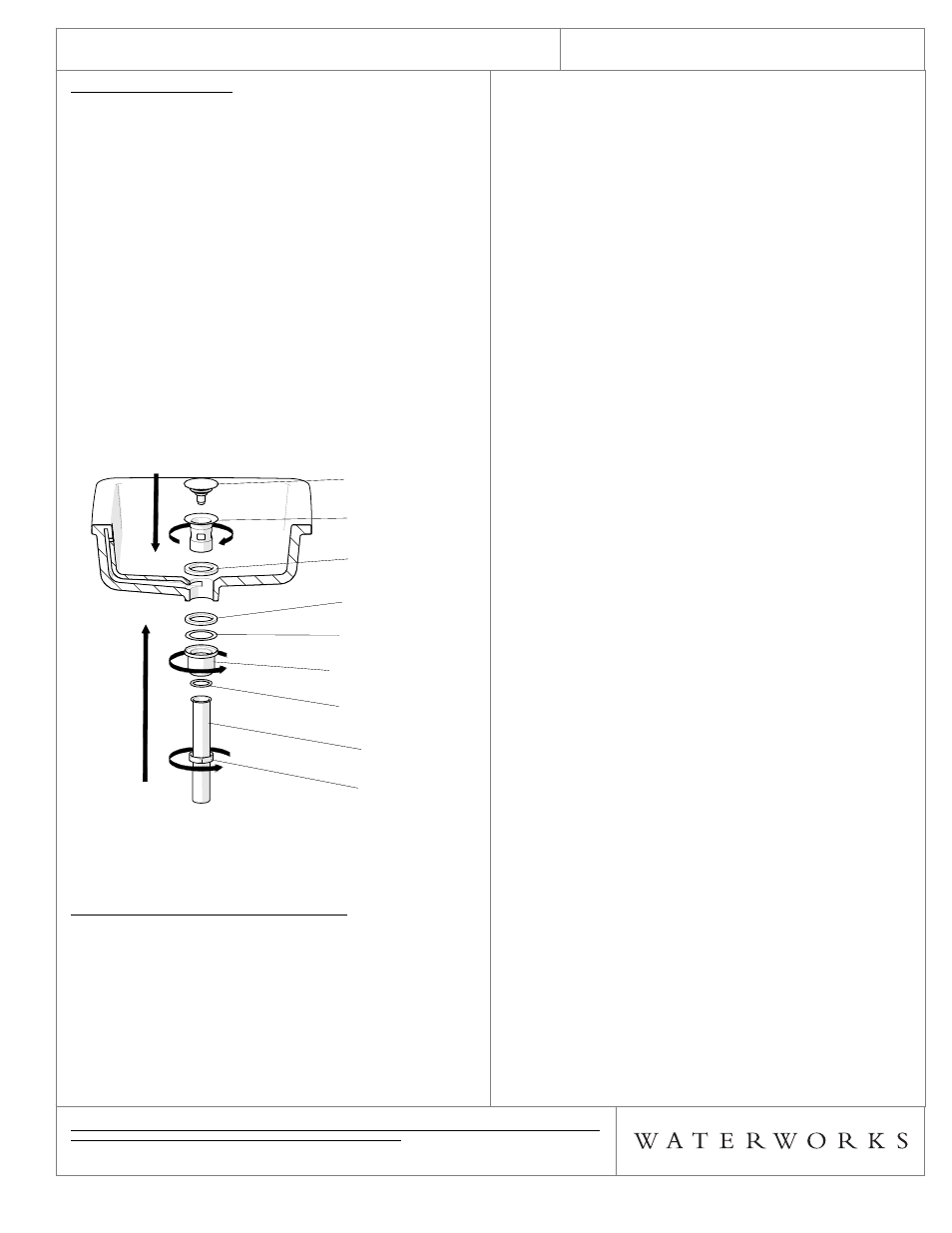

FIGURE - 11

19. Connect the TAILPIECE to the P-TRAP (SOLD

SEPARATELY).

FINISH & INSPECT THE INSTALLATION:

20. Remove the AERATOR using the tool provided then

turn on the water supply to flush out any debris in the
supply lines. Operate the HANDLES to ensure they
are functioning properly.


21. Inspect all connections for leaks.

22. Close the drain and fill the sink with water to make

sure the DRAIN STOPPER and GASKET operate and
seal properly.

DRAIN NUT

TAILPIECE

RUBBER WASHER

LOWER DRAIN BODY

PLASTIC WASHER

RUBBER GASKET

FOAM GASKET

DRAIN FLANGE

DRAIN STOPPER

DRAIN NUT

TAILPIECE

RUBBER WASHER

LOWER DRAIN BODY

PLASTIC WASHER

RUBBER GASKET

FOAM GASKET

DRAIN FLANGE

DRAIN STOPPER

23. Re-install the AERATOR

¾ If further assistance is required, please contact

Product Support at 1-800-927-2120 Ext 2 Monday
through Friday, 8am - 6pm EST.

¾ See the service part document for parts ordering,

available on WATERWORKS.COM.


* Putty contains oil and can cause permanent

discoloration on certain materials such as marble,
granite and any porous surface.
