PRODUCT SUPPORT 800.927.2120 8am - 6pm EST

FORMWORK
Low Profile Three Hole Wall Mounted Lavatory Faucet

Installation Guidelines

Page 3 of 4

Rev - 01


4.7.2014

These guidelines have been prepared for the professional contractor to aid in the installation of:
FORMWORK LOW PROFILE THREE HOLE WALL MOUNTED LAVATORY FAUCET WITH METAL KNOB HANDLES
(STYLE No. FMLS60) & METAL LEVER HANDLES (STYLE No. FMLS70)
All dimensions are based on original specification and are subject to change and variation.
Please consult your Design Associate for current specifications.

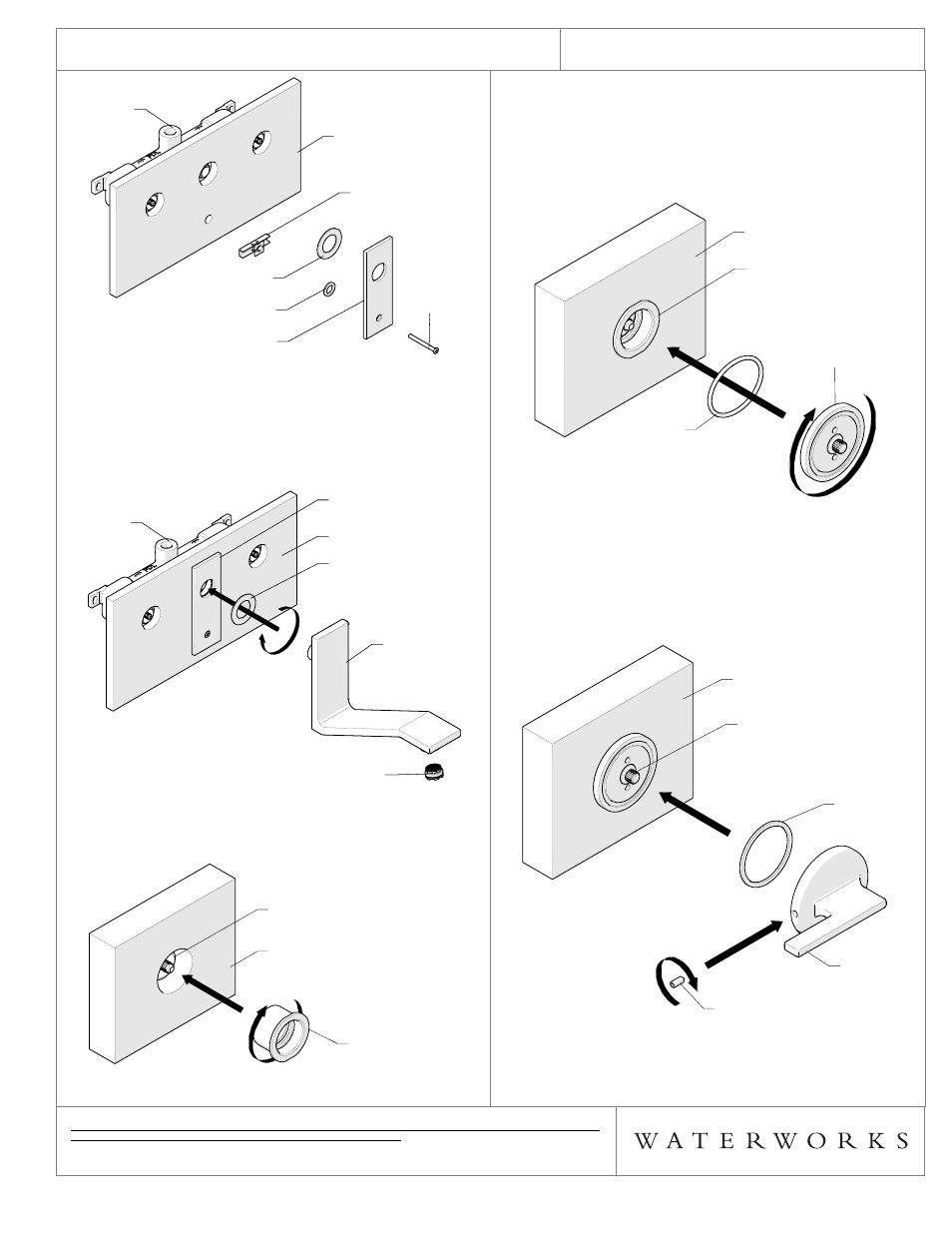

FIGURE - 06

10. Thread the SPOUT onto the NIPPLE making sure the

RUBBER WASHER is between the SPOUT and the
ESCUTCHEON as shown in Figure - 07.

¾ NOTE: The SPOUT has a 2.2gpm AERATOR installed.

FIGURE - 07

11. Thread the TRIM CONNECTOR onto the THREADED

TUBE as shown in Figure - 08.

FIGURE - 08
