4
Setting up the Computer
If you choose to have a third party setup the computer and install the Image Capture System
software verify that the system works properly, sign and date the warranty card, and return the
card to Welch Allyn.

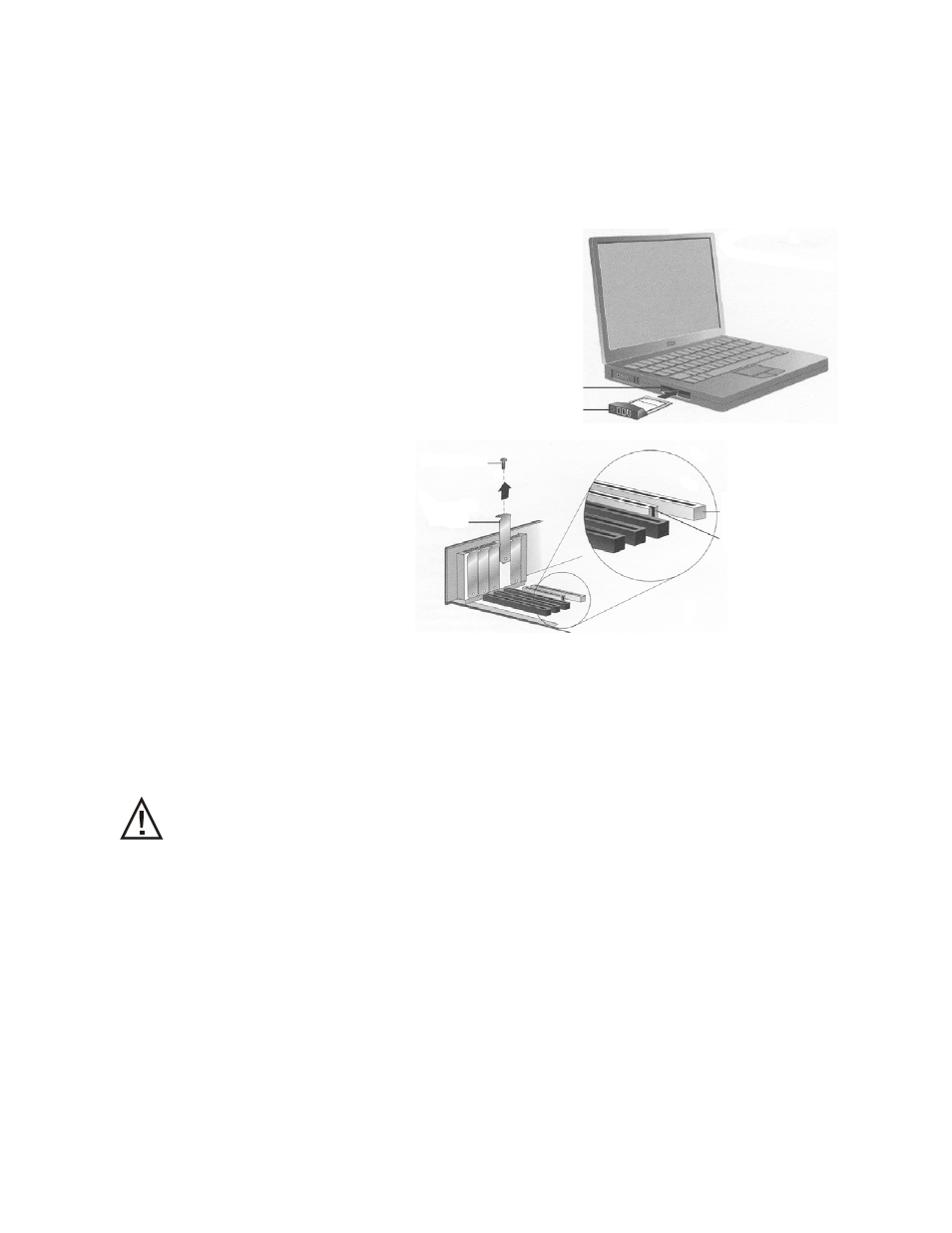

Installing the PCMCIA Card REF 88802
1. With your notebook computer on, insert
the FireConnect for Notebooks adapter in
the PCMCIA slot.
2. Windows
®
automatically detects the
FireConnect for Notebooks adapter and
installs the drivers. Your installation is
complete.
Installing the PCI Card REF
88801
Installing Your PCI Card
1. Touch a grounded metal
object (such as the exposed
metal parts on the back of
the computer) to discharge
any static electricity build-up
before handling the card.
2. Turn off power to the computer and disconnect the power cord. Open the computer cabinet,
following the manufacturer’s instructions.
3. Locate an unused 32-bit or 64-bit PCI expansion slot and remove the expansion slot cover.
Save the slot cover screw for use in Step 6.
4. Remove the card from the antistatic packaging.
5. Insert the card into the PCI expansion slot. Depending on the tightness of the PCI slot, use
gentle but firm force to insert the card. When installed properly, the card should appear level
with the expansion slot.
6. Secure the card bracket with the slot cover screw you removed in Step 3.
7. Close the computer cabinet, reattach the power cord, then turn on the computer.
Installing the Driver
1. During startup, Windows automatically detects the new host adapter and loads an
embedded driver.
2. Restart your computer if you are prompted to do so.
3. Go to the Windows Device Manager and check to see if the host adapter is installed
correctly under the IEEE-1394 Bus Host Controller section.
Use the edges or metal bracket to hold the host adapter. Do not touch the gold
connector or any components on the card.
PCMCIA slot
FireConnect™
for Notebooks
adapter
64-bit PCI slot
32-bit PCI slot
Slot cover screw
Expansion
slot cover
