4. The Hardware tab allows the System Administrator to select the video device, video inputs
(the Image Capture System does not use video inputs), and COM port (when applicable). If
all hardware is connected correctly, the computer will automatically detect the video devices
connected to it.
5. Select the appropriate Video Device. Once you choose the correct device, streaming video
appears on the computer screen.
6. Setting the COM port value from 1 to 8 will require a shutdown and restart of the Image
Capture System application.
7. Click the Save button to keep the new settings or the Cancel button to keep the previous
settings. Clicking either button brings the System Administrator back to the Select Session /
Create Patient screen.
8. Go to “Using the Welch Allyn Image Capture System" and follow the directions to capture an
image. If you can capture an image with the video colposcope button, the system is working
properly.
Application User
Any user that is logged into the Welch Allyn Image Capture System can change or update the
Capture Image Time Delay, Image File Format, Timestamp, or Print Filename settings.
1. Login to the Welch Allyn Image Capture System. The password brings you to the Select
Session / Create Patient screen.

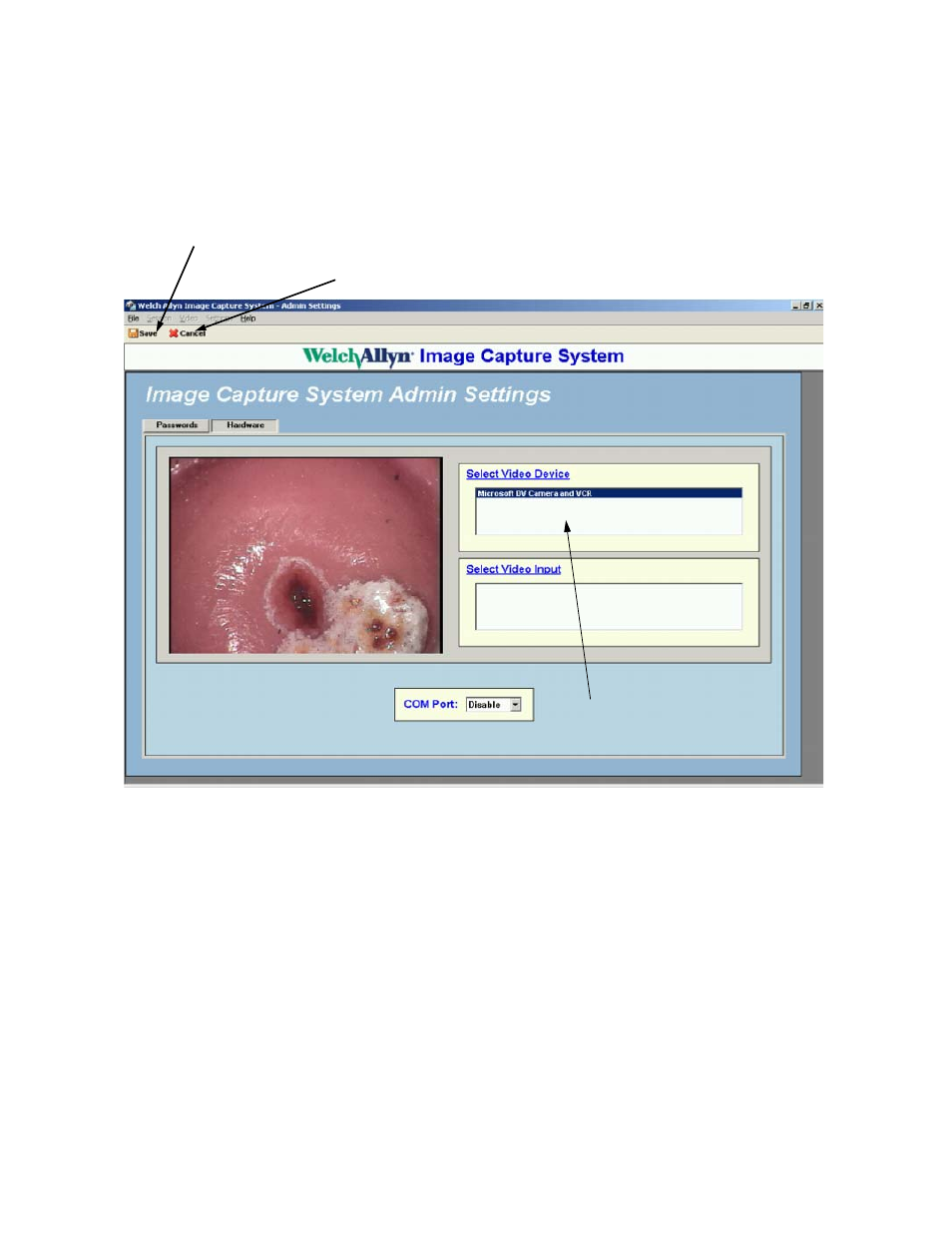

Save button keeps new settings.
Cancel button keeps previous settings.
These devices are automatically
detected.
