Welch Allyn Image Capture System - User Manual User Manual
Page 10
6

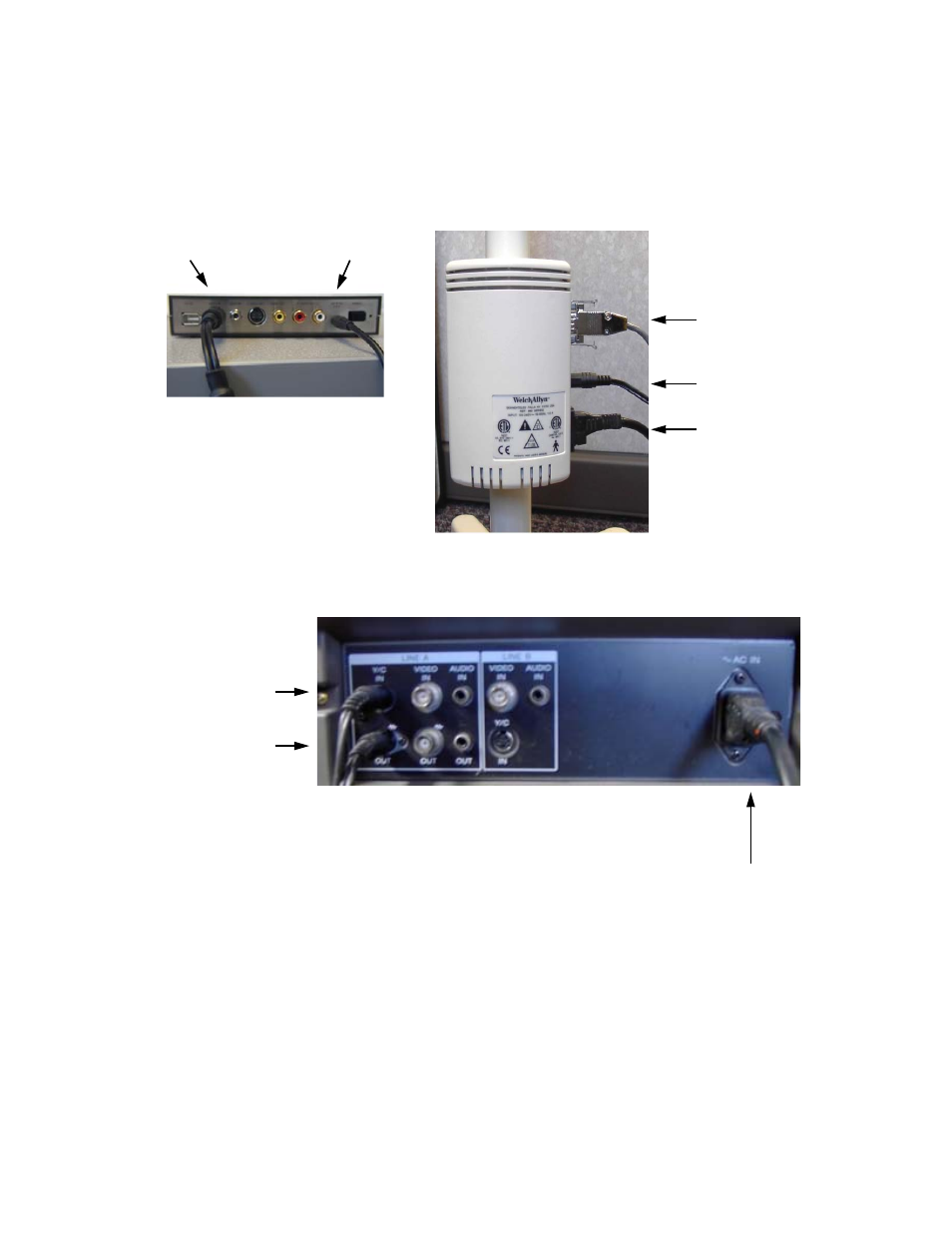

3. To connect the DV Converter to the Video Colposcope, plug one end of the provided S-Video
Cable into the Video In on the DV Converter and the opposite end of the cable to the Video
Out on the Video Colposcope Monitor. Verify that the S-Video Cable on the Video
Colposcope is connected to the Video In on the back of the Video Colposcope Monitor.
S-Video Cable
Power Cable
RS-232 Cable
S-Video Cable
(to monitor)
Power Cable
DV Converter Back
Video Colposcope
Power Cable
Y/C In
Y/C Out
(to DV Converter)
Video Colposcope Monitor Back
