4. To connect the Video Colposcope to the computer, plug one end of the provided RS-232
Cable into the top connection on the Video Colposcope and the opposite end to the RS-232
connection plug on the computer.
5. Plug the DV Converter, the Video Colposcope, and the Video Colposcope Monitor power
cords into a hospital-grade outlet.
6. Turn on the DV Converter then boot up the computer.
Installing the Welch Allyn Image Capture System Software
Verify that your computer meets the minimum system requirements before installing the Welch
Allyn Image Capture System software. See “Minimum System Requirements" on page 1 if you
have any questions about the specifications. If your computer does not meet the minimum

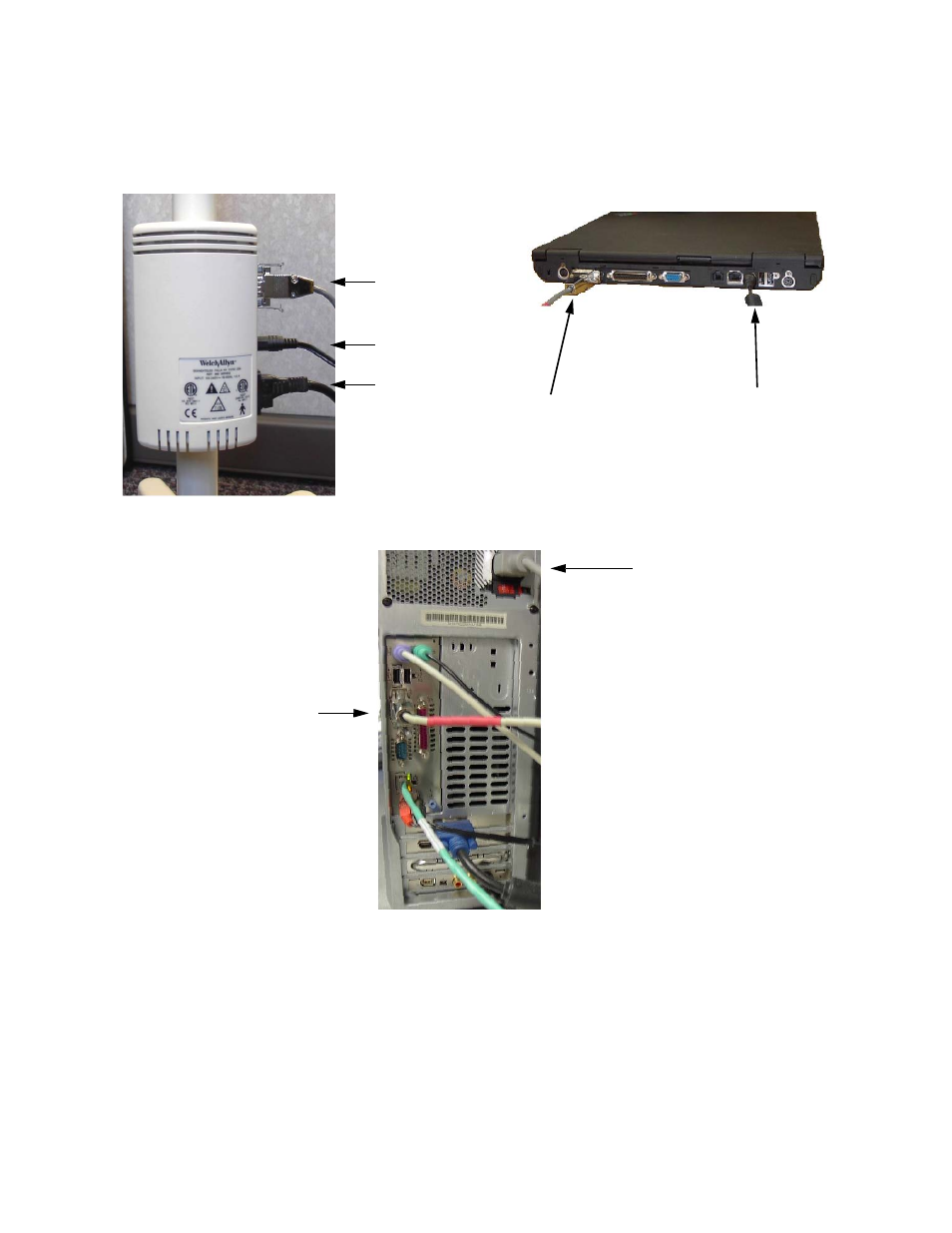

RS-232 Cable
S-Video Cable
Power Cable
RS-232 Cable
Power Cable
Video Colposcope Notebook Computer
Desktop Computer
RS-232 Cable
Power Cable
