FHR-35 Pan and Tilt Head Robotic
Cable Management Brackets
Installation
The FHR-35 is supplied with a cable management bracket fitted
to the base. Camera and head connecting cables can be neatly
secured to the bracket providing strain relief for the connectors.
Depending on the camera and head setup, the larger cable
management bracket can be fitted.
7

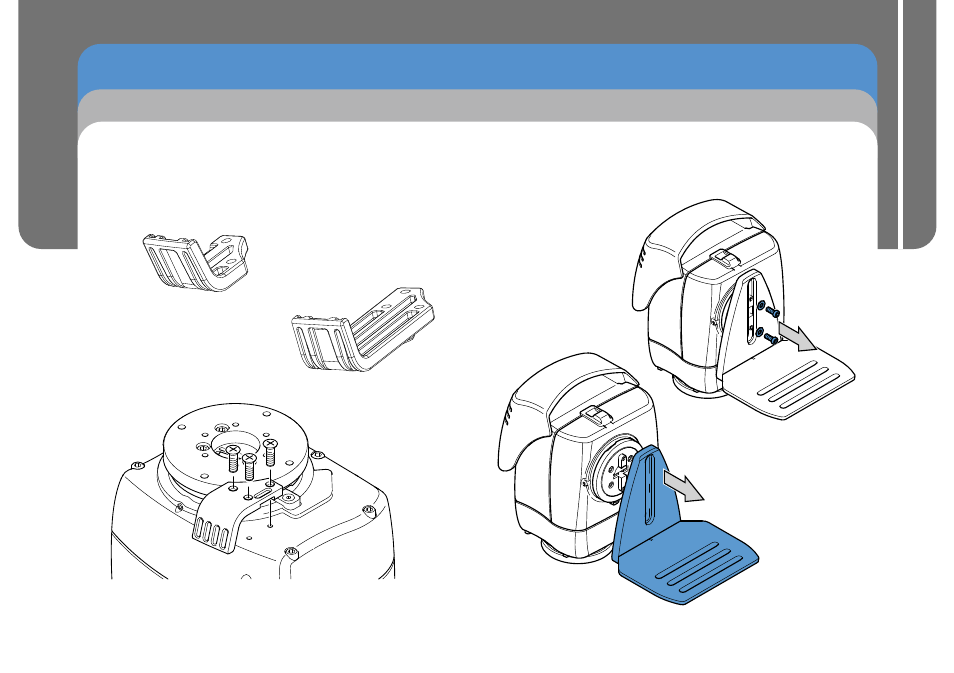

Removing the Camera Cradle
The first step in installing the head is to set the mechanical
hard stops to limit the movement of the head about the pan and
tilt axes. To set these limits, the camera cradle must be
removed.
1.
remove the two
screws and washers
securing the camera
cradle.
Using a 4 mm Allen
key,
2. Pull the camera
cradle away from
the
mounting
plate.
tilt
V4096-2082
V4096-2075
Supplied fitted
to the head
