17
Installation
FHR-35 Pan and Tilt Head Robotic
Installation and Configuration Guide

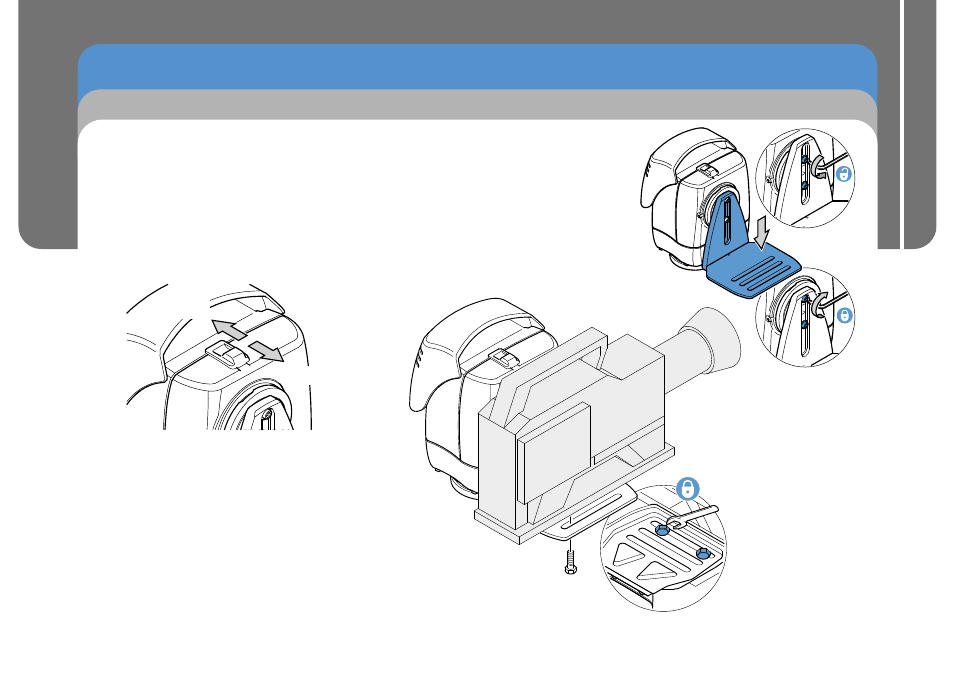

Locking/Unlocking the Camera Cradle
Before installing or adjusting the camera or payload, the tilt lock
must be engaged. The tilt lock
the camera
cradle in the horizontal position, to provide a stable platform
when making adjustments. The tilt lock is operated by a slider
button located on the top of the head.
mechanism holds
Note: The tilt lock only operates when
the camera cradle is in the
horizontal position.
Unlocked
Locked
Slide button forward
to engage tilt lock
Slide button back to
disengage tilt lock
Mounting the Camera
1. Using a 4 mm Allen
key, loosen the two
screws securing the
camera cradle
enough to slide the
camera cradle to its
lowest position.
Secure in position
using the two screws.
2. Carefully position
the camera onto
the cradle. Align the
mounting holes in
the bottom of the
camera with one of
the slots on the
cradle. Fit the two
screws and tighten
to secure the
camera in position.
