Installation
FHR-35 Pan and Tilt Head Robotic
Pozi Loc Tripod Mounting Options
13
Installation and Configuration Guide
The FHR-35 can be mounted onto the following Pozi Loc tripods:
- Vinten two-stage aluminium EFP Pozi Loc tripod (part no. V4086-0001).
- Vinten two-stage carbon fibre EFP Pozi Loc tripod (part no. 3881-3).

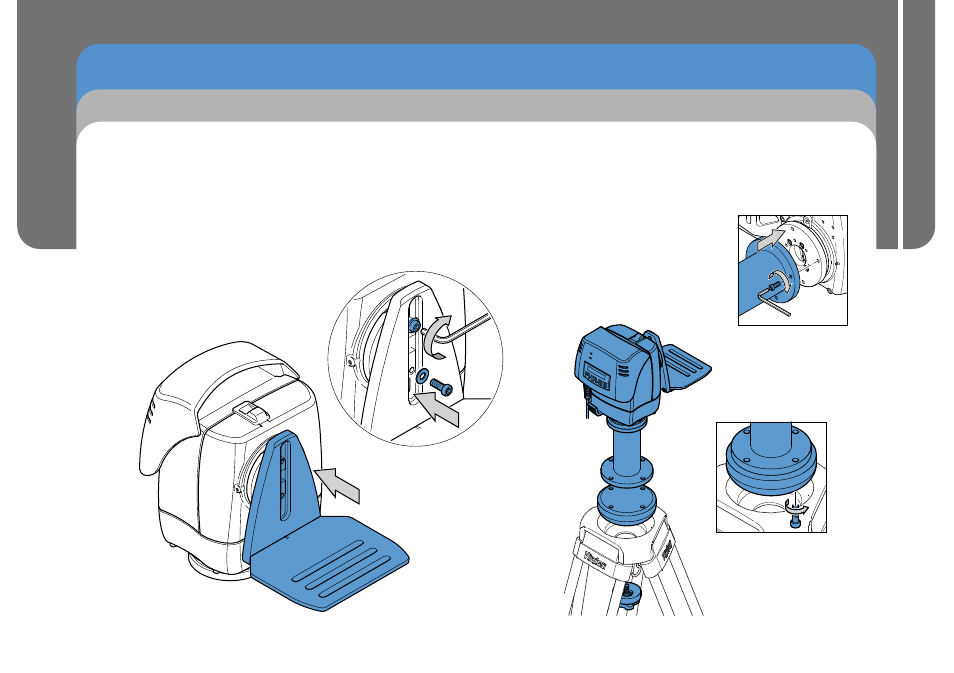

When mounting the head to the tripod, the cradle is fitted to the head in
the standard position.
Using a 5 mm Allen key, attach
the Radamec adaptor column
to the head using the four M6
screws and washers provided.
Mount onto the tripod using the
150 mm bowl adaptor.
Radamec Adaptor Column
(196-728-0044)
2. Mount the head to the Pozi Loc tripod using
one of the following three mounting options.
1. Fit the camera cradle to the tilt
mounting in the standard positioning.
Using a 4 mm Allen key, secure in
position using the two screws and
washers.
