FHR-35 Pan and Tilt Head Robotic
ICE Tool
22
Installation and Configuration Guide
The USB stick provided with the FHR-35 contains a software
utility called ICE Tool. When installed onto a controller
, ICE Tool can be used to change configuration settings in
the head and setup the soft limits.
PC or
laptop
Installing ICE Tool
ICE Tool can be installed and run on either the Windows XP or
Windows 7 operating systems.
1. Insert the USB stick into the PC and view the contents.
2. Double-click on the ICE Tool Windows Installer icon to
launch ICE Tool Wizard Setup.
3. Click Next and tick to accept the license agreement.
4. Click Next and select a location for the program to install to
(the default location Program Files\Vinten Radamec\Ice
Tool\ is recommended).
5. Click Next for the software to automatically install.
6. Click Finish to exit the Install Wizard.
®
®
1. To run the configuration software:
a) Double-click the ICE Tool icon to display the login
dialog box.
b) Select Customer Mode from the drop-down menu and
click Continue to display the ICE Tool window.
2. Add the FHR-35 to the System tree:
a) Expand the Available Hosts tree
structure.
b) Expand the FHR35 folder, to list all
the available heads.
c) Double-click the Host ID of the
required head to load it onto the
System tree.
CAUTION! Risk of product damage. Soft limits must be
set inside the range set for the hard limits.

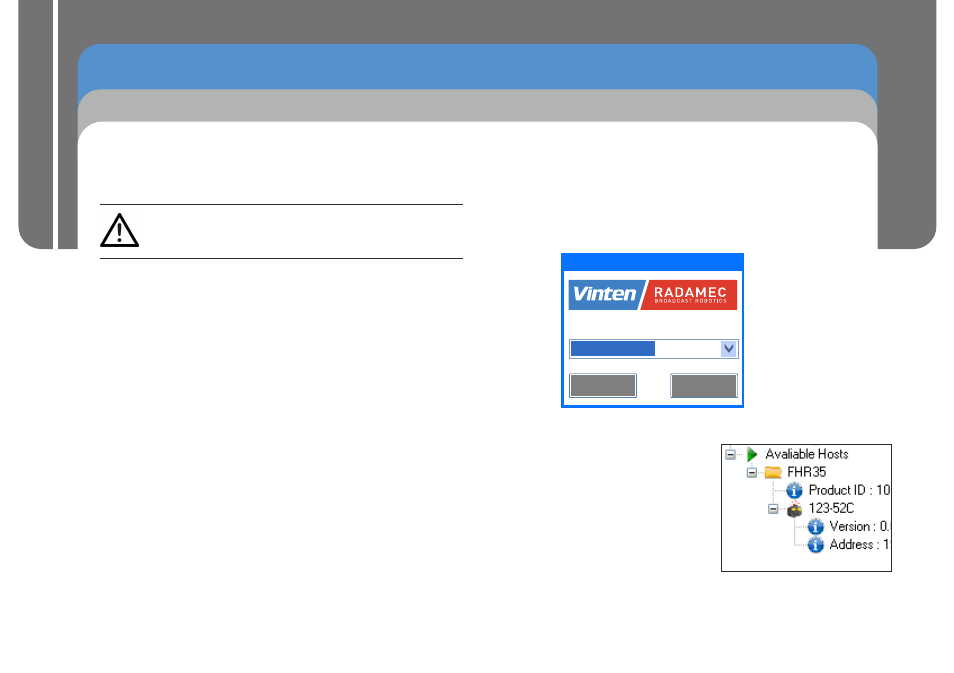

Customer Mode
Continue Exit
Select User Mode
ICE Tool Login
ICE Tool Installation Using ICE Tool
