Installation fhr-35 pan and tilt head robotic – Vinten Radamec FHR-35 User Manual
Page 18
HD Tripod Mounting Options
16
Installation
FHR-35
Pan and Tilt Head
Robotic
Installation and Configuration Guide

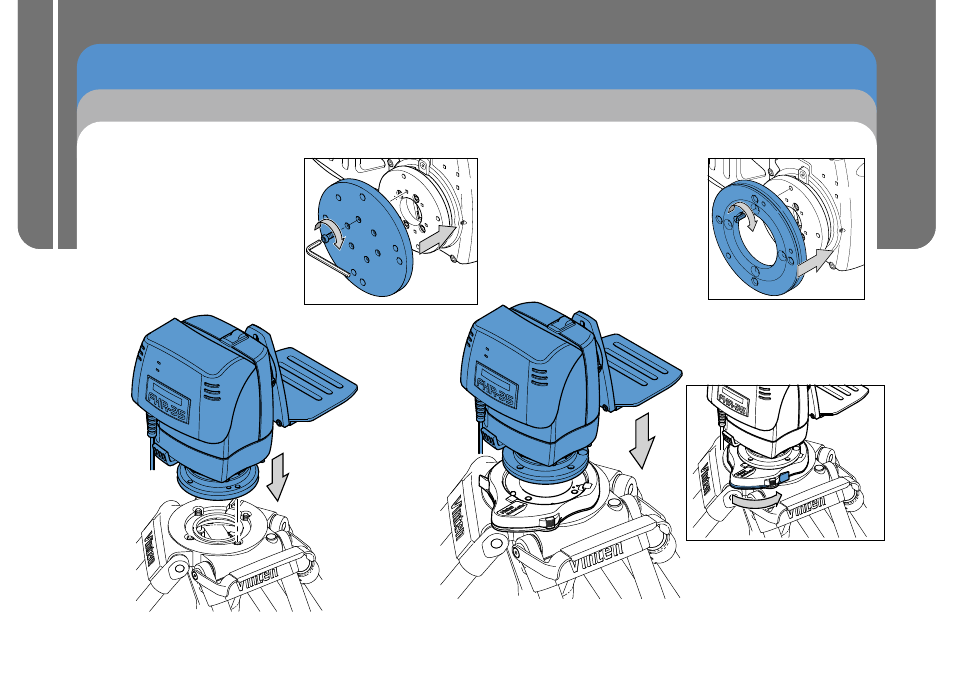

Using a 5/16" Allen key, attach the
VMA plate to the head using the
six 10-32 screws provided. The
head can then be directly
mounted on the tripod.
VMA Plate (AM-VMA-105)
Using a 5 mm Allen key, attach the
adaptor with Quickfix groove to the
head using the four M6 screws and
washers provided. Mount onto the
tripod with a Quickfix adaptor.
Adaptor with Quickfix Groove (V4096-1013)
