Installation fhr-35 pan and tilt head robotic – Vinten Radamec FHR-35 User Manual
Page 16
14
Installation
FHR-35
Pan and Tilt Head
Robotic
Pozi Loc Tripod Mounting Options
Installation and Configuration Guide

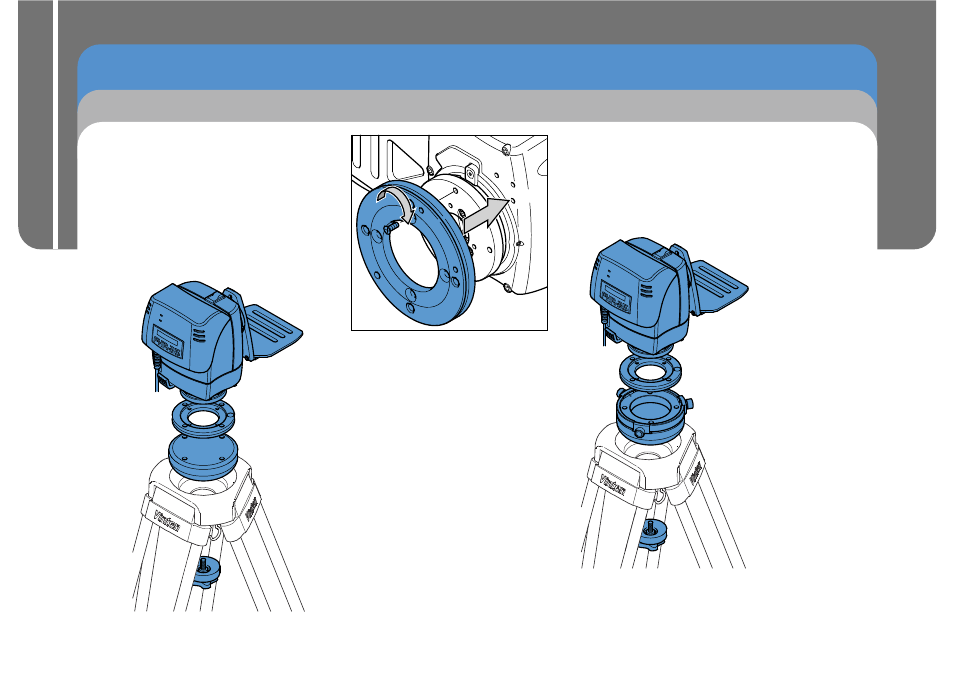

Adaptor with Quickfix
Groove (V4096-1013)
Using a 5 mm Allen key, attach the
adaptor with Quickfix groove to the head
using the four M6 screws and washers
provided. Mount onto the tripod using
either the 150 mm bowl adaptor or the
Quickfix 150 mm bowl adaptor.
3104-3
adaptor
150 mm bowl
3143-3
bowl adaptor
Quickfix 150 mm
V4096-1013 Adaptor with
Quickfix groove
