Cable Management
To ensure a safe and tidy installation, all of the cables connected
to the head can be secured neatly using the cable management
bracket. Depending on the type of head mounting, the cables can
also be secured to the tripod leg or mounting bracket using the
cable ties provided.
CAUTION! Leave sufficient slack in the cables between
the fixed mounting and the head for free and full range
of movement.
Powering Up
WARNING! Ensure that all personnel are clear from
the robotic equipment before powering up.
CAUTION! Cables must be secured to the cable
management bracket when head is mounted to a tripod.
CAUTION! Disengage tilt lock before powering up.
Before powering up the head, ensure that all external cable
connections have been secured correctly.
To power up, press the power button located on the side of the
head. The head will not move when powered up, but zoom and
focus servos on the camera will take up their default positions
on analogue lenses.
The LEDs located at the rear of the head, indicate that data
communications (green LED) and a genlock signal (amber
LED) is present.
If the LEDs do not illuminate on power up, refer to the
Troubleshooting section of this manual.

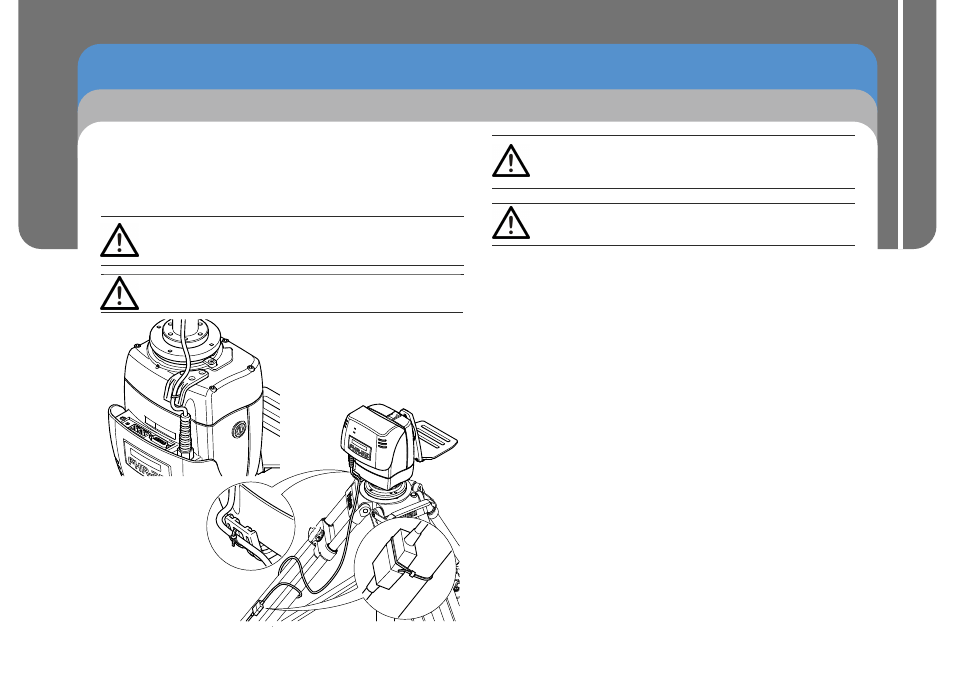

Ceiling mounted
Tripod or wall mount
