Splice Sleeve
Use with AW−504
AW−195−01
Splice Sleeve
Use with AW−800 &
AW−850
AW−196−01

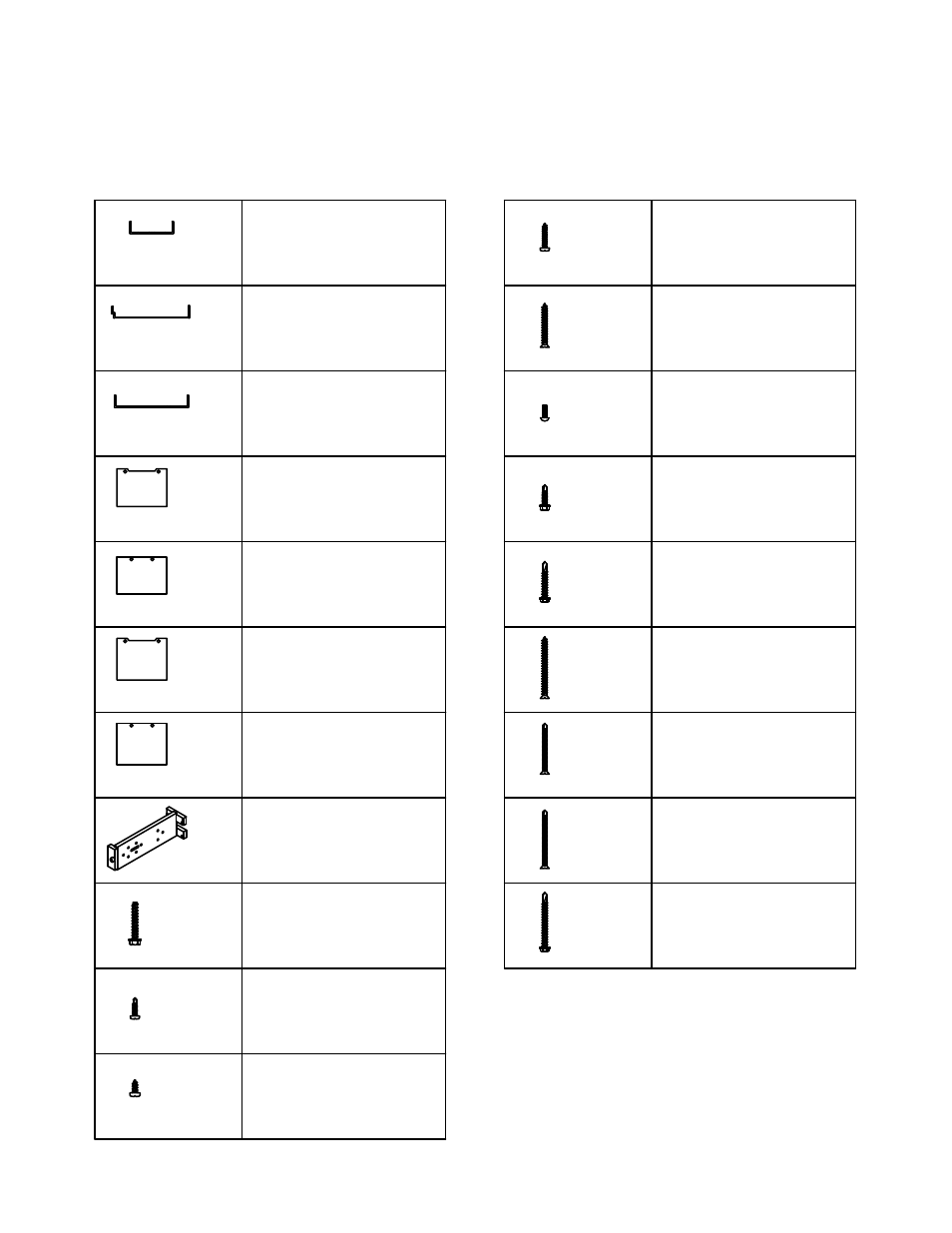

PARTS LIST
#10 x 1" Phillips Pan Head
Horizontal to Shear Block
FS−115
#10 x 1/2" U−Drive
All Mullion Caps
FS−320
FS−325
FS−322
#12−14 x 1 1/2" HWH TEK
Pressure Plate to Vertical
& Temp Glazing Retainer
(Captured Mulls)
#10 x 1/2" Phillips RH
Captured Glazing Adaptors
#14 x 1 1/2" Hex Head
Shear Block to Vertical
FS−55
FS−9
Splice Sleeve
Use with AW−804
AW−197−01
AW−370
Captured Mullion Cap
Intermediates & Jambs
1 3/4" Infill
AW−380
Captured Mullion Cap
Intermediates & Jambs
2" Infill
AW−375
SSG Mullion Cap
Intermediates & Jambs
1 3/4" Infill
AW−385
SSG Mullion Cap
Intermediates & Jambs
2" Infill
#10 x 2" Phillips FH
1/4" Adaptor
90° OS SSG Corner
FS−201
#10 x 3" Phillips FH
AW−125 & AW−126
SSG−to−Captured Adaptor
Non−Stock
#12−14 x 1" HWH TEK
Splice Sleeves
#10 x 1" Phillips PH TEK
Pocket Fillers
FS−13
#10 x 2 1/2" Phillips FH TEK
SSG Adaptor
1 3/4" Infill
Non−Stock
#10 x 3" Phillips FH TEK
SSG Adaptor
2" Infill
Non−Stock
Non−Stock
#12−14 x 3" HWH TEK
Temp Glazing Retainer
(SSG Mulls)
DJ−113
Drill Jig
Verticals & Horizontals
STANDARD ACCESSORIES STANDARD ACCESSORIES
R E L I A N C E − H T C I N S T A L L A T I O N M A N U A L
MAY 2013 34
