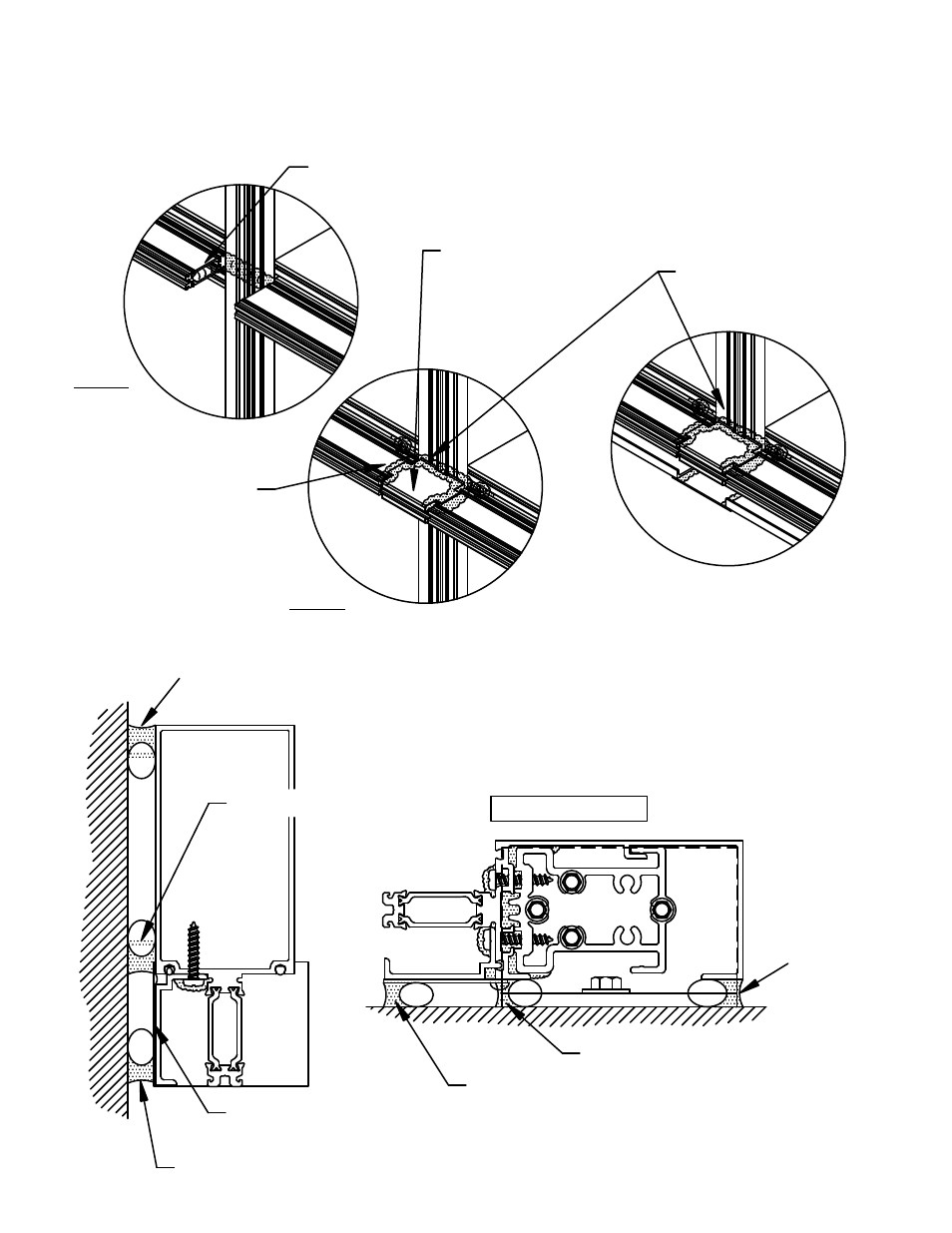

Seal along tongue of horizontal and across
face of mullion before installing SSG bridge.
STEP 1
STEP 2
SSG BRIDGE AT SILL
(HEAD SIMILAR)
Optional
interior seal
Optional
interior seal
FIGURE 10
Perimeter Seal
Head seal is similar
FIGURE 9 (continued)
SSG Bridge Installation
Tool sealant along
top & sides of SSG
bridge to form a water
tight seal. Force sealant
into reveal around edge
of SSG bridge.
SSG bridge
WW-382 @ 1 3/4" infill
WW-383 @ 2" infill
Force sealant into all
races on face of mullion
Optional secondary seal
Primary seal
Primary seal
Optional secondary seal
Trim edge of
mullion cap at jamb
FRAME INSTALLATION
R E L I A N C E − H T C I N S T A L L A T I O N M A N U A L
MAY 2013 14
