Oldcastle BuildingEnvelope Reliance-HTC - Manual (Page 27)

1/2"
face cover
splice
1/2"
1"
1/2"
pressure
plate splice
3" first screw location at
upper pressure plate
2"
Glazing adaptor
Pressure plate
Face cover
Infill
Captured Mullions
SSG Mullions
1/2"
Upper mullion
Lower mullion
Seal face of mullion and
mullion tongue. Apply
bond breaker tape
to splice sleeves at joint.
Seal void between gaskets
and adaptors at splice joint.
Adaptor at vertical
2 1/2"

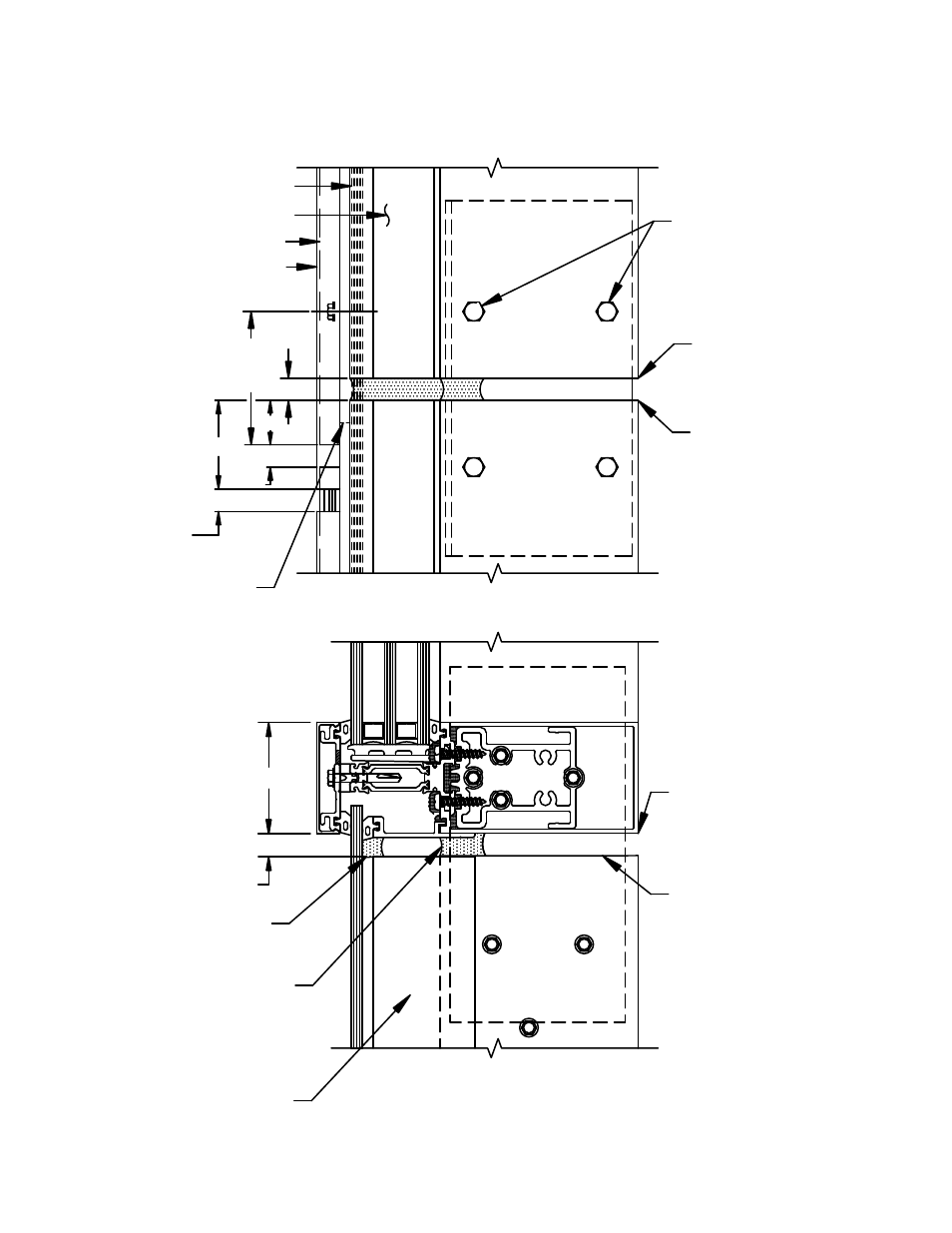

FIGURE 22
Vertical Mullion Splice
(See FIGURE 7, page 7 for Splice Installation)
VERTICAL SPLICING
Remove for
expansion splice
Upper mullion
Lower mullion
Splice EPDM isolator
here if required
R E L I A N C E − H T C I N S T A L L A T I O N M A N U A L
MAY 2013 24
