Force sealant
into gasket race
Seal along tongue of
horizontal & across face and
tongue of mullion before
installing zone plugs.
STEP 1
STEP 2
Tool sealant along top of zone
plug to form a water tight seal.
Force sealant into reveal around
edge of zone plug.
ZONE PLUG AT HEAD
ZONE PLUG AT JAMB
ZONE PLUG AT SILL
Seal jamb & sill
zone plugs same
as shown at left
Seal between
sill, vertical &
mullion cap

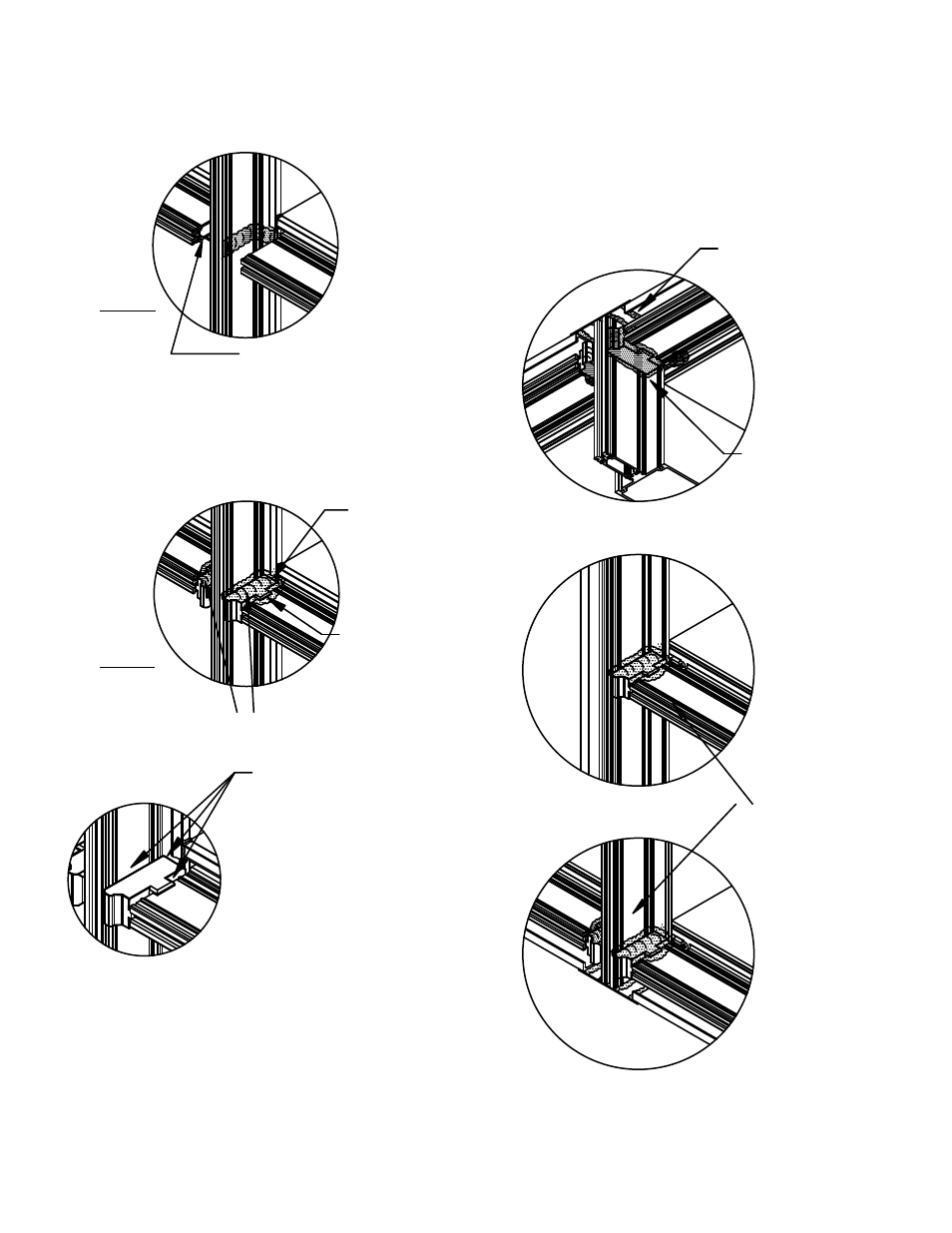

FIGURE 9
Zone Plug Installation
Zone plug
WW-372 @ 1 3/4" infill
WW-373 @ 2" infill
Seal between head,
vertical mullion and
mullion cap
Bottom side of
zone plug shown.
Seal top side sim.
FRAME INSTALLATION
