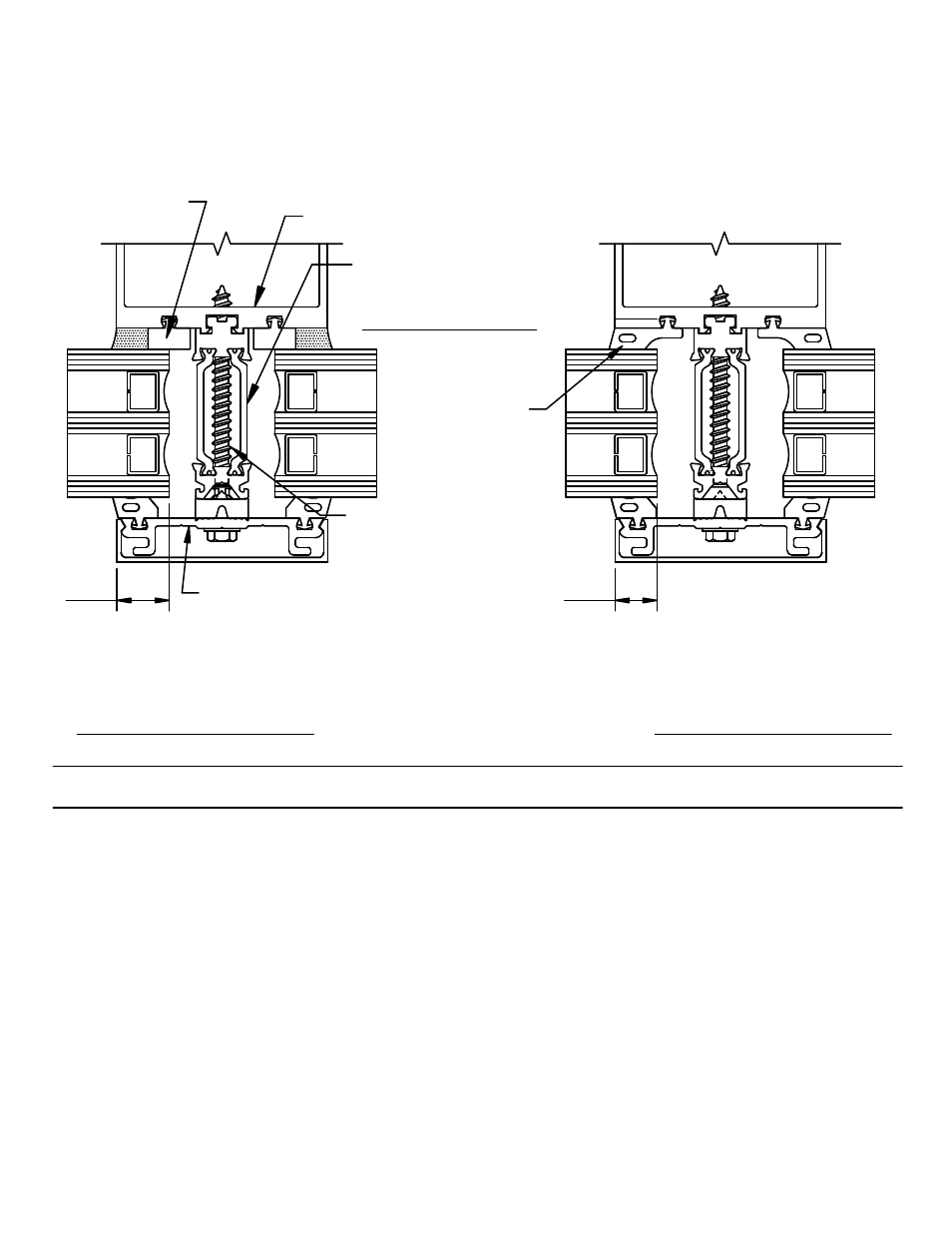

Captured Glazing Adaptor for SSG Mullion
#10 x 3" PFH;
Attach to mullion per
approved shop drawings;
Stagger from pressure
plate screw locations
Standard pressure
plate, screw, cover,
gaskets & isolator
Optional Dry Glaze
GP−122
gasket
Standard Silicone Glazing
VERTICAL SPLICING
Refer to MULTI−SPAN INSTALLATION, page 6 & 7 for splice sleeve installation.
Follow sealant manufacturer’s guidelines for proper joint width based on anticipated movement. A minimum ½˜
joint is recommended. Note: Standard splice joints are engineered to accommodate thermal expansion
only. They do not allow for movement in floor levels. Refer to approved shop drawings for special
circumstances, or contact your nearest Oldcastle BuildingEnvelope facility.
B.1 Apply bond breaker tape to the face of splice sleeves, returning back on the sides 1˜ minimum. Insert
backer rod into the hollow of the vertical mullion, top and bottom. Seal between top and bottom mullion
from the front of the tongue to 1˜ behind glass pocket. Follow the contour of the glazing reglets with the
sealant to insure a good seal when gaskets are installed. SEE FIGURE 7.
B.2 Discontinue glazing adaptors at splice joints. Install backer rod into cavity and seal between adaptors.
Marry adaptor seal with main mullion seal. Refer to step B.1 above for sealing notes at glazing reglets.
B.3 Offset pressure plates and face covers per FIGURE 22, sealing pressure plate and face cover joints as
shown in FIGURE 23, page 14.
* Note : AW−125 (for 1 3/4" infill) and AW−126 (for 2" infill) tongue adaptor
must be slid in place and fastened to mullion prior to erecting the mullion.
FIGURE 21 (Continued)
Glazing Adaptors
GP-105 spacer
and silicone
SSG mullion
Tongue adaptor;
attach with #10 x 3" FH
@ 3 per D.L.O.
Cut length = D.L.O. + 1"
5/8" 1/2"
TM
TRANSITION GLAZING
