All door framing components are shipped fabricated from the factory. The main curtain wall framing
can be erected prior to installing the doors.
C.1 Curtain wall verticals and door subframes run through to finished floor. Bed adjacent curtain wall verticals
in sealant and anchor to floor per approved shop drawings. SEE FIGURE 26, page 15 for suggestions on
anchoring door jamb mullion.
C.2 SUBFRAME INSTALLATION:
C.2.1 Attach threshold clip to bottom of each jamb subframe with screws provided.
C.2.2 Install pocket filler onto curtain wall mullion. SEE FIGURE 24.
C.2.3 Bed subframes in sealant. Anchor to curtain wall framing members with FS−322 #12 x 1˜ HH STS
at 18˜ O.C. Seal joint between jamb and header subframes. Seal tops of the jamb subframes.
SEE FIGURE 25, page 15.
C.2.4 Bed threshold in sealant, attaching to threshold clips with screws provided. Marry threshold seal
with subframe and main system seal. SEE FIGURE 25.
C.2.5 Install door stops in subframe. The vertical stops run through.
C.2.6 Install pressure plates and face covers per standard installation instructions.
C.2.7 Install door per DOOR & FRAME INSTALLATION & GLAZING MANUAL.
A
A
Pocket filler
AD-450
thermal door frame
1 11/16"
Seal joint between vertical
and horizontal subframes

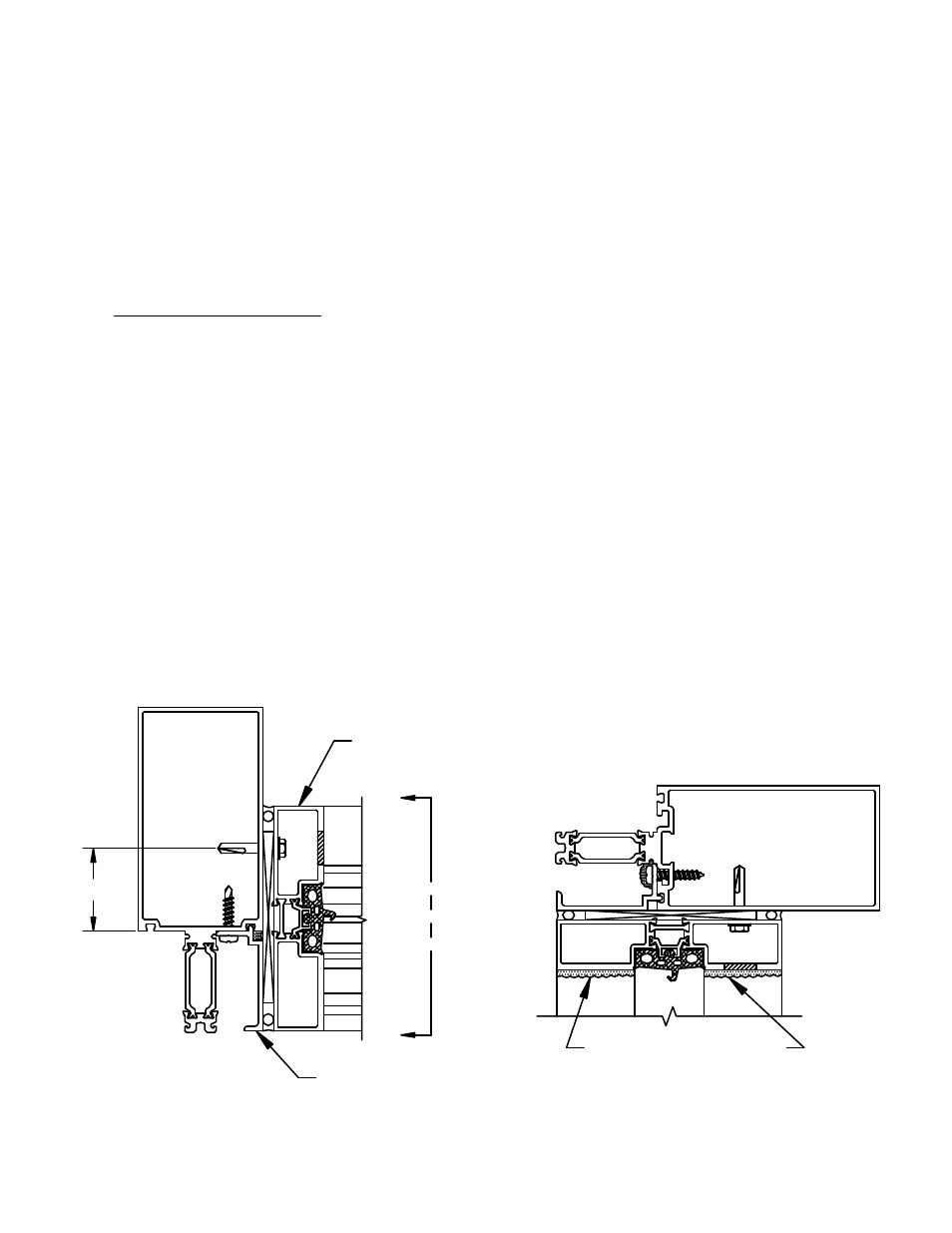

Section A−A
FIGURE 24
Attaching Subframes
