3.1 Install face gaskets into all pressure plates. Install silicone spacer gaskets into the SSG mullions. Crowd
all gaskets into members to avoid gaps caused by relaxation of gasket material.
3.2 Install thermal spacer into groove on face of mullion tongues. Run through at vertical splice joints. Cut
short 1/8˜ from each end of the mullion. SEE FIGURE 12.
GLASS SIZE CALCULATION FOR TYPICAL CAPTURED & SSG MULLIONS =
D.L.O. plus 1˜ for WIDTH & HEIGHT at Captured System
D.L.O. plus 2˜ for WIDTH at SSG System (Verticals Only)
SEE FIGURE 11 for calculation at one piece corner mullion

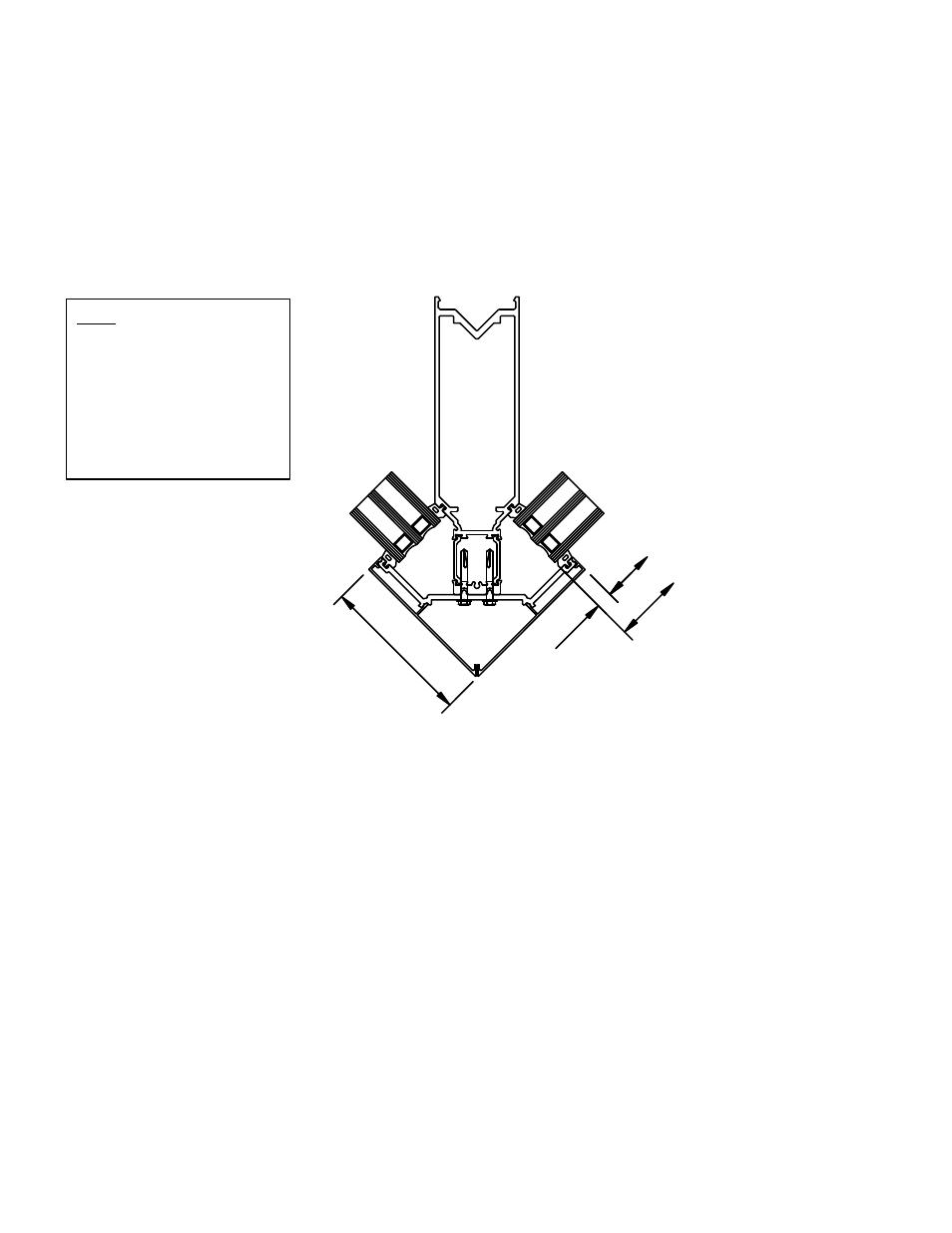

FIGURE 11
Glass Size Calculation at One Piece Corner
(Dimensions Typ. Both Sides of Corner)
O.S. 90 − Captured
(1 3/4" Infill Shown; 2" and Spandrel Sim.)
Note: Steps 3.1 through
3.16 refer to standard
glazing of 1 3/4˜ & 2" infill.
For openings requiring
transition glazing with
adaptors, refer to
ˆTRANSITION GLAZING˜,
page 12.
D.
L.
O.
1/
2"
2 1/2"
Gl
ass
size
GLAZING
R E L I A N C E − H T C I N S T A L L A T I O N M A N U A L
MAY 2013 15
