3.5 Set glass in opening. Ensure that glass bite is equal on all sides. CAUTION: Be certain that glass is
placed firmly against interior gasket to ensure a proper seal and to avoid binding of the glass on
the setting block.
3.6 Temporarily hold glass in the opening with WW−333 temporary glazing retainers & FS−325 screw at
captured mulls. Use WW−333 retainer with #12−14 x 3" screw for SSG verticals. Torque screws to 60
in−lbs.
· WW−333 temporary glazing retainers must be applied at each glass edge 3" from the corner (minimum of
8 per lite). Glass edges greater than 4’ in length but less than 8’ require an additional retainer at the
glass mid−span. SEE FIGURES 13 & 14 .
· Retainers are intended for short term use only. Additional retainers may be required to withstand full
design wind load pressures.
· Full length pressure plates must be installed if severe weather or high wind loads are anticipated.
Zone plug
see FIGURE 9,
page 8 for sealant
notes
Setting block & setting chair
(2) per D.L.O, locate at
1/4 points or per approved
shop drawings (center setting
block on setting chair
WW−333−01 temporary glazing retainer.
Locate at 3" from edge of glass. Additional
clips may be required based on field
conditions and glass size.
FS−325
(1) per retainer
3" typ.
3" typ.
SSG MULLION

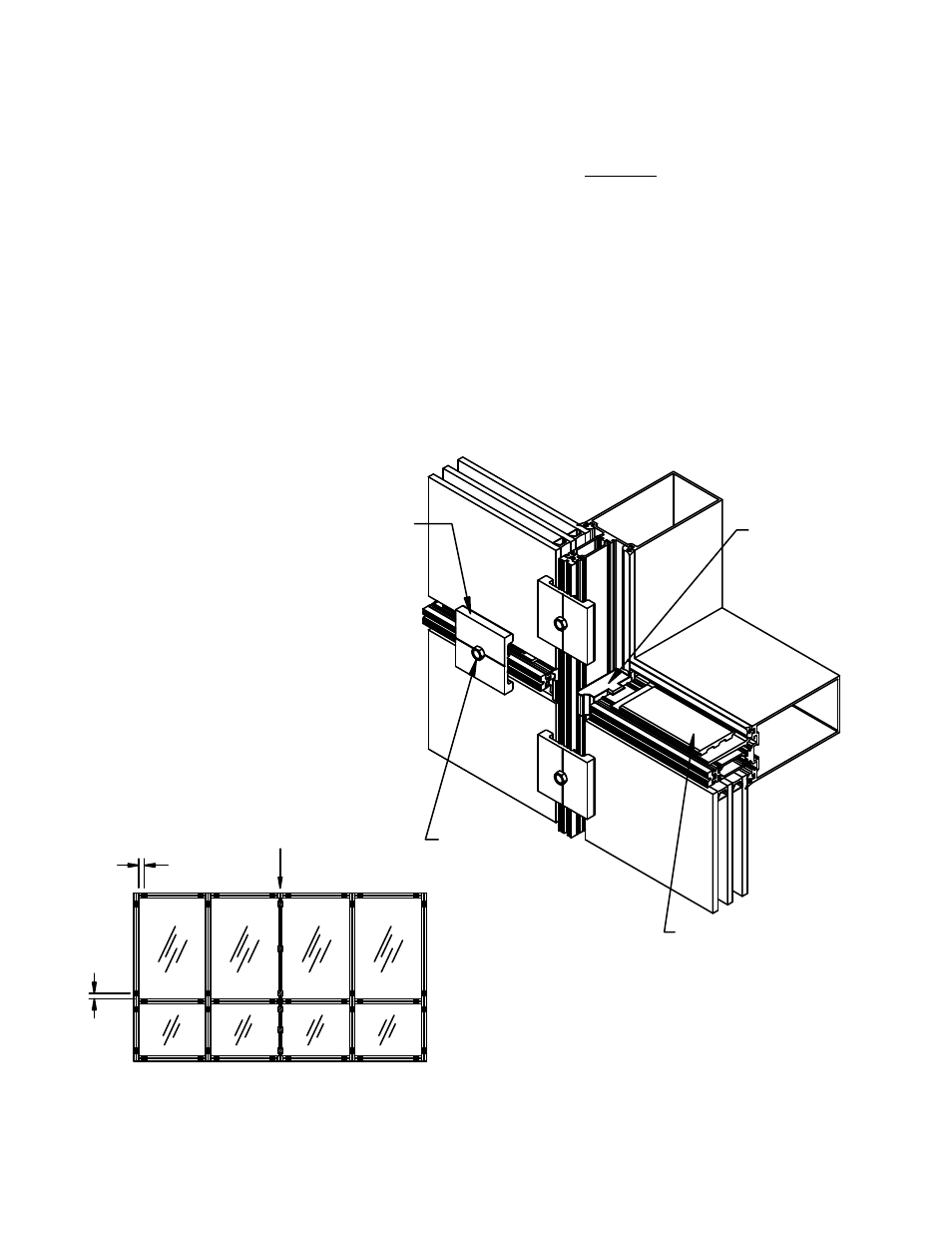

FIGURE 14
Typical Location of
Temporary Glazing Retainers
FIGURE 13
Glazing Instructions
GLAZING
R E L I A N C E − H T C I N S T A L L A T I O N M A N U A L
MAY 2013 17
