CORNER MULLIONS & ACCESSORIES
Face Cover
90° OS Captured
1 3/4" Infill
AW−115
AW−117
Pressure Plate
90° OS Captured
1 3/4" Infill
Glazing Adaptor
90° OS Captured
1 3/4" to 1/4" Infill
AW−171
AW−140
AW−141
AW−142
AW−143
Face Cover
90° OS Captured
2" Infill
Glazing Adaptor
90° OS Captured
1 3/4" to 1" Infill
Glazing Adaptor
90° OS Captured
2" to 1/4" Infill
Glazing Adaptor
90° OS Captured
2" to 1" Infill
CORNER MULLIONS & ACCESSORIES
AW−172
Pressure Plate
90° OS Captured
2" Infill
Shear Block
90° Corner Mullions
7 1/4" & 7 1/2" Depths
Splice Sleeve at Corners
Use with AW−240,
AW−241
AW−180−01
AW−185−01
AW−198−01
AW−200−01
Shear Block
90° Corner Mullions
10" & 10 1/4" Depths
Splice Sleeve at Corners
Use with AW−250,
AW−251

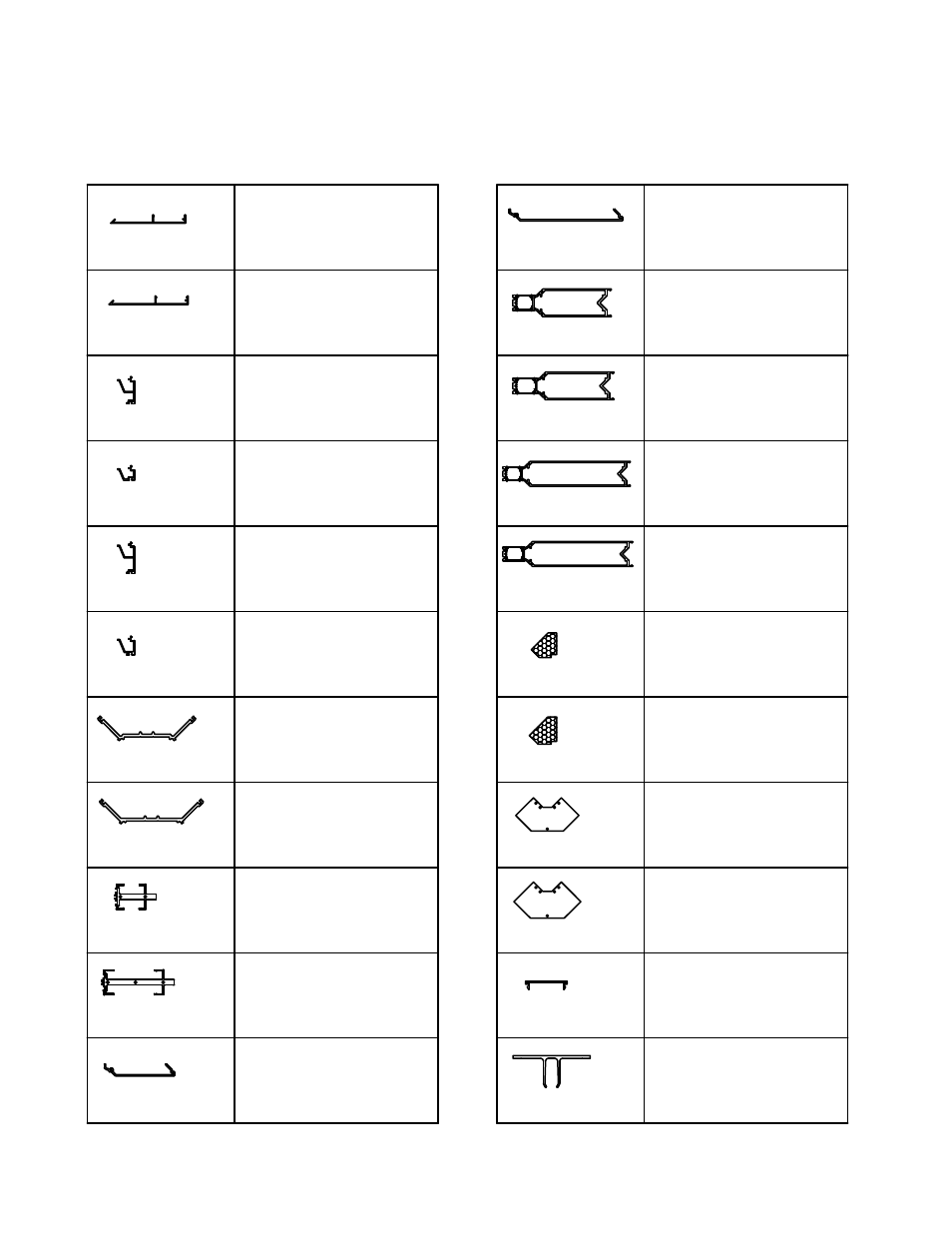

PARTS LIST
AW−390
Mullion Cap
90° OS Captured & SSG
1 3/4" Infill
AW−395
Mullion Cap
90° OS Captured & SSG
2" Infill
AW−306
Foam Zone Plug
90° OS Captured
1 3/4" Infill
AW−307
Foam Zone Plug
90° OS Captured
2" Infill
90° OS Captured
1 3/4" Infill
7 1/4" Depth
AW−240
AW−250
AW−241
AW−251
90° OS Captured
2" Infill
7 1/2" Depth
90° OS Captured
1 3/4" Infill
10" Depth
90° OS Captured
2" Infill
10 1/4" Depth
CW−823
Snap−In Back Trim
Use with Corner Mullions
WW−102−18
T−Anchor at Corners
Use with AW−240,
AW−241, AW−245,
AW−246
R E L I A N C E − H T C I N S T A L L A T I O N M A N U A L
MAY 2013 32
