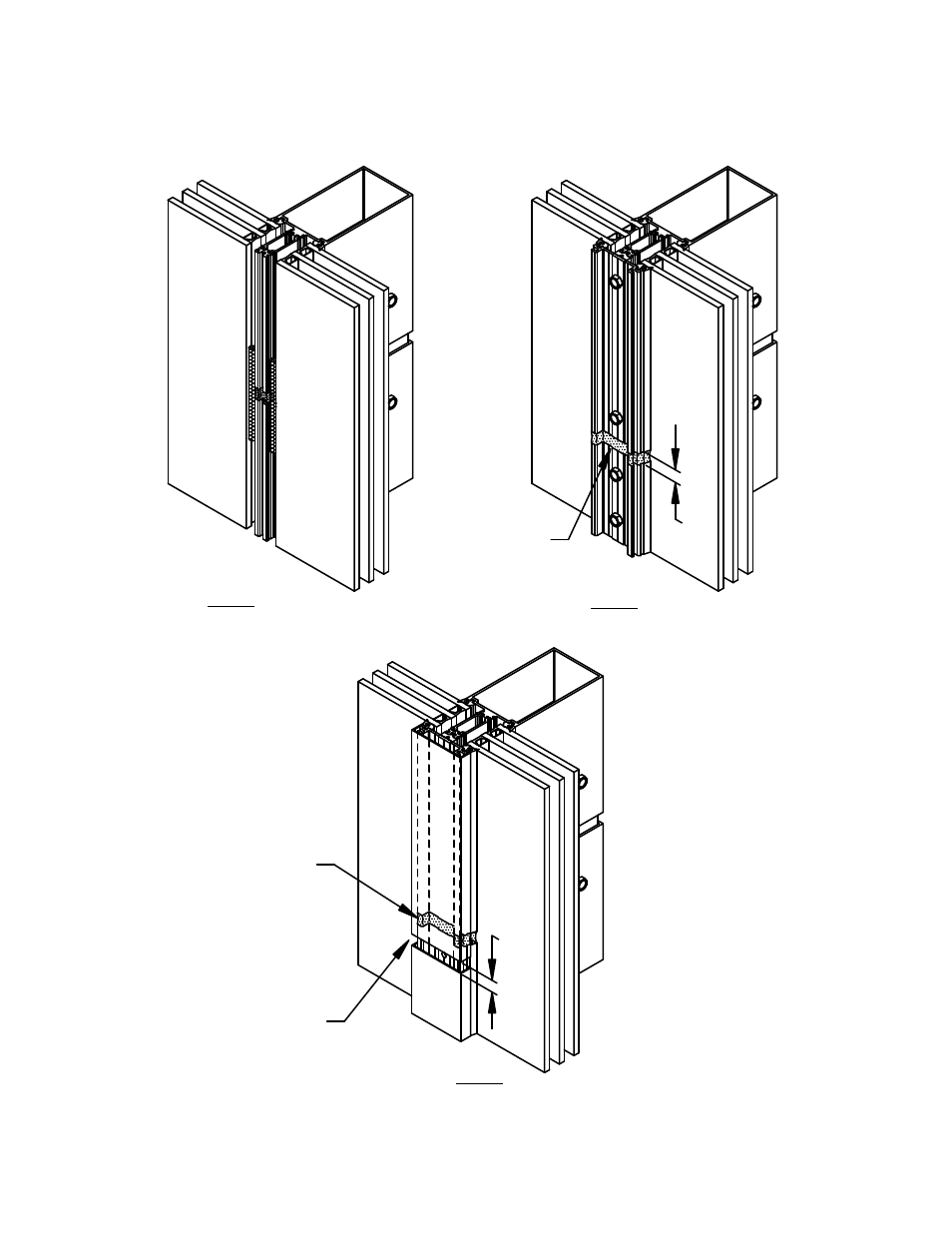

Step 2

Step 3

Step 1

Seal between

pressure plates

1/2"

1/2"

Pressure plate splice

1/2" above face cover splice

Install face covers leaving

1/2" joint between covers.

Note that joint is based on

1/4" expansion.

FIGURE 23

Splice Joint Sealing Instructions

VERTICAL SPLICING
