WW−162 cut length =
D.L.O. minus 1/4"
5/16"Ø weep holes
located at 1/4 points
WW−110 face cover.
Weep horizontal cover
at mid−lite. See detail below
Seal ends of the
pressure plate to the
vertical face cover
7/32"
Centerline
of D.L.O
5/16"Ø weep hole

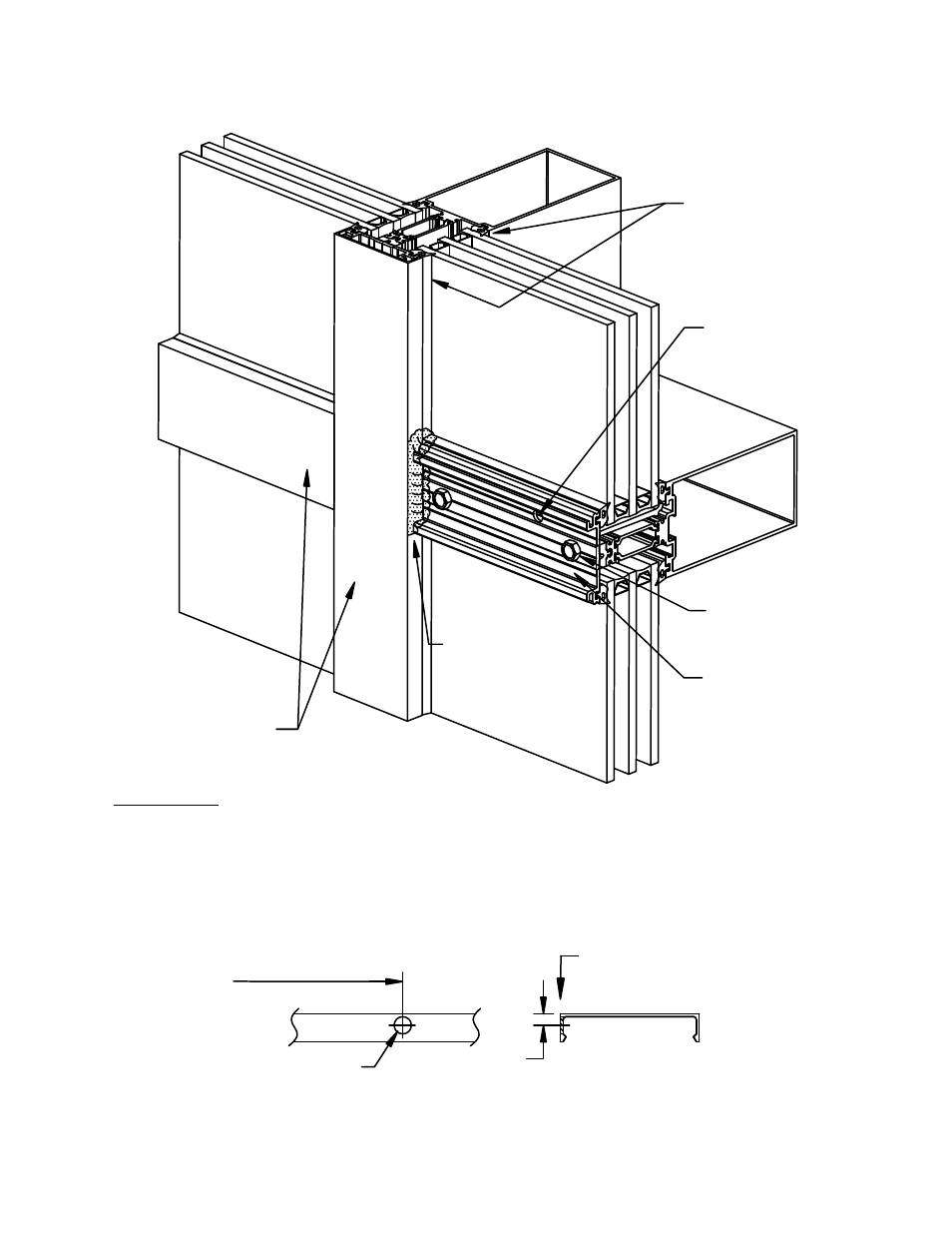

Horizontal Face Cap Fabrication
GP−103 gaskets.
See notes below for
installation
Glazing Notes:
1. GP−103 dense EPDM gasket used on interior and exterior of system.
2. Remove gaskets from reels and allow to relax overnight before installing.
3. Cut gaskets to allow minimum 1/4" per foot for any relaxation of gasket
that may occur after installation.
4. To ensure proper pressure on the glazing, 7/32˜ diameter holes may need to be drilled at the ends
of each horizontal pressure plate as required. locate at 1 ½˜ maximum from the ends.
FS−325 screw
FIGURE 18
Glazing Instructions
Bottom side of cover
GLAZING
R E L I A N C E − H T C I N S T A L L A T I O N M A N U A L
MAY 2013 21
