Bi-directional
PROCHOT# Disabled
Enabled When the processor thermal sensor trips
(either core), the PROCHOT# will be driven
If bi-direction is enabled, external
agents can drive PROCHOT# to throttle the
processor.
APCI 3.0 T-
States Disabled
Enabled
Enable/disable ACPI 3.0 T-states

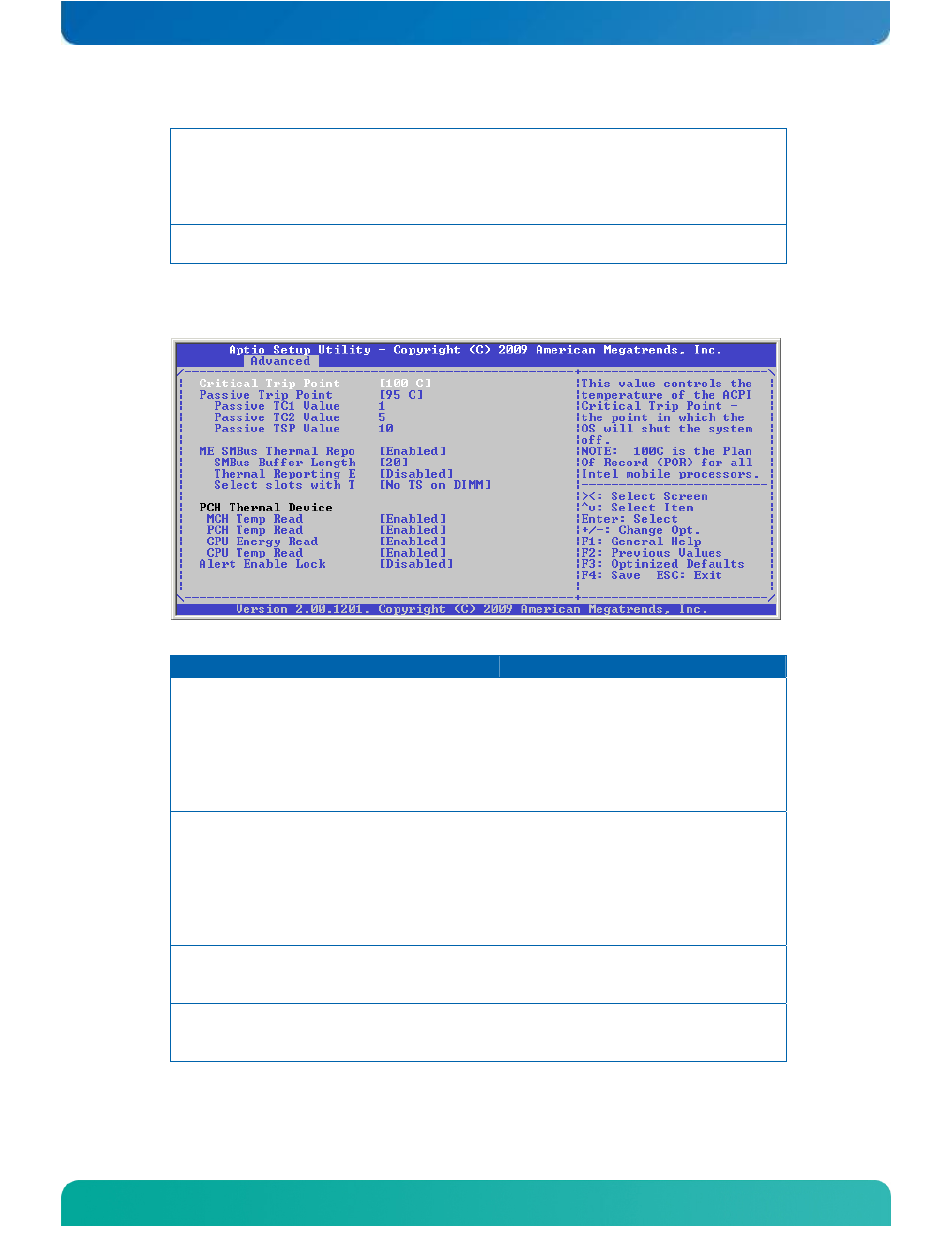

Thermal Configuration Settings: Platform Thermal Configuration
Features Options Description
Critical Trip
Point 100 C
55 C
60 C
…
…
…
119C
This value controls the
temperature of the ACPI Critial
Trip Point – the point at which
the OS will shut the system off.
NOTE
100C is the Plan Of Record
(POR) for all Intel mobile
processors.
Passive Trip
Point 55 C
60 C
65 C
…
95 C
…
119 C
This value controls the
temperature of the ACPI Passive
Trip Point – the point in which
the OS will begin throttling the
processor.
Passive TC1
Value 1 This value sets the TC1 value
for the ACPI Passive Cooling
Formula. Range 1 - 16
Passive TC2
Value 5 This value sets the TC2 value
for the ACPI Passive Cooling
Formula. Range 1 - 16
