Table 13 USB Configuration
COMexpress™
Port
QM57 PCH Port
Description
USB0
USB0
USB 2.0 compliant
ports
USB1
USB1
USB2
USB4
USB3
USB5
USB4
USB6
USB5
USB7
USB6
USB3
USB7
USB2

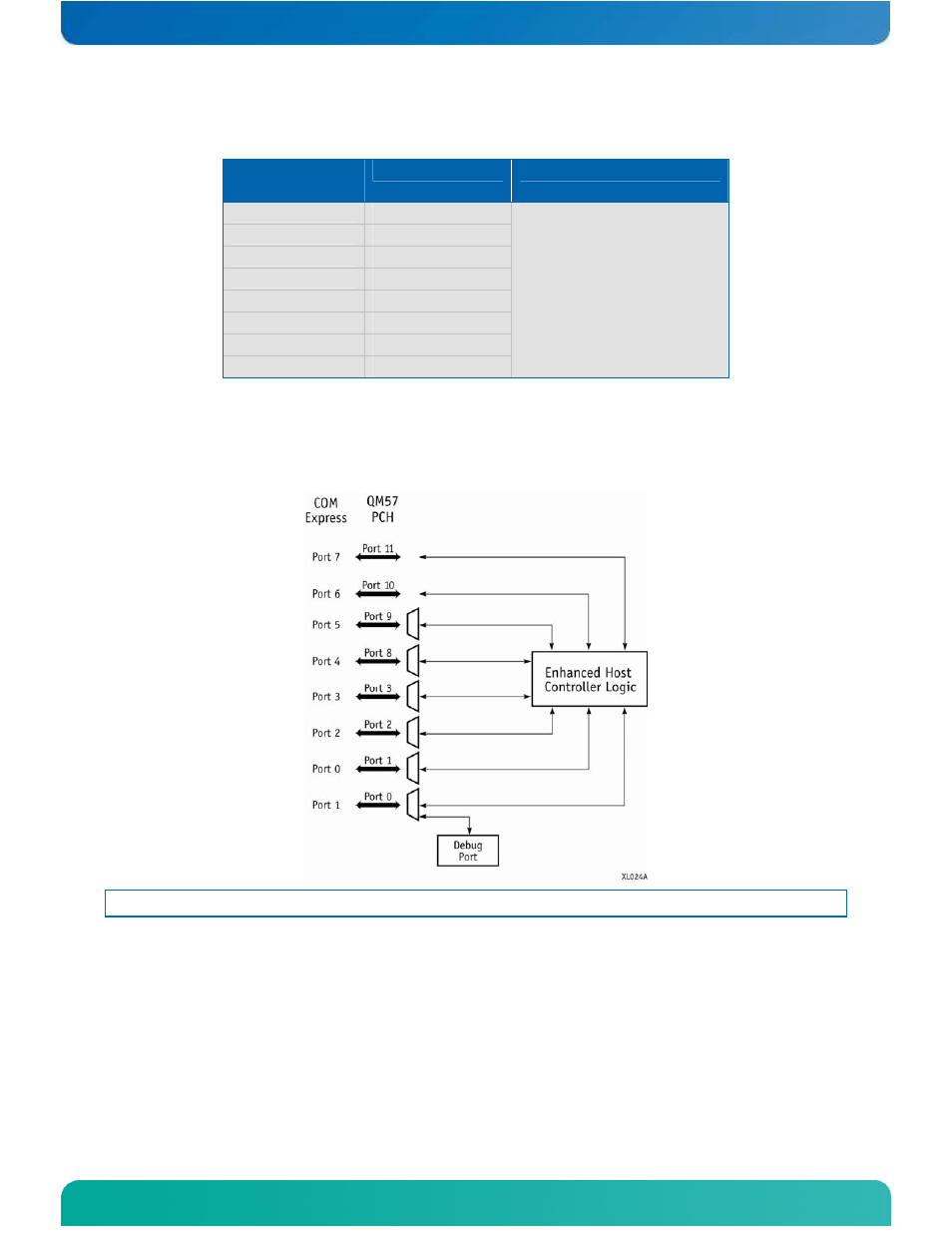

Figure 5 shows the internal USB mapping from theMobile Intel® QM57 Platform
Controller Hub (PCH).
Figure 5: USB Mapping
NOTE: Additional USB connections can be added using external USB hubs.
Configuration
There are two 480 mb/s USB EHCI controllers. The USB controllers are PCI bus
devices. The BIOS allocates the required system resources during
configuration of the PCI bus.
