40 | Logging
• LOG MODE—Select single point, continuous, periodic, or scheduled
logging.

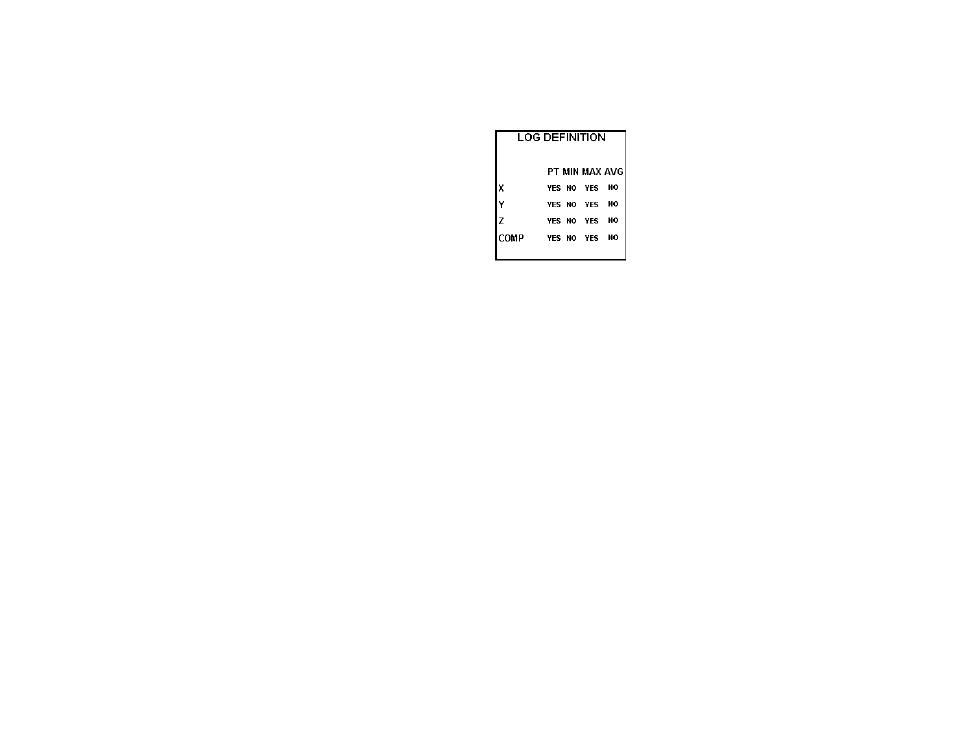

• LOG—The LOG DEFINITION
menu is used to select the
information to include in the log
file. A new log file is created any
time one of the log definition
parameters is changed.
The PT values for the X, Y, and Z axes are the log point values taken at the
log rate interval. The PT value for COMP is the composite of the X, Y, and
Z value. The MIN and MAX values are the minimum and maximum
numbers obtained by the sample rate, either 2/sec or 6/sec, during the log
rate interval. The AVG value is the average of all samples, either 2/sec or
6/sec, divided by the log rate interval.
When Axis Enable on the MAIN menu is set to XYZ, any of the 16 values
shown can be selected to display on the screen, as well as included in the
log file. If Axis Enable is set to COMP, then only the four values for COMP
will be available.
This menu is also available as a read-only screen from the UPLD, REVIEW,
and CLEAR menus by selecting the DETAIL menu and then the LOG
menu.
S INGLE P OINT L OGGING
Logs a single point when the LOG key is pressed. Select the LOG menu to
define the items to include in the log file.
