This section summarizes product features covered in
detail in later sections of this manual:

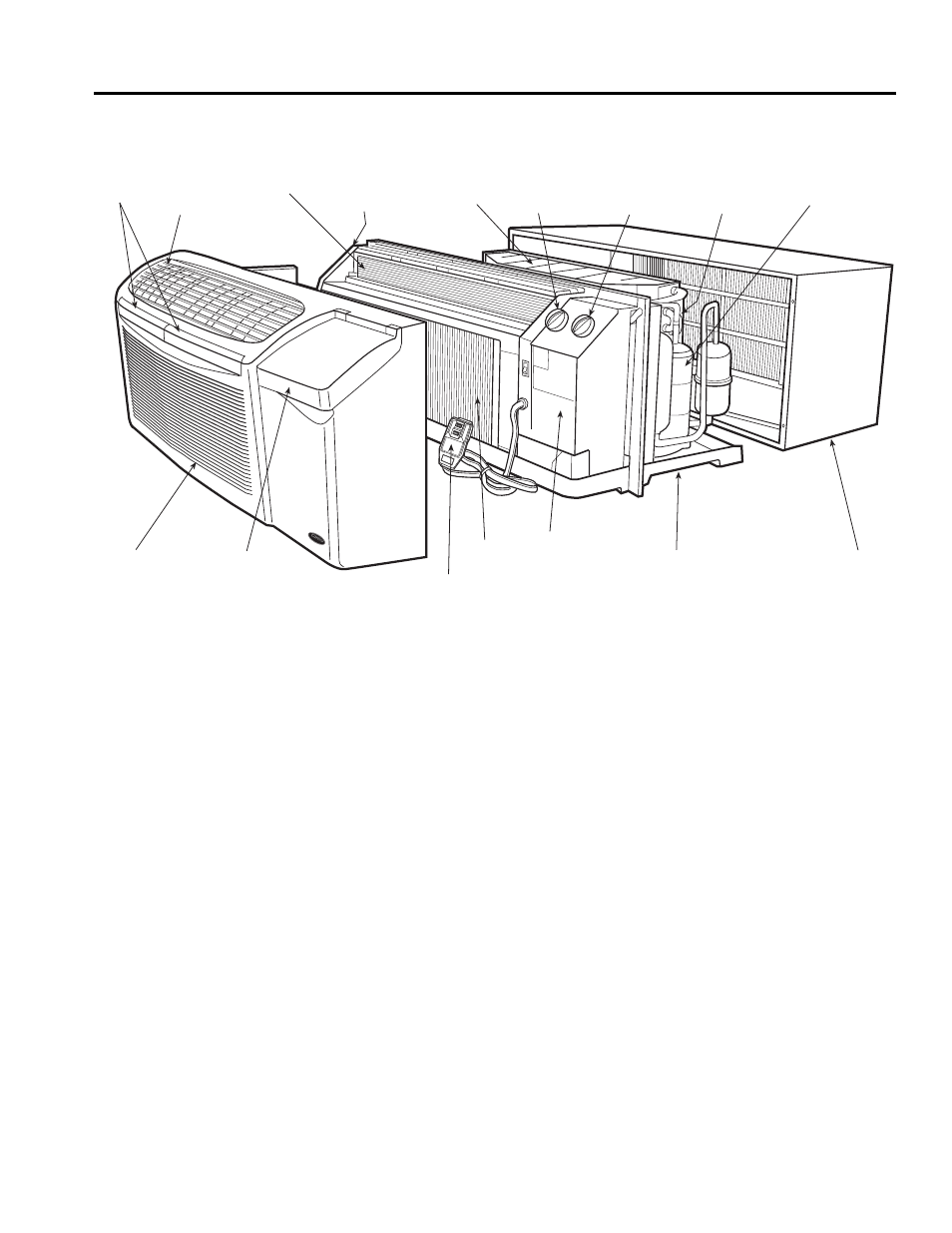

PRODUCT OVERVIEW (52P AND 52C)
COPPER TUBE
ALUMINUM
FIN COILS
DISCHARGE
GRILLE
WIRE SCREEN
LOUVERED
FRONT
PANEL
INDOOR
COIL
BASEPAN FOR
CONDENSATE
REMOVAL
2 AIR
FILTERS FRESH AIR
CONTROL
ARM ROTARY
COMPRESSORS
WALL
SLEEVE
ACCESS TO ELECTRICAL
COMPONENTS THROUGH
CONTROL BOX DOOR
CONTROL
DOOR
MODE
SELECTION
SWITCH THERMOSTAT WITH
TEMPERATURE
LIMITER 2-WAY BI-MOLDED
CONDENSER
SHROUD
1.P RES S R ESE T BU TTO N. 2.PL UG IN TO P OW ER RE CEP TAC LE. 3.PR ESS TES T BU TTO N U NIT SH OUL D LIG HT. 4. P RES S R ESE T BU TTO N AG AIN F OR U SE.
TESTING
DO NOT USE IS TEST ABOVE F AILS
PLUG TEST/
RESET BUTTONS
Polymer, Metal or Extended Wall Sleeve — Designed for rugged duty, acoustic absorption, and attractive appearance for years to
come.
Rotary Compressors — Provide quiet, reliable operation.
Copper Tube Aluminum Fin Coils — Enhanced coils provide durability, high performance, and ease of operation.
Fresh Air Control Arm — Allows outdoor air into room through vent filter for improved air quality.
Fan Cycle Switch — Dual options:
(1) Continuous fan operation.
(2) Cycle fan ON and OFF with compressor operation.
Thermostat with Temperature Limiter — Provides improved temperature control with a temperature limiter that allows tempera-
ture range restraints for the unit by making a simple adjustment.
Anti-Theft Knobs — Provides protection against theft of the thermostat knob and the mode selection knob.
Control Door — Provides protection for controls and enhances appearance.
Easy Access to Electrical Components — Simply remove two screws and drop down the control box door.
Improved Condensate Removal — Minimizes condensate water on outside of building.
New Two-Piece Filter Design — Provides improved air filtration and can be removed easily for cleaning.
Durable Discharge Grille — Made of polycarbonate; holds up under the toughest conditions.
Louvered Front Panel — Made of high impact polystyrene. Provides improved performance and quiet operation.
Mode Selection Switch — Rotary switch allows for easy selection of operating mode.
Bi-Molded Condenser Shroud — The two-piece condenser shroud allows easy access for service and maintenance to the out-
door coil and other components.
Power Cord Protection — Power cord for the 230/208-v unit provides power cord protection.
