40

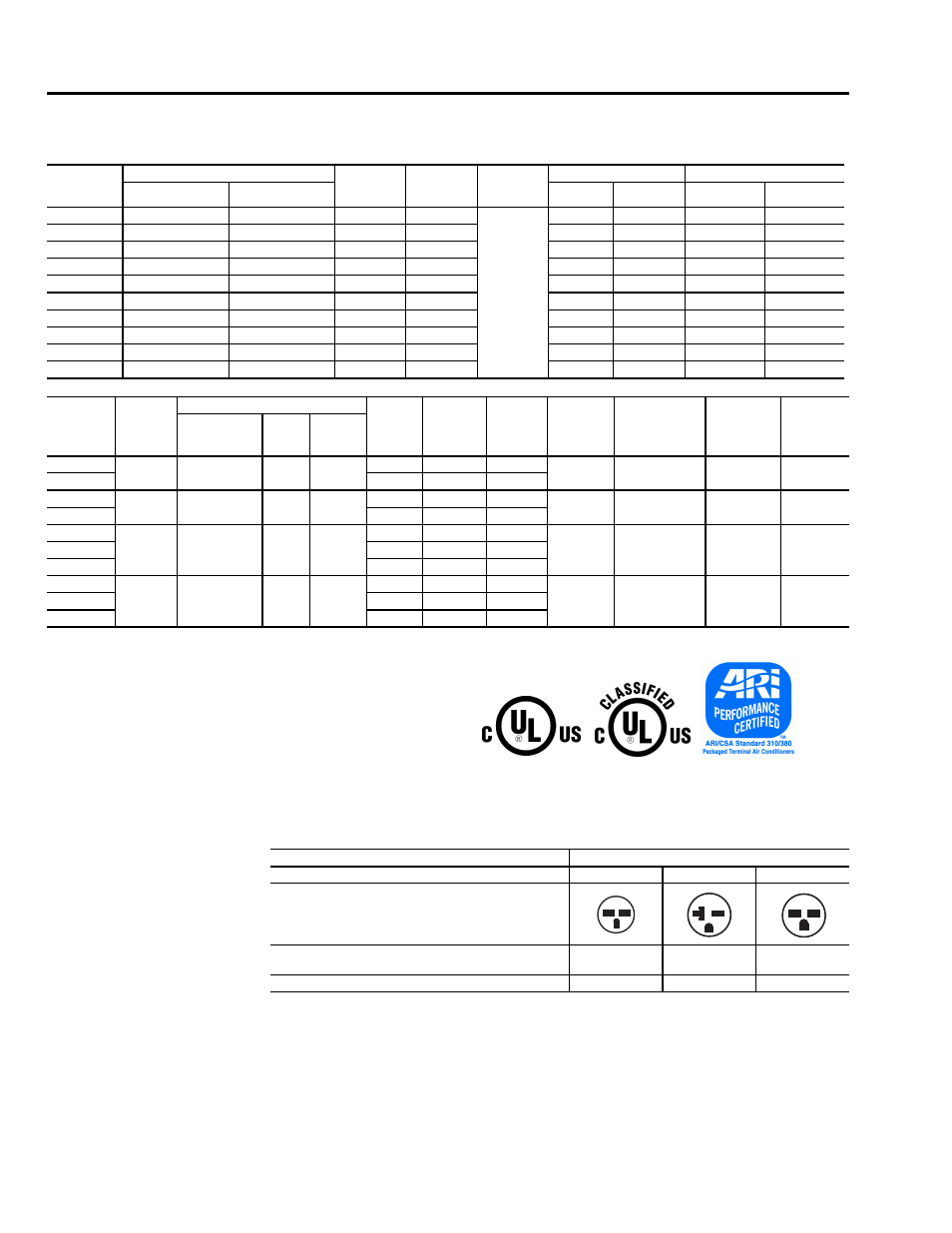

PERFORMANCE AND ELECTRICAL DATA
MODEL 52CE (230/208-1-60)
LEGEND
EER — Energy Efficiency Ratio
*Rated in accordance with ARI Standard 310-93.
†Electric resistance heater power and fan motor power.
**Fan motor indoor CFM (LO/HI) shown for 230-1-60 units.
RECEPTACLES AND FUSE TYPES
LEGEND
*May be used for 15-amp applications if fused for 15 amps.
MODEL
NUMBER
52CE
CAPACITY* (Btuh)
HEATER
kW
EER
VOLTAGE
RANGE
(Volts)
AMPS WATTS
Cooling Heating Cooling Heating† Cooling Heating
207---3 7,000/ 6,900 7,800/ 6,400 2.3 11.1/11.1
187-253
3.0/3.2 10.4/ 9.5 631/ 622 2393/1985
307---3 7,000/ 6,900 11,600/ 9,700 3.4 11.1/11.1 3.0/3.2 15.2/14.1 631/ 622 3493/2935
209---3 9,000/ 8,900 7,800/ 6,400 2.3 10.7/10.7 4.0/4.3 10.4/ 9.5 841/ 832 2393/1985
309---3 9,000/ 8,900 11,600/ 9,700 3.4 10.7/10.7 4.0/4.3 15.2/14.1 841/ 832 3493/2935
212---3 12,000/11,900 7,800/ 6,400 2.3 10.1/10.1 5.4/5.8 10.8/ 9.9 1188/1178 2470/2047
312---3 12,000/11,900 11,600/ 9,700 3.4 10.1/10.1 5.4/5.8 15.6/14.5 1188/1178 3570/2997
512---3 12,000/11,900 17,000/13,600 5.0 10.1/10.1 5.4/5.8 22.5/20.0 1188/1178 5170/4147
215---3 14,600/14,300 7,800/ 6,400 2.3 9.5/ 9.5 6.4/7.1 10.8/ 9.9 1537/1505 2470/2047
315---3 14,600/14,300 11,600/ 9,700 3.4 9.5/ 9.5 6.4/7.1 15.6/14.5 1537/1505 3570/2997
515---3 14,600/14,300 17,000/13,600 5.0 9.5/ 9.5 6.4/7.1 22.5/20.0 1537/1505 5170/4147
MODEL
NUMBER
52CE
POWER
FACTOR
(%)
FAN MOTOR MAX.
FUSE
SIZE
(Amps)
MIN.
CIRCUIT
AMPS
RECEP-
TACLE
TYPE
R-22
CHARGE
(oz)
DEHUMIDIFI-
CATION
(Pints/Hr)
SENSIBLE
HEAT
FACTOR
APPROX.
SHIP WT.
(lb)
Horsepower
Full
Load
Amps
Indoor
CFM
LO/HI**
207---3
100 0.075 0.44 220/260
15 13.0 A
21 1.5 0.78 125
307---3 20 19.0 B
209---3
99 0.075 0.44 220/260
15 13.0 A
28 2.4 0.73 125
309---3 20 19.0 B
212---3
99 0.125 0.75 270/350
15 13.3 A
29 3.4 0.71 140 312---3 20 19.3 B
512---3 30 27.9 C
215---3
95 0.125 0.75 270/350
15 13.3 A
32 4.8 0.66 150 315---3 20 19.3 B
515---3 30 27.9 C
New York City Department of Build-
ings, Material and Equipment Acceptance — MEA #242-04-E
UNIT NAMEPLATE VOLTAGE 230/208
OUTLET RATED VOLTS/AMPS 250/15 250/20 250/30
OUTLET BLADE CONFIGURATION
A B C
TIME DELAY FUSE OR HACR
CIRCUIT BREAKER (AMPS)
15 20* 30
HEATER (KILOWATTS) 2.3 3.4 5.0
HACR — Heating, Air Conditioning, and Refrigeration
NEMA — National Electrical Manufacturers Association
PRODUCT DATA (52C) (cont)
