Typical wall installation – Carrier Packaged Terminal s & Heat Pumps 52P User Manual
Page 29
29

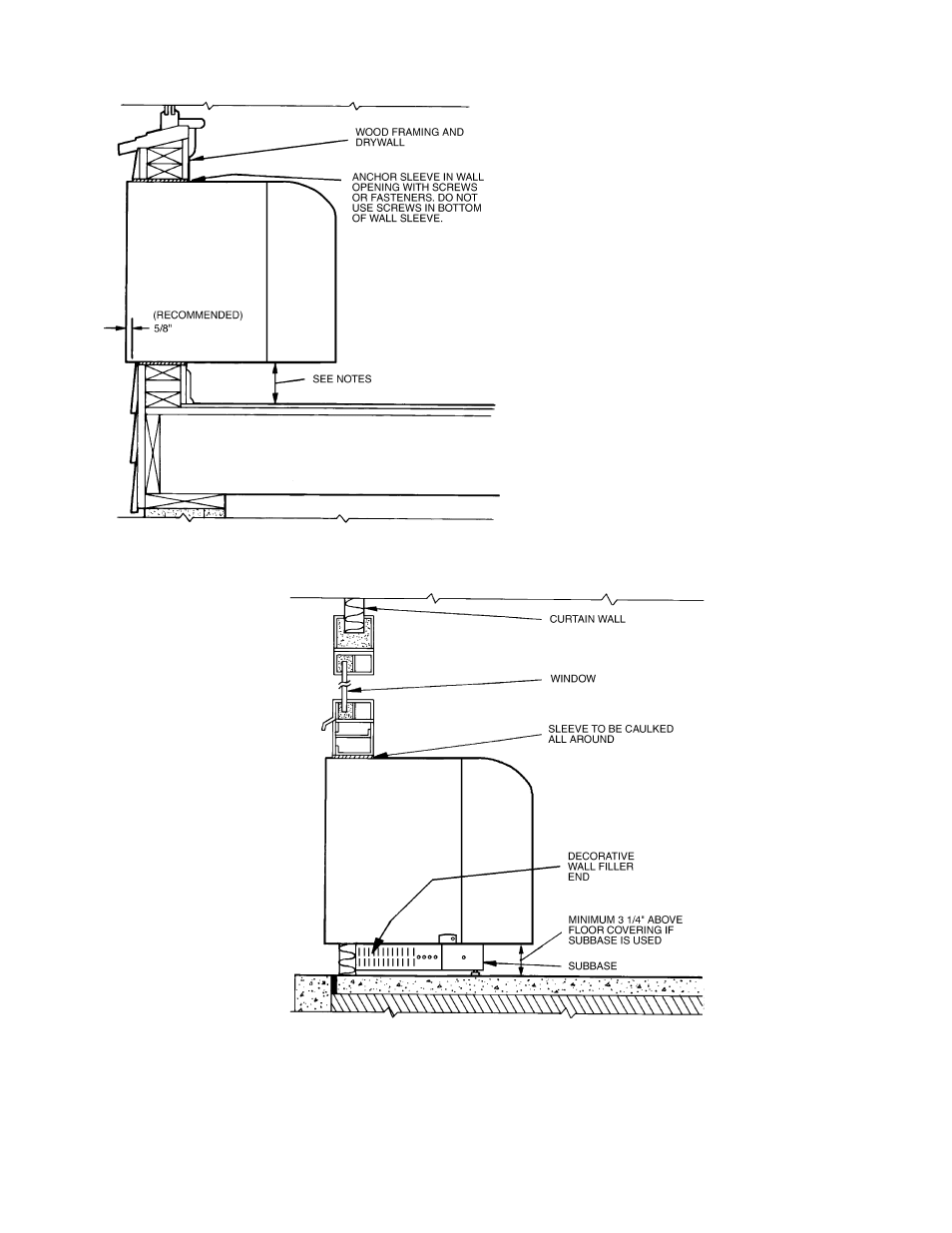

TYPICAL WALL INSTALLATION
NOTES:
1. Sleeve may be flush mounted to floor, but front panel may have
to be notched to accommodate service cord.
2. If more than 4 in. of sleeve projects into room, an accessory
subbase must be used for support.
3. For walls 2 in. thick or less, an accessory subbase must be
used for support.
4. Caulk around sleeve on both indoor and outdoor sides.
Typical Wall Sleeve Installation
Typical Curtain Wall Installation (All Models)
