Wall thermostat connections – Carrier Packaged Terminal s & Heat Pumps 52P User Manual
Page 33
33

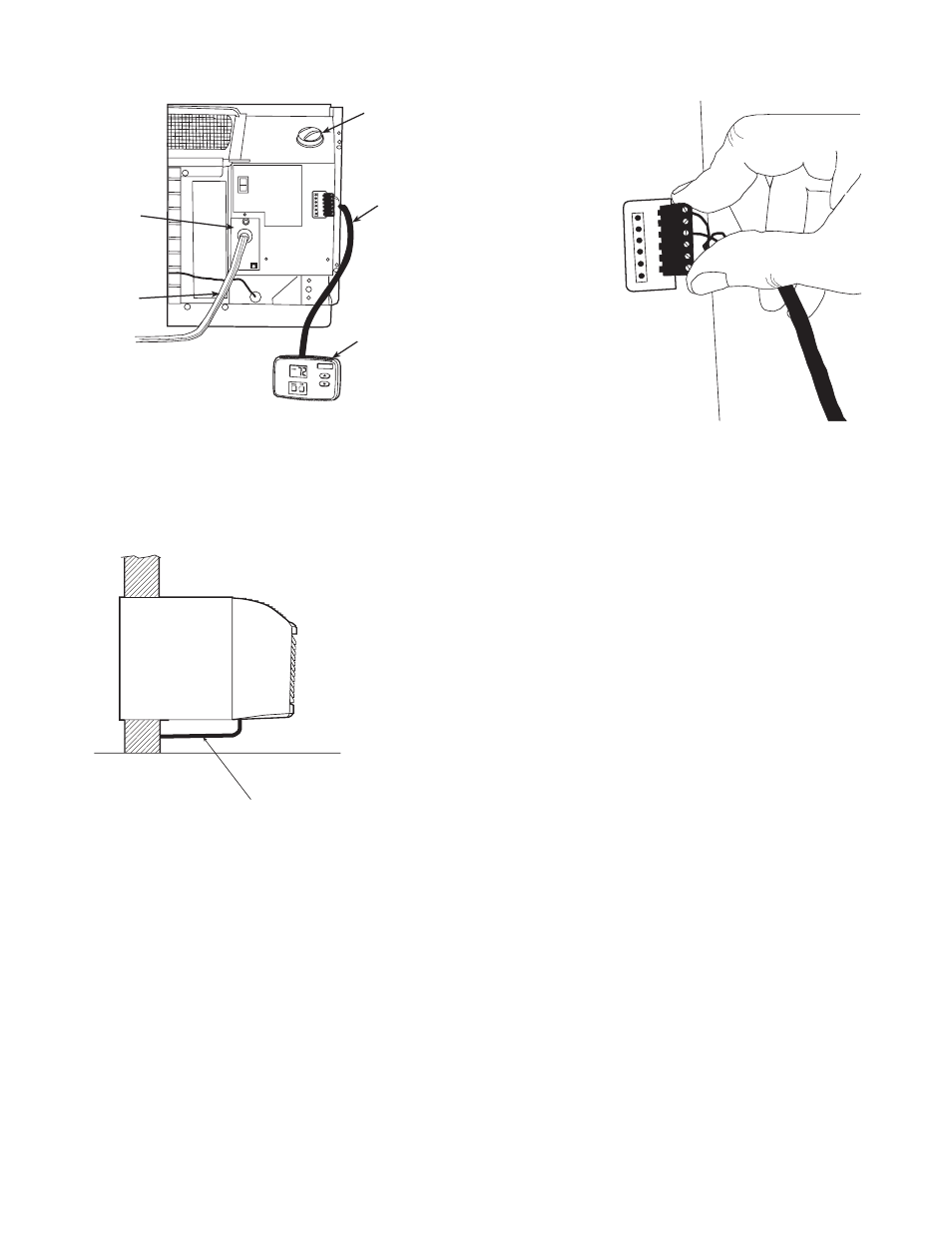

WALL THERMOSTAT CONNECTIONS
POWER
CORD
ACCESS
COVER
POWER
CORD
FAN SPEED
CONTROL
KNOB
THERMOSTAT
WIRE (FIELD-
SUPPLIED)
R
G
Y
W
O
C
THERMOSTAT
R
G
Y
W
O
C
THERMOSTAT WIRE ROUTING (UNDER
SLEEVE, BEHIND FRONT PANEL)
Control Box Wire Terminal for
Wall Thermostat Models
Terminal Connector
Removal and Replacement
Terminal Wire Routing
NOTE: Thermostat wire is field supplied. Recommended wire gage is
18 to 20 gage solid thermostat wire. Thermostat wire should always be
routed around or under, NEVER through, the wall sleeve. The wire
should then be routed behind the front panel to the easily accessible
terminal connector.
