31

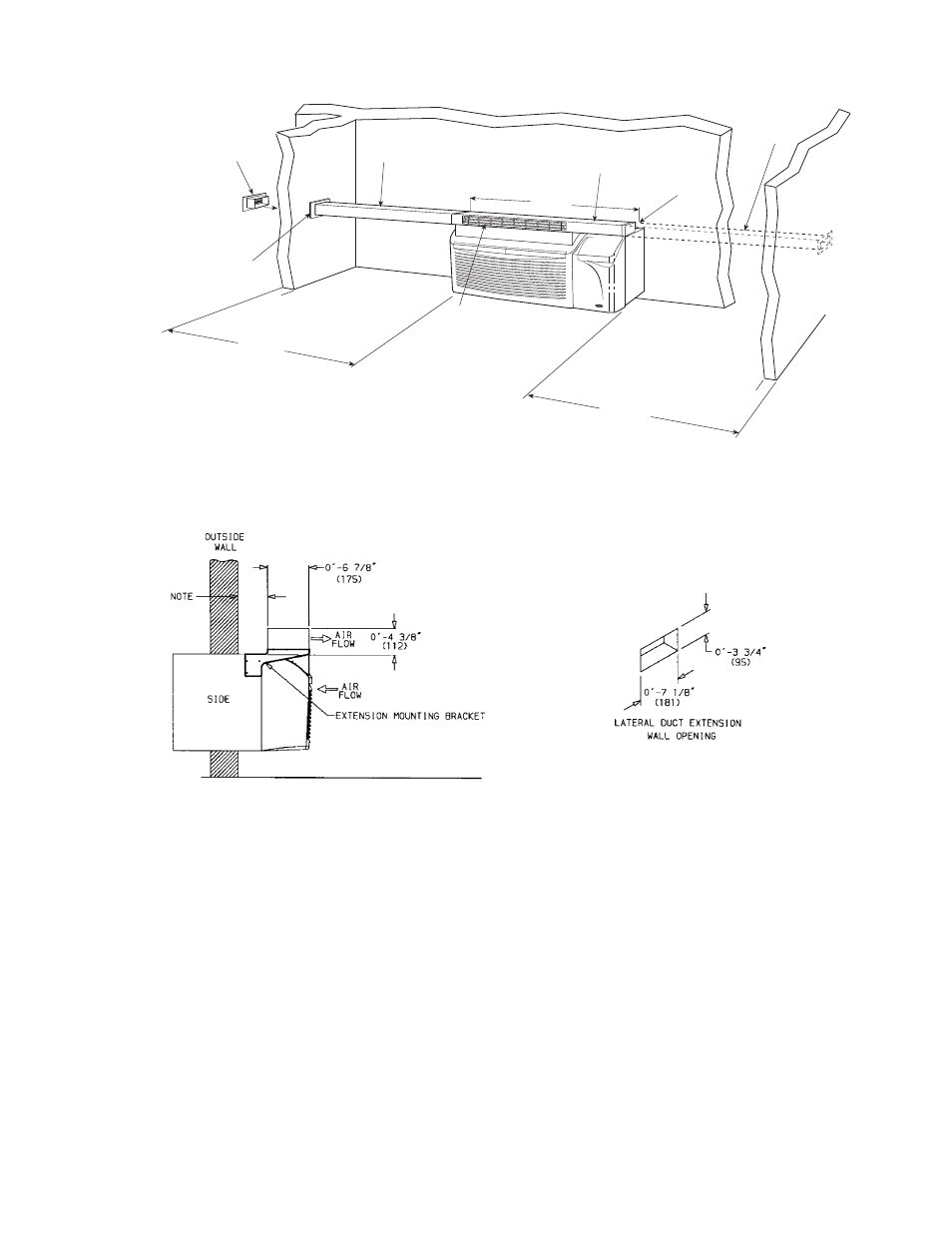

TYPICAL LATERAL DUCT INSTALLATION
3’-11 1/2”
(1206.5)
MAX.
3’-11 1/2”
(1206.5)
MAX.
3’-8”
(117.6)
WALL
MOLDING
WALL
REGISTER LATERAL DUCT
EXTENSION
REVERSIBLE
AIR GRILLE
PLENUM
END
CAP
ALTERNATE
EXTENSION
POSITION*
NOTE: For all applications with an accessory lateral duct, sleeve
must extend into the room a minimum of 3 inches. In applications
where the sleeve will not extend a minimum of 3 in., the lateral duct
mounting brackets will need to be mounted on the sleeve prior to
installation to the wall.
52P and 52C Lateral Duct
*Only one Lateral Duct Extension may be installed per
unit. Lateral duct extensions may be installed on either
side of the unit.
