HEAT PUMP ENERGY
SAVINGS
CARRIER HEAT PUMP INITIAL COST VERSUS SAVINGS OVER HEAT/COOL MODELS
LEGEND
*Computer projections based on full cooling load at 95 F. Sav-
ings projected for 230 v ratings.
1
Heating load is 5,000 Btuh at winter design point temperature.
2
Heating load is 10,000 Btuh at winter design point temperature.
3
Heating load is 15,000 Btuh at winter design point temperature.
For precise energy savings in your geographical location, go to www.lodgingAC.com to
use Carrier’s energy calculator.
ZONE
ELECTRIC
COST/kWH
7000 BTUH
1
COOLING
CAPACITY
$60
PREMIUM
9000 BTUH
2
COOLING
CAPACITY
$75
PREMIUM
12000 BTUH
2
COOLING
CAPACITY
$90
PREMIUM
15000 BTUH
3
COOLING
CAPACITY
$110
PREMIUM
Annual
Savings*
Payback
in Months
Annual
Savings*
Payback
in Months
Annual
Savings*
Payback
in Months
Annual
Savings*
Payback
in Months
I
$.06
$ 34.26
21
$ 43.08
21
$ 58.20
19
$ 68.34
19
$.08
$ 45.68
16
$ 57.44
16
$ 77.60
14
$ 91.12
14
$.10
$ 57.10
13
$ 71.80
13
$ 97.00
11
$113.90
12
II
$.06
$ 57.12
13
$ 71.76
13
$ 96.96
11
$113.64
12
$.08
$ 76.16
9
$ 95.68
9
$129.28
8
$151.52
9
$.10
$ 95.20
8
$119.60
8
$161.60
7
$189.40
7
III
$.06
$ 58.02
12
$ 72.84
12
$ 98.40
11
$115.38
11
$.08
$ 77.36
9
$ 97.12
9
$131.20
8
$153.84
9
$.10
$ 96.70
7
$121.40
7
$164.00
7
$192.30
7
IV
$.06
$ 82.02
9
$103.02
9
$139.14
8
$163.14
8
$.08
$109.36
7
$137.36
7
$185.52
6
$217.52
6
$.10
$136.70
5
$171.70
5
$231.90
5
$271.90
5
$.12
$164.04
4
$206.04
4
$278.28
4
$326.28
4
$.14
$191.38
4
$240.38
4
$324.66
3
$380.66
3
$.16
$218.72
3
$274.72
3
$371.04
3
$435.04
3
V
$.06
$ 57.36
13
$ 71.94
13
$ 97.26
11
$113.94
12
$.08
$ 76.48
9
$ 95.92
9
$129.68
8
$151.92
9
$.10
$ 95.60
8
$119.90
8
$162.10
7
$189.90
7
$.12
$114.72
6
$143.88
6
$194.52
6
$227.88
6
$.14
$133.84
5
$167.86
5
$272.33
4
$265.86
5
VI
$.06
$ 93.72
8
$117.66
8
$159.00
7
$186.48
7
$.08
$124.96
6
$156.88
6
$212.00
5
$248.64
5
$.10
$156.20
5
$196.10
5
$265.00
4
$310.80
4
$.12
$187.44
4
$235.32
4
$318.00
3
$372.96
4
kWH — Kilowatt Hour
ZONE V
ZONE IV
ZONE III
II
ZONE I
V
ZONE
VI
ZONE II
Heat pumps save more on operat-
ing costs during the heating cycle
than heat/cool models. The table
below shows that the higher initial
cost of purchasing a heat pump is
quickly made up in lower operating
costs.

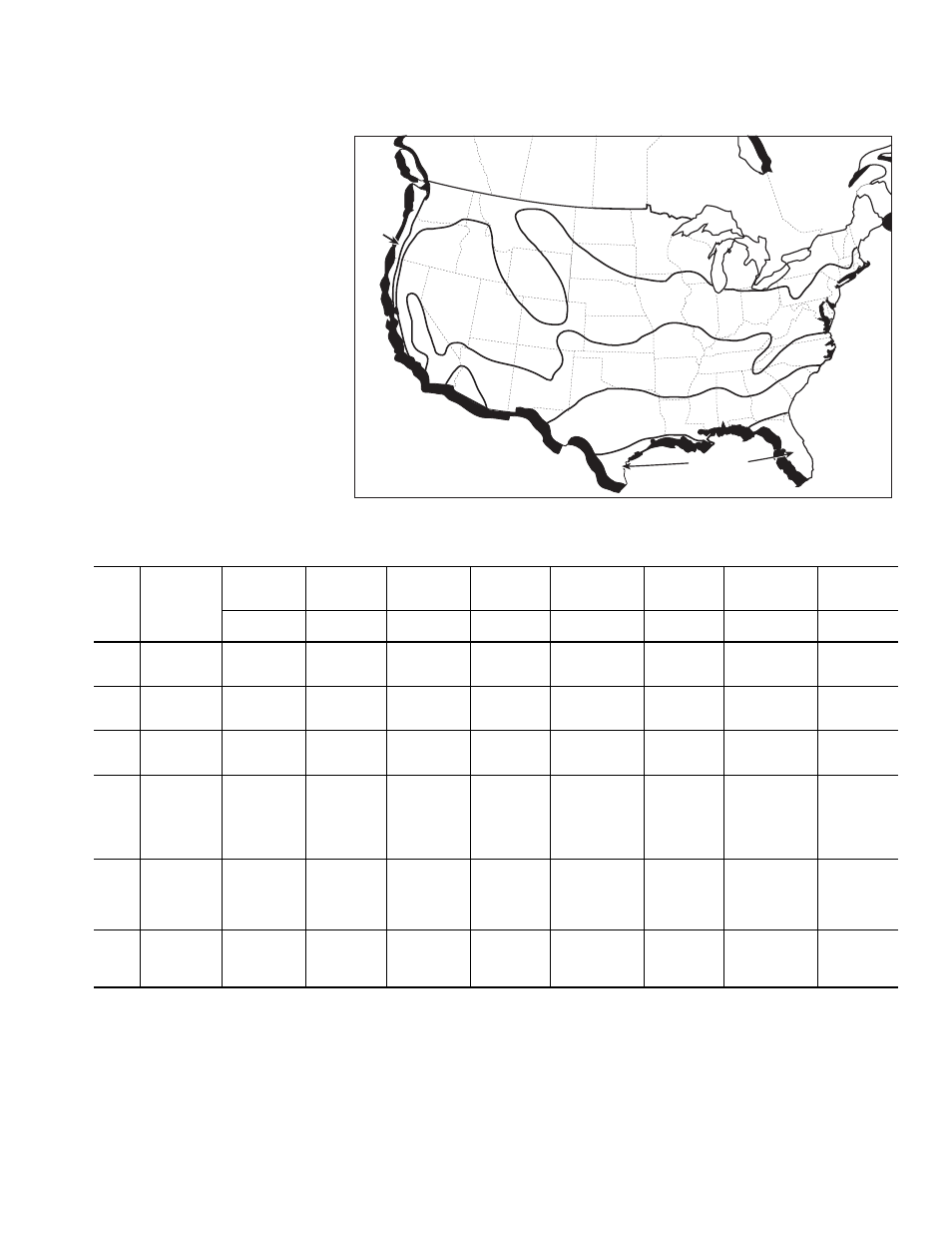

Use the map to identify the climate
zone’s designated number. Reading
down the left-hand column of the
table, select the cost/kWh rate in
this zone that most closely approxi-
mates your local rate. The approxi-
mated savings and payback period
is found at the intersection of your
zone/rate line and the desired Btuh
Cooling Capacity column. Exact
savings are determined by lifestyle,
local electrical rates, and climatic
conditions.
