Nomenclature

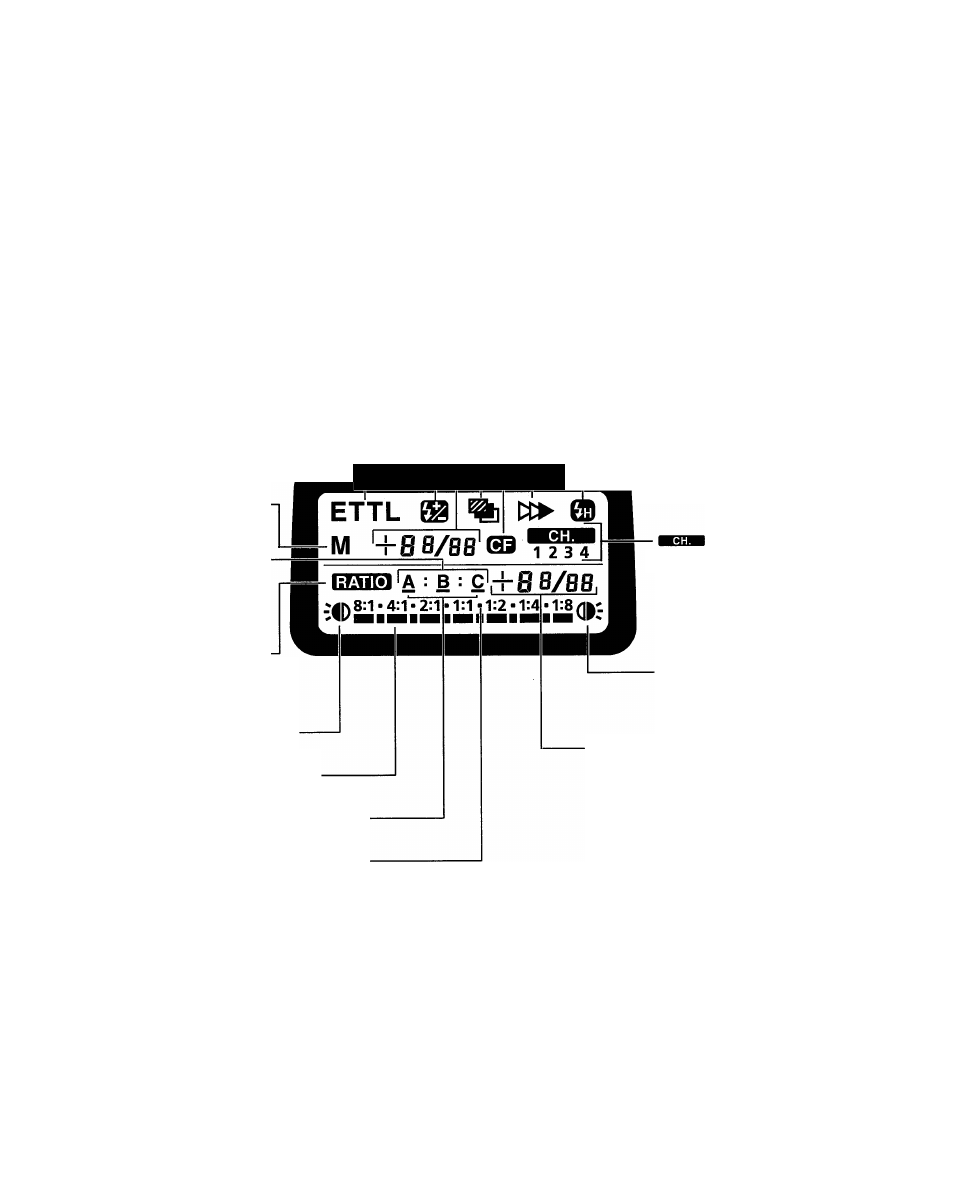

LCD Panel

Flash exposure compensation----------
(-3 to +3 stops)
FEB amount (-3 to +3 stops)
Manual flash output level (1/1 -1/64)

Flash exposure compensation icon -

ETTL

E-TTL autoflash icon-

TTL

TTL autoflash icon —

FEB icon

- 03 Custom

Function icon

- 2nd-curtain

sync icon

FP flash icon

Manual flash icon—

Flash tube ID (A/B)

Slave ID (C)

EEQEl-

Flash ratio control icon

-:c

Flash tube A firing icon

Flash ratio scale segment

A/B/C manual flash indicator bar

Flash ratio scale (8:1 -1:1 -1:8)

MACRO R NG Llj E MR- 4EX

Channel No. (1 - 4)

013

Flash tube B

firing icon

FEB status (Fb-1 to 3)

SLAVE C flash exposure
compensation amount

(-3 to -1-3 stops)

/VB/C manual flash output

(1/1 to 1/64)
Custom Function No./setting
(FI -7, 0, 1)

’ The LCD panel is shown with all the icons and indications displayed. The items

actually displayed differ depending on the flash settings.
