Attaching the Control Unit to the Camera

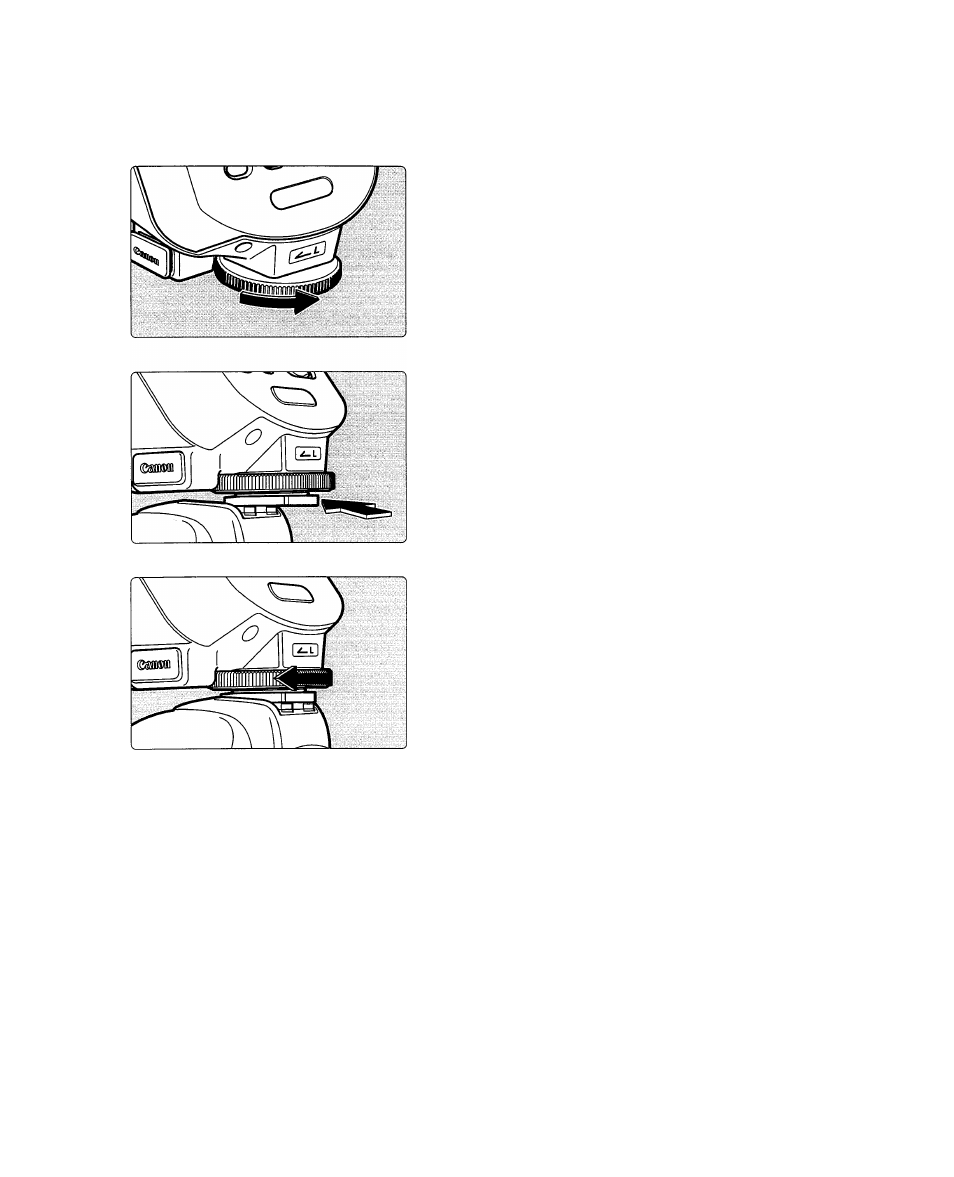

Loosen the locking collar by

turning it as shown by the arrow.

Slip the Control Unit’s mounting

foot into the camera’s hot shoe aii
the way.

Turn the iocking collar as shown

by the arrow and tighten.

► The mounting foot’s locking pin will

also extend into the hot shoe.

•To detach the Control Unit, turn the

locking collar in the opposite direction
until it stops. (The locking pin retracts
into the mounting foot.) Then slip it
off the hot shoe.

O The hot shoe on the EOS 650, 620, 750i and 850 does not have a locking pin

hole. Although the MR-14EX can still be mounted on these cameras, be careful
not to have it slip off the hot shoe.
