7. INSTALLING TO THE ENGINE

CAUTION

■ Take care not to over tighten the Banjo Bolts when installing the hose to the engine. Excessive

force can break/damage the screw and threads. If the screw is broken and or damaged, the .
engine will have to be removed to repair the damage.

7-1 Installing the Outlet Pipe.

Install the outlet pipe the front and rear of the installed turbocharger.

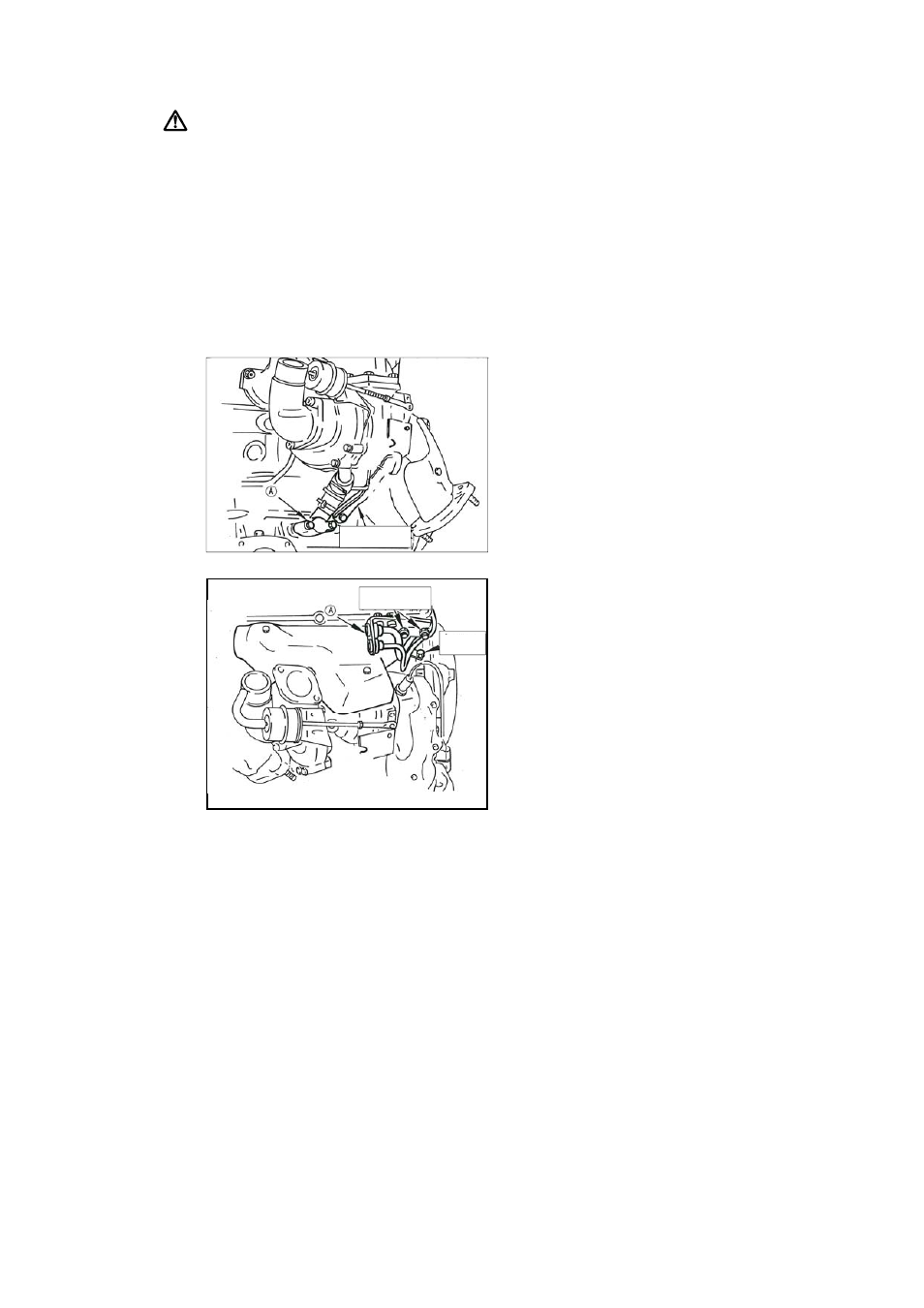

7-2 Installing the Rear Turbocharger.

① Leave the turbocharger under the engine bay.

Raise the Turbocharger to install with the nuts.

Install the bracket.

Connect Tube A to the Cylinder Block.

Connect the Rear Oil Inlet Hose & Rear Water
Line Inlet Hose.

Install the Exhaust Manifold Cover.

Install Tube A.

Bracket

Nut (2)

Bolt

28

Bolt

28
