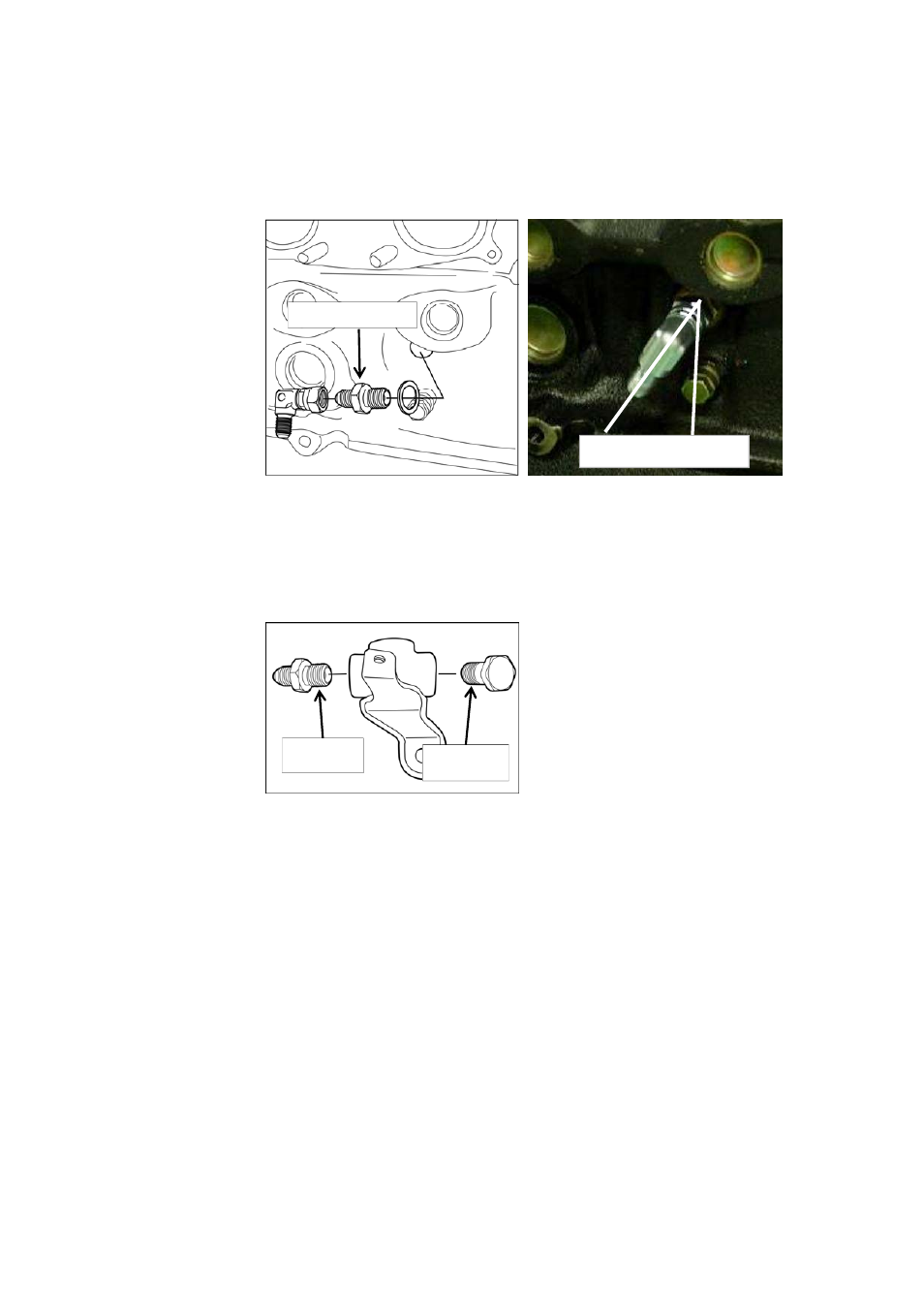

3-2 PREPARING THE REAR WATER INLET (ENGINE SIDE)
1. The water feed tube connector is removed from the engine.
2. Remove the stock Water Feed Tube. (Do not re-use)
3. Install the Copper Washer (Part Number ③-2), Water Line Inlet (Part Number ③-6)
and Elbow (Part Number ③-5).
※Make sure that the angle is at about 45 degrees from the down position.
3-3 PREPARING THE FRONT WATER OUTLET (ENGINE SIDE)
1. Remove the stock water tube pipe from the water connector. (Do not reuse)
2. Install the Water Return Line (Part Number ④-6).
3. Install the Water Line Blind Bolt (Part Number ④-7).
Approximately 45°
T=23.5N・m (2.4kgm)
24
T=31.4N・m
(3.2kgm)
T=31.4N・m
(3.2kgm)
