1. REMOVAL OF THE STOCK TURBINES.

Disconnect the car battery's negative terminal. Then follow the Nissan service manual to remove the stock turbine.

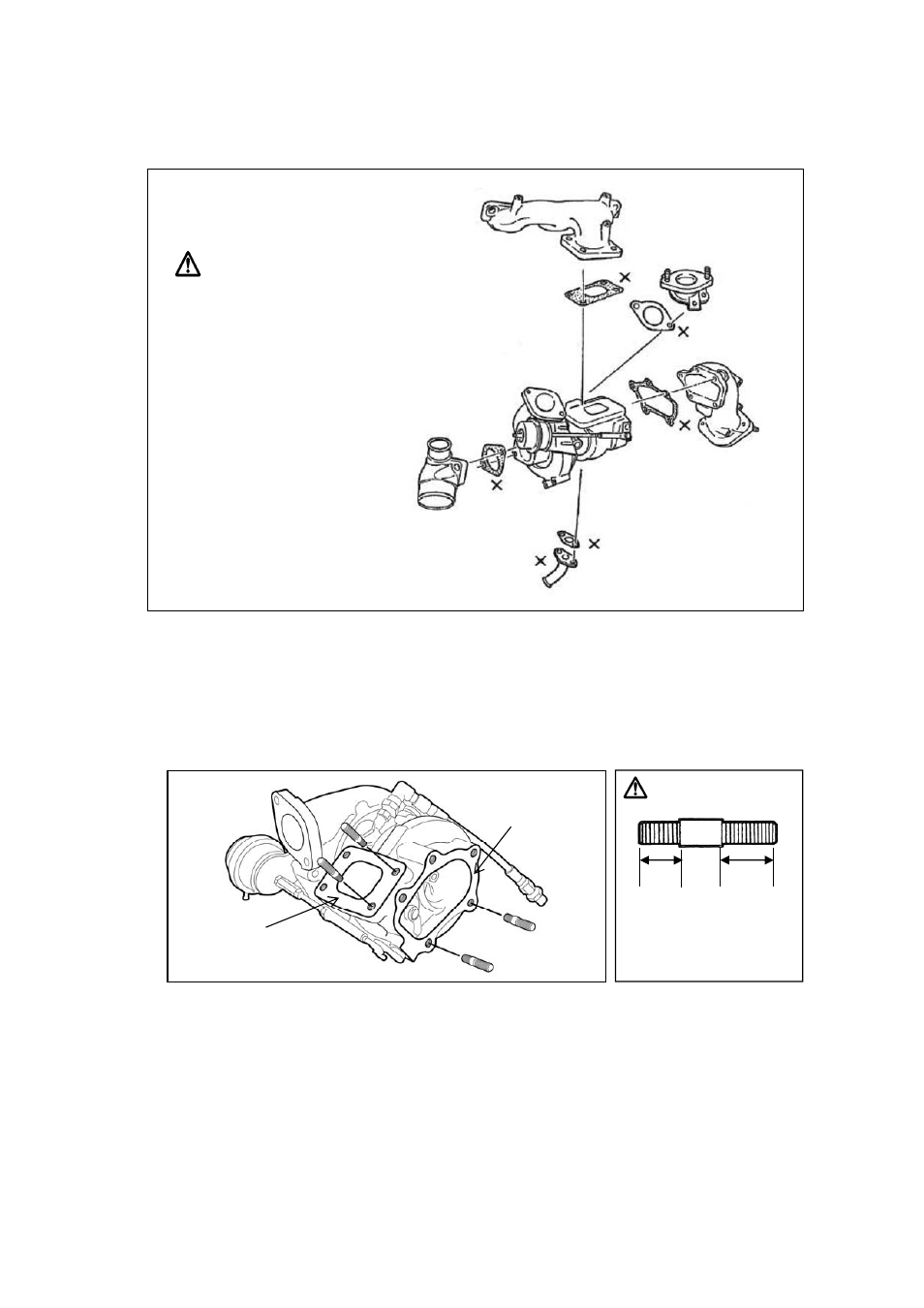

The illustration below shows the parts (marked with an "x") that should NOT be reused.

To save time and to avoid mistakes,
make notes on where each part

belongs for the parts that you will reuse.

CAUTION

(X Marks the parts that

should NOT be reused)

22

2. INSTALLING THE STUD BOLTS

(1)

Stud Bolt Installation.
Fit the ARMS Turbo Stud Bolt (Part Number⑧-6).



* Shorter one for the turbine side.
* Use the double nut method for

the installation.

* When removing the nut, take

care not to move the bolt.

Pay attention to the
stud bolts direction

Short

Long

4 Bolts

5 Bolts
