3. INSTALLATION TO THE ENGINE & EXTRAS

Take care with the direction of the bolts and parts during installation. If the installation was not done
correctly, cooling and lubrication problems will arise which can lead to turbo failure and a possible fire hazard.

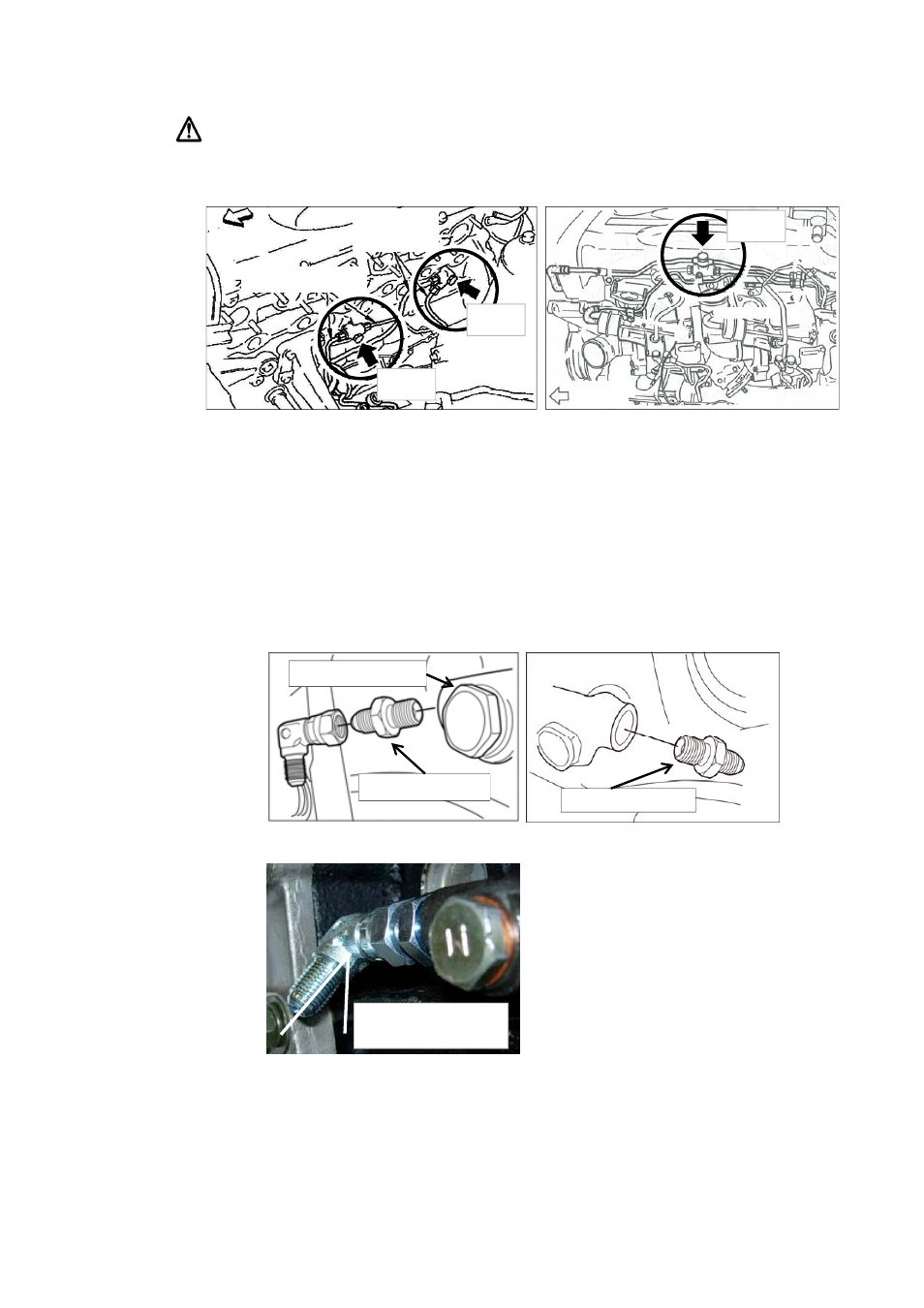

3-1 FRONT REAR OIL INLET PREPARATION (ENGINE SIDE)

1. Remove the Oil Feed Tube Connector from the engine.
2. Remove the oil feed tube from the stock Turbos connector. (Do NOT reuse). ).
3. Install the oil line inlet directly onto the front/rear side of the connector.

(Part Numbers ⑤-7/⑥-6).

4. Install the elbow onto the front side. (Part Number ⑤-6)

※Make sure that it angles downwards at about 30 degrees.

5.

Fit the copper washer (Part Number 5-2) and re-use the original stock bolt,
then install the oil feed connector.

CAUTION

3-1

3-2

3-3

T 19 6N

(2 0k

)

FRONT

WATER
FEED TUBE

OIL FEED TUBE

FRONT

23

FRONT

REAR

Approximately

30°

T=23.5N・m (2.4kgm)

T=23.5N・m (2.4kgm)

T=19.6N・m (2.0kgm)

23
