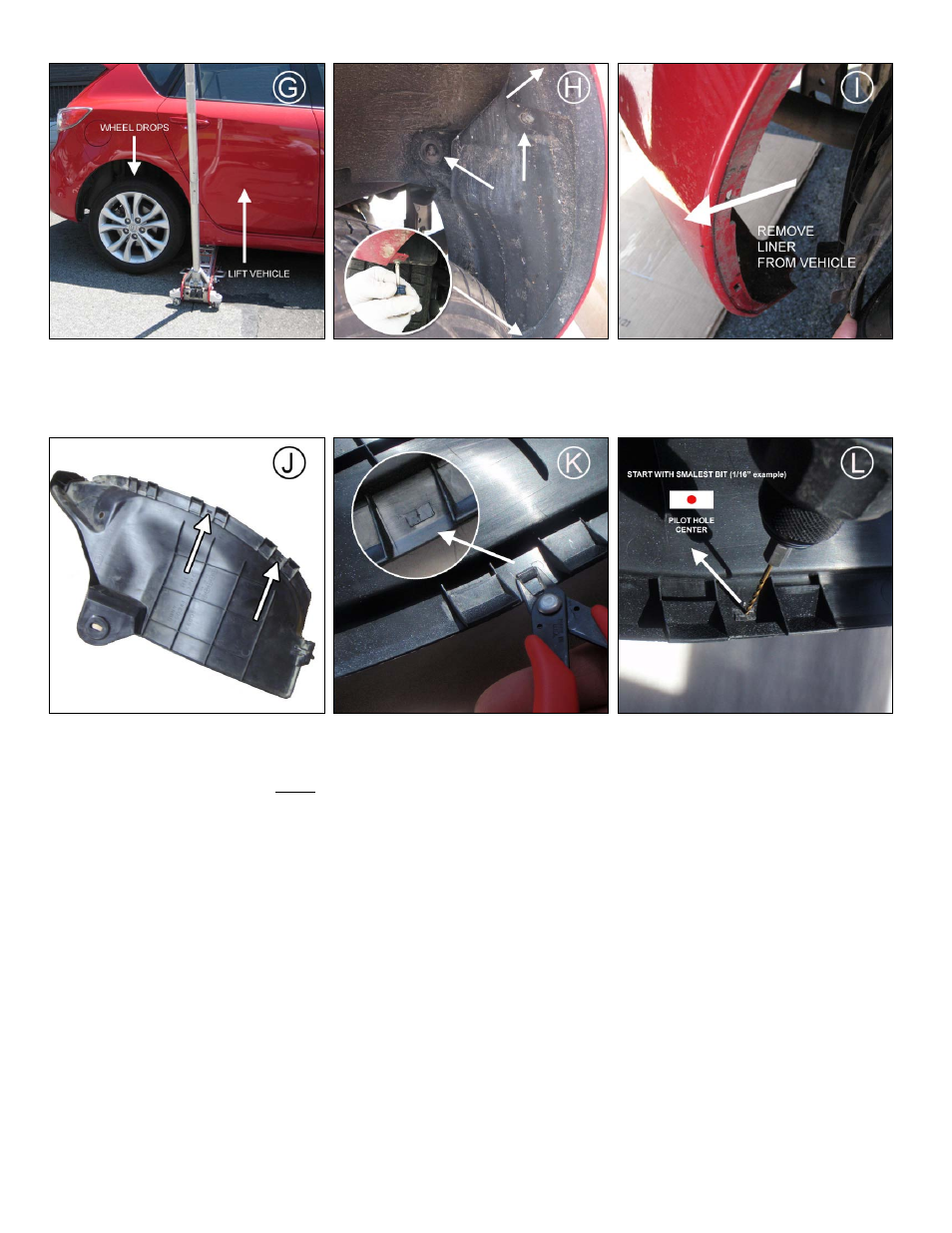

• (Figure J) Locate the two lower notches between the mounting tabs on liner.
• (Figure K) Carefully snip or trim off the both notches to a flat surface.
• (Figure L) Drill a small pilot hole exactly center of the rectangle left behind from the notch using a small bit (1/16” for example).
• (Figure M) Gradually enlarge the holes with a slightly bigger bit at a time until 1/4" hole is achieved.
• (Figure N) Remount modified liner on vehicle. Confirm mounting holes on bumper are visible through liner holes created.
• (Figure O) Place polygon clip over round mounting hole on bracket.
