IMF17
Version 1.0 Release Date 5.28.2010
2

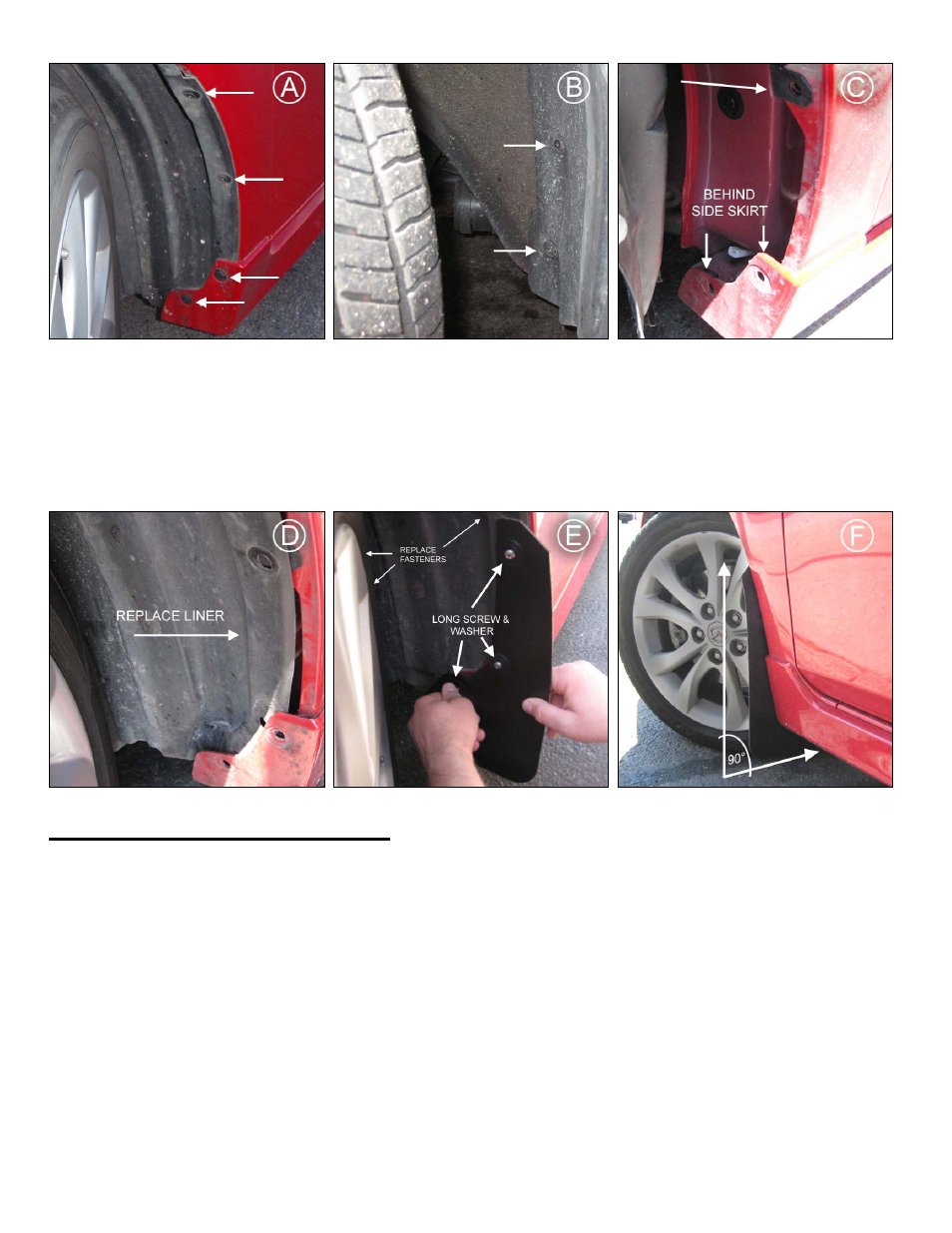

• (Figure D) Replace liner. Confirm clips are visible through the mounting holes. Adjust clip with tip of screw or small pick if required.
• (Figure E) Position the front mud flap with logo facing the rear of the vehicle. Using a long screw (1.5SS) and a washer (Wash), loosely
bolt the mud flap to each 3 mounting points. Remount unused fender liner fasteners. Do not fully tighten mounting points.
• (Figure F) Align outer edge of the flap by incrementally adjusting the side to side, lower/upper portion of the flap and walking away
from the vehicle until the flap is perpendicular to even ground. Tighten all mounting screws only until snug against washer. Do not
over tighten.
Rear Mud Flap Installation
• (Figure G) Removal of rear wheel is not necessary but can ease installation. Jack up the rear of the vehicle enough to lower the tire
and enable access to the rear wheel well area.
• (Figure H) Remove the rear wheel fender liner fasteners and lower bolt underneath the liner.
• (Figure I) Remove liner from vehicle.
